LD Systems M G2 IK 2 W - Inštalačná sada pre stĺpiky MAUI G2 (výklopný a otočný nástenný držiak) biela
Sada pre inštalácia a zameranie stĺpov MAUI. Je vybavená tenkou konzolou stĺpika, ktorú je možné pripevniť na nástenný držiak a otáčať o 160 °.Maximálne naklonenie nadol o 22 ° (LDMAUI11G2) alebo 12 ° (LDMAUI28G2) pre presnú, nastaviteľnú horizontálnu a vertikálnu orientáciu. Sú vyrobené z ocele, v čiernom (LDMG2IK2) alebo bielom (LDMG2IK2W) práškovom lakovaní. Súprava tiež obsahuje dva adaptéry pre multipin konektory, na pripojenie stĺpika a podstavca.
Max.záťaž 12 kg
Hmotnosť 3,8 kg

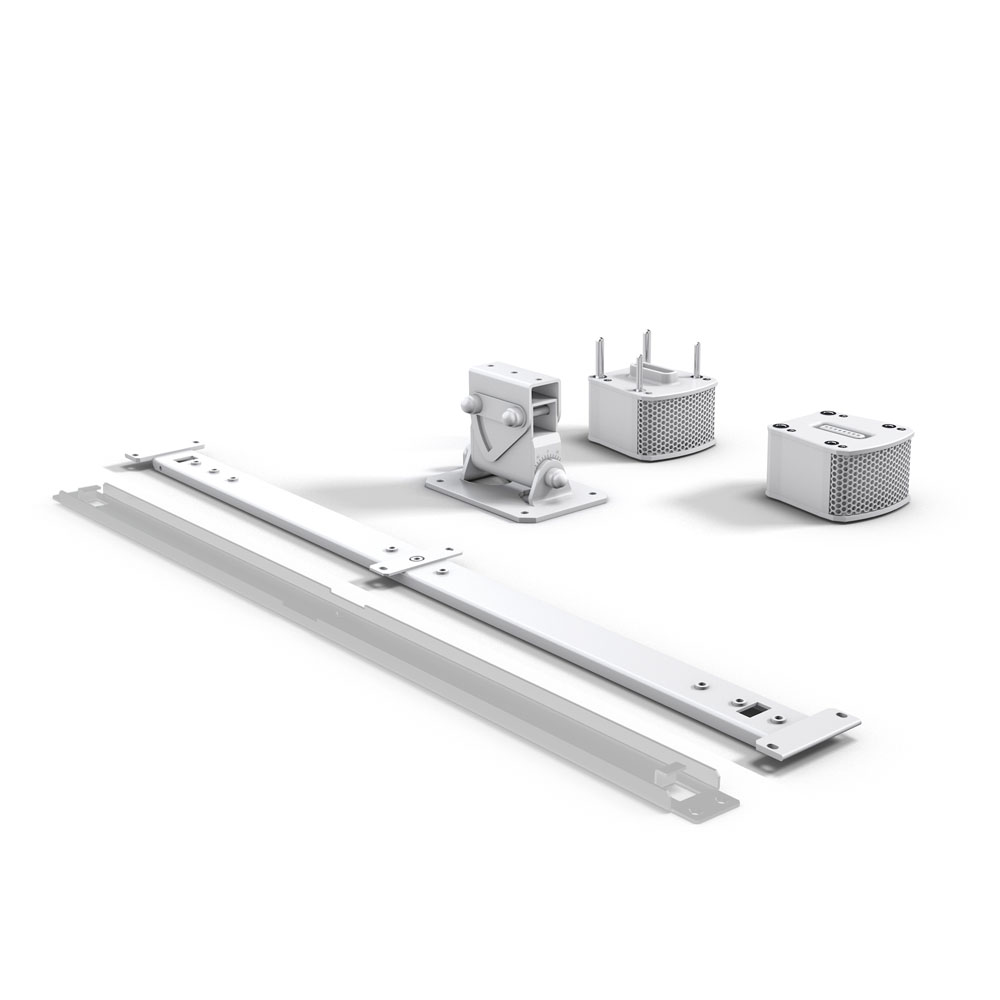

Installing and aiming MAUI columns is a cakewalk with this kit. It features a slim column bracket that bolts to a wall mount providing 160° swivel and 22° (LDMAUI11G2) or 12° (LDMAUI28G2) maximum down tilt for precise, adjustable horizontal and vertical orientation. They are made of heavy-gauge steel and available in black (LDMG2IK2) or white (LDMG2IK2W) powder coating finish. The kit also includes two adapters for the system’s multipin connectors which provide loudspeaker and terminal block connectors to hook up the column and sub....Sada pre inštalácia a zameranie stĺpov MAUI. Je vybavená tenkou konzolou stĺpika, ktorú je možné pripevniť na nástenný držiak a otáčať o 160 °.Maximálne naklonenie nadol o 22 ° (LDMAUI11G2) alebo 12 ° (LDMAUI28G2) pre presnú, nastaviteľnú horizontálnu a vertikálnu orientáciu. Sú vyrobené z ocele, v čiernom (LDMG2IK2) alebo bielom (LDMG2IK2W) práškovom lakovaní. Súprava tiež obsahuje dva adaptéry pre multipin konektory, na pripojenie stĺpika a podstavca.
Max.záťaž 12 kg
Hmotnosť 3,8 kg
Installing and aiming MAUI columns is a cakewalk with this kit. It features a slim column bracket that bolts to a wall mount providing 160° swivel and 22° (LDMAUI11G2) or 12° (LDMAUI28G2) maximum down tilt for precise, adjustable horizontal and vertical orientation. They are made of heavy-gauge steel and available in black (LDMG2IK2) or white (LDMG2IK2W) powder coating finish. The kit also includes two adapters for the system’s multipin connectors which provide loudspeaker and terminal block connectors to hook up the column and sub.
VIAC
4049521214196-LDMG2IK2W_7|4049521214196-LDMG2IK2W_1|4049521214196-LDMG2IK2W_9|4049521214196-LDMG2IK2W_10|4049521214196-LDMG2IK2W_8|4049521214196-LDMG2IK2W_5|4049521214196-LDMG2IK2W_4|4049521214196-LDMG2IK2W_2|4049521214196-LDMG2IK2W_6|4049521214196-LDMG2IK2W_3
![]()
Product typePA Loudspeakers AccessoriesTypeWall bracketWeight3,8 kgMaterial Wall Mount BracketSteelSurface Wall Mount BracketPowder coatedColour Wall Mount BracketwhiteMar. Load Wall Mount Bracket12 kgDimensions Wall Mount Bracket (W x H x D)75mm x 810mm x 135mmWeight Wall Mount Bracket2.6 kgFeatures Column AdapterM20 Thread, Speakon compatible, Terminal Block ConnectorMaterial Column AdapterAluminumSurface Column AdapterPowder coatedColour Column AdapterwhiteDimensions Column Adapter (B x H x T)100mm x 65mm x 105mmWeight Column Adapter0.7 kgFeatures Subwoofer AdapterSpeakon compatible, Terminal Block ConnectorMaterial SubwooferadapterAluminumSubface Subwoofer AdapterPowder coatedColour Subwoofer AdapterBlackDimensions Subwoofer Adapter (W x H x D)100mm x 105mm x 105mmWeight Subwoofer Adapter0.5 kgColour Terminal Block ConnectorgreenFeatures Terminal Block Connector4 poleQuantity Terminal Block Connector2 pcs.
