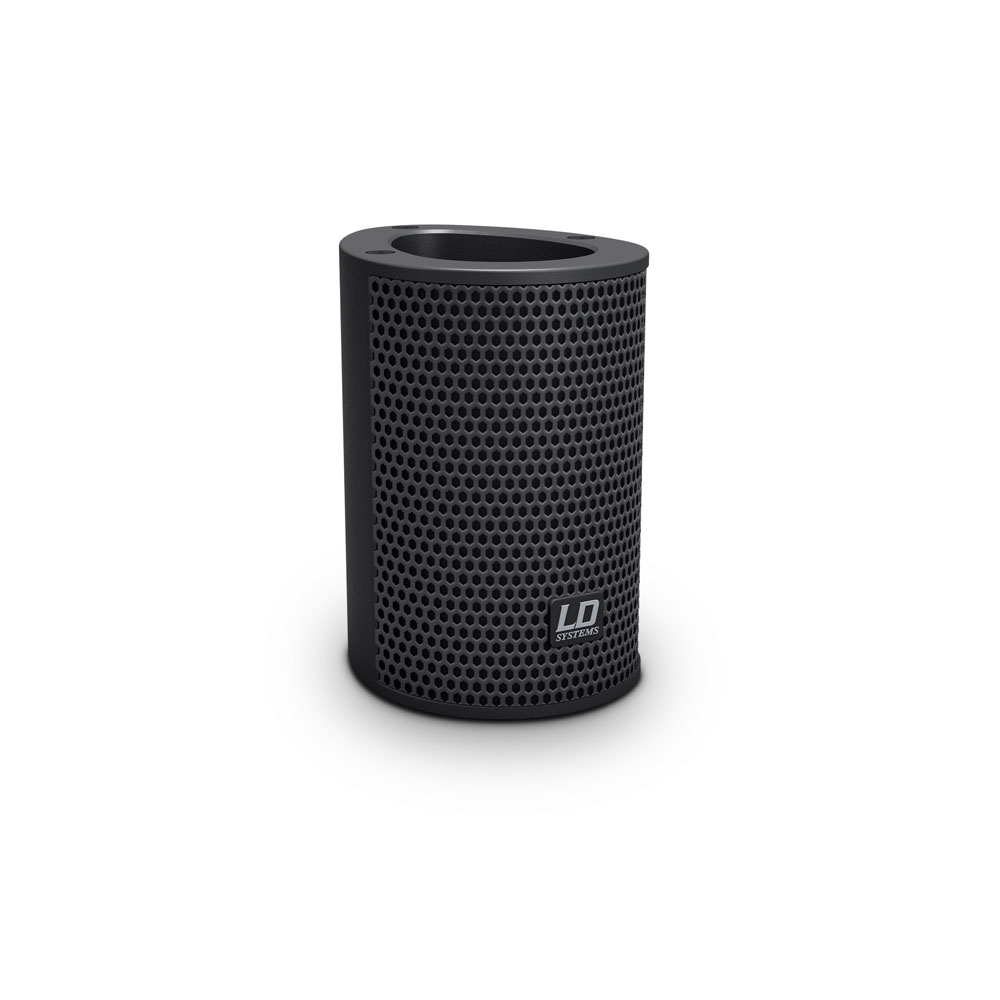

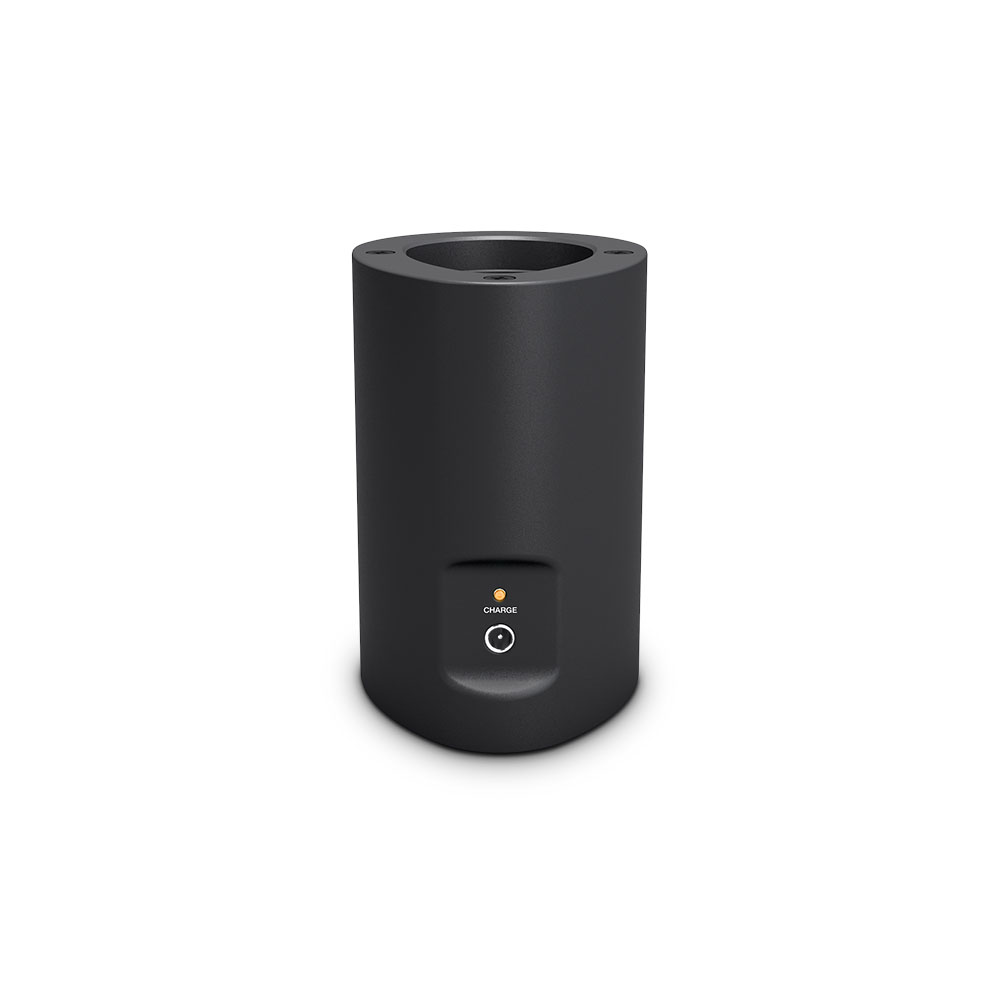

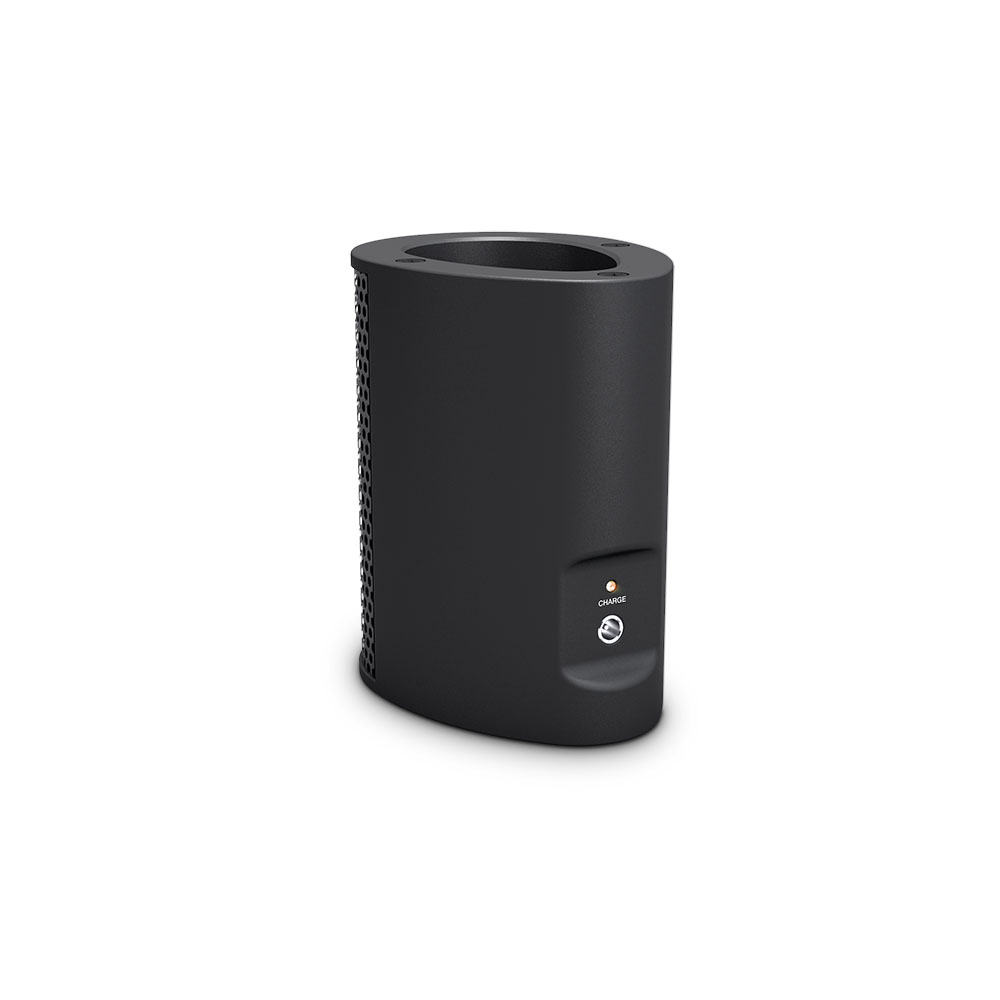

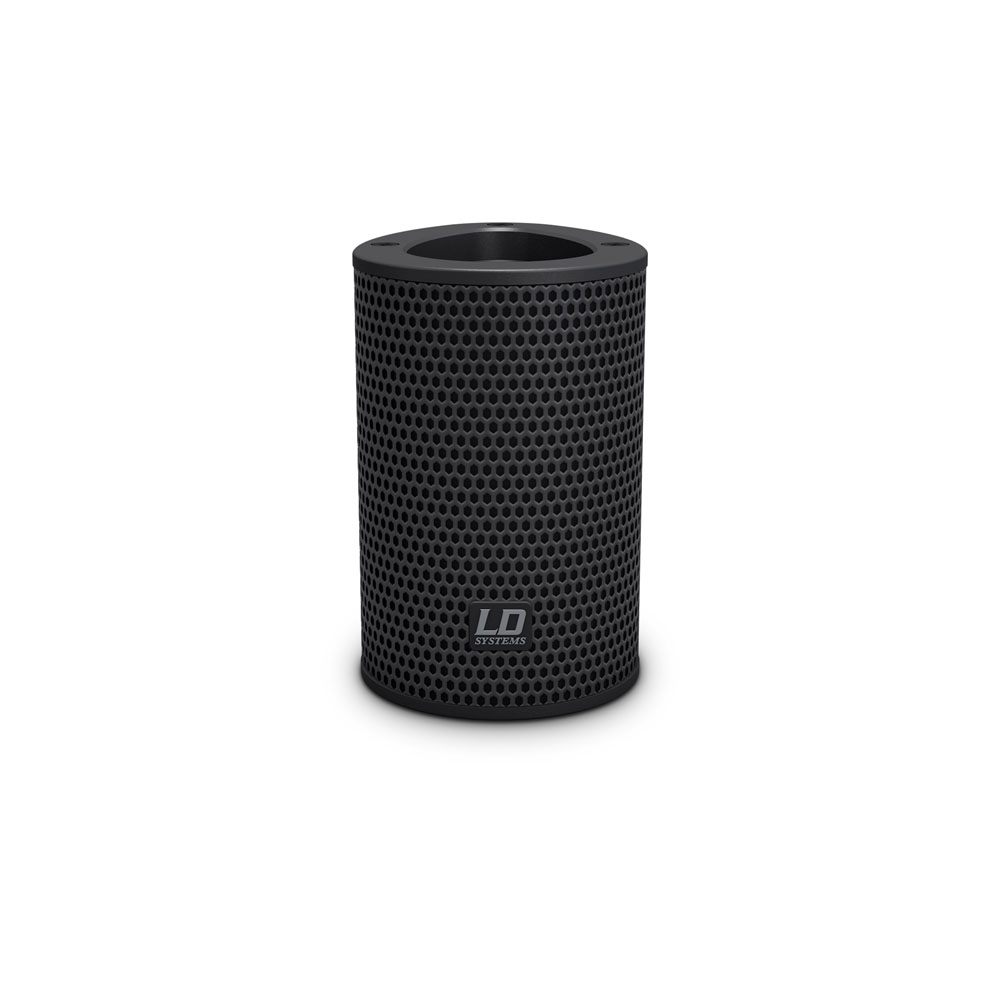

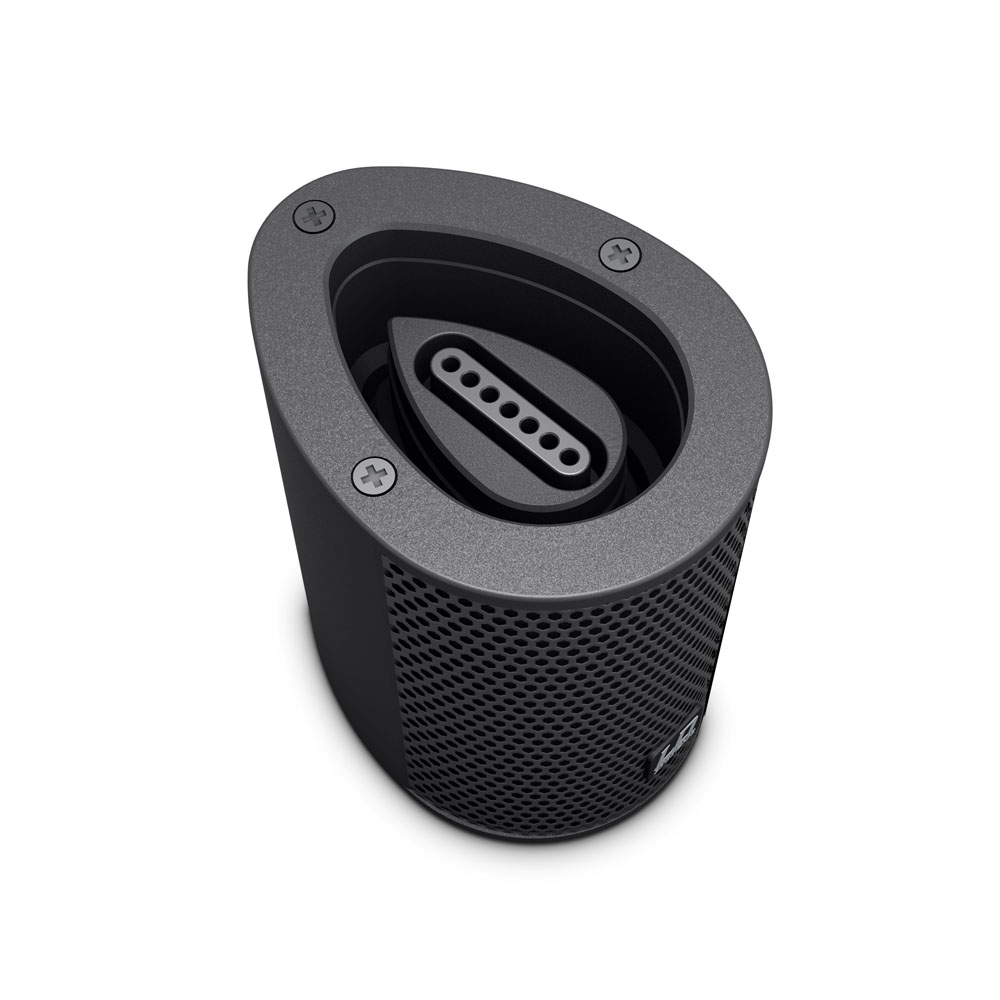

This charging dock is a flexible alternative to the MAUI 5 GO’s built-in smart charger. Featuring LD Systems’ Quick-Swap technology, it lets you recharge replacement battery elements while operating the MAUI 5 GO to provide virtually unlimited battery power. Charging takes only 2 hours to 80% and 3 hours to full capacity. The dock comes with a 100V - 240V multi-voltage power supply with overload, over-voltage and over-temperature protection. MAUI 5 GO replacement batteries are available as accessories.

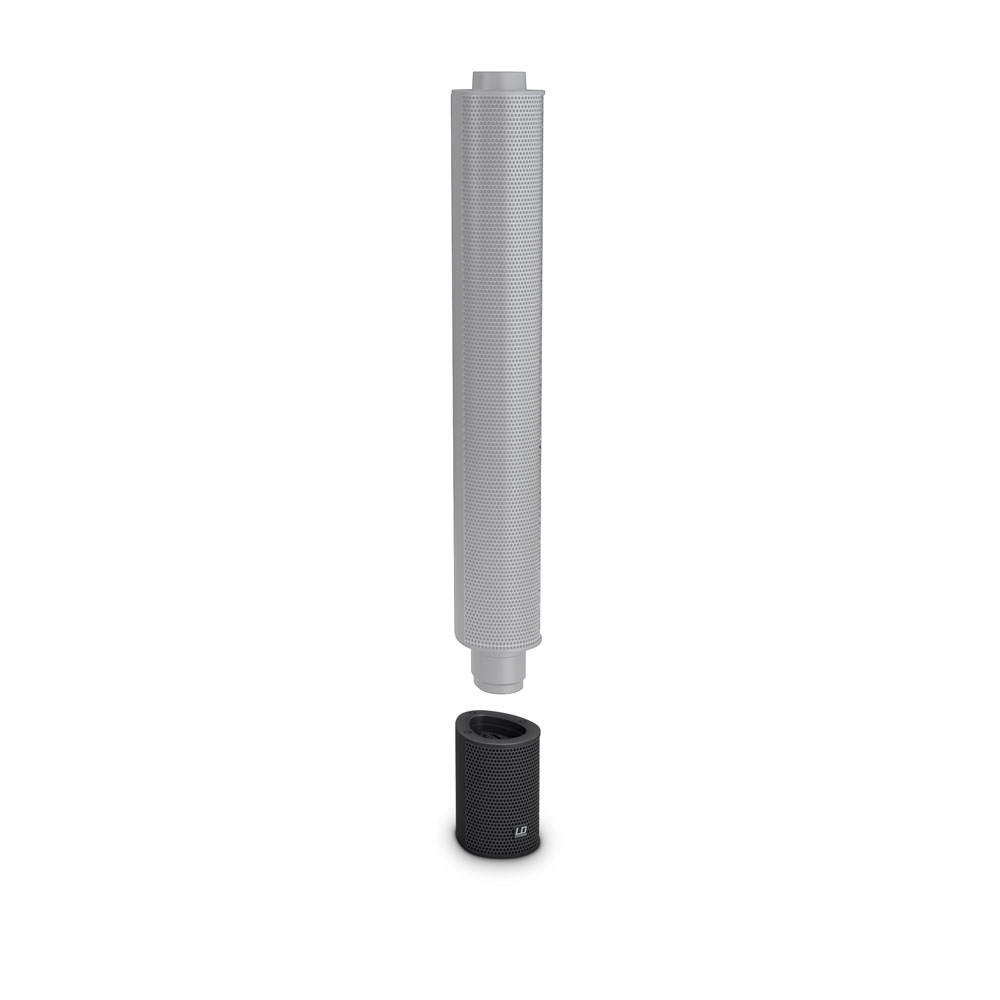

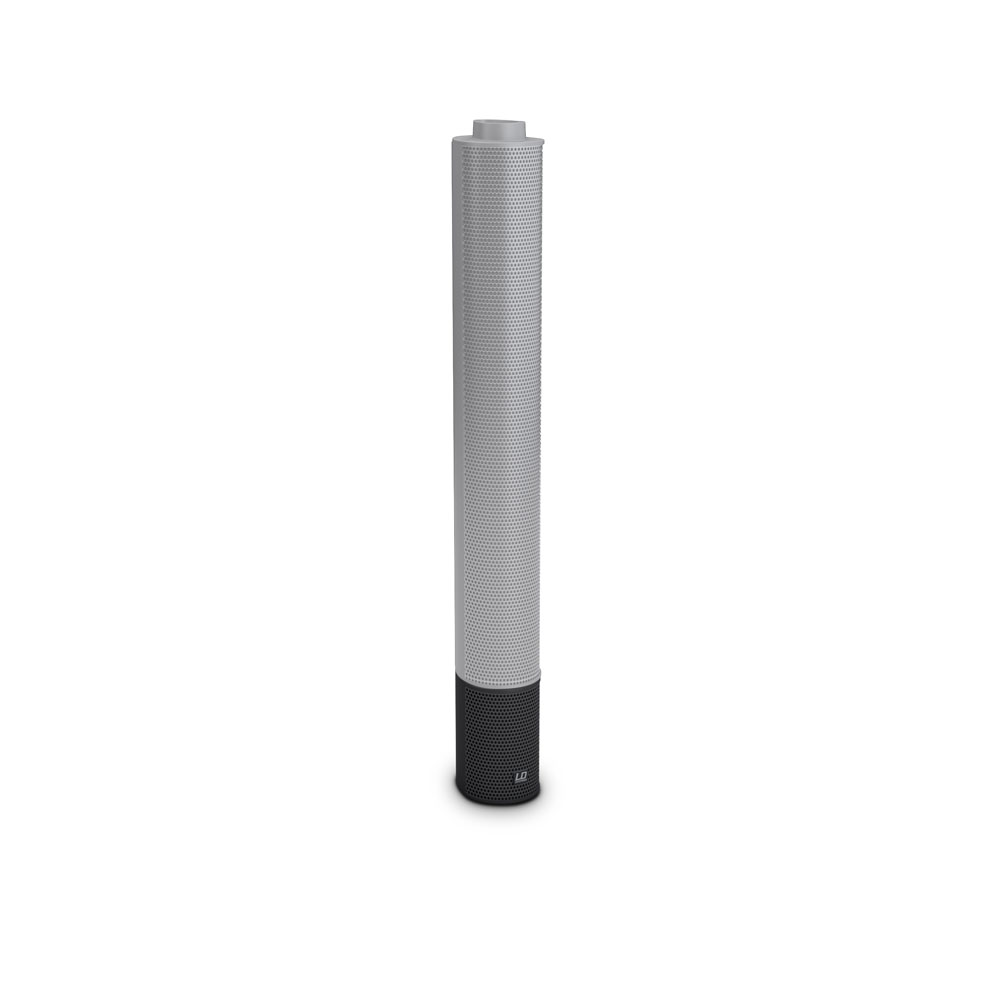

• Design matches that of the battery column
• Very short charging times: 80% capacity = 2 h, 100% capacity = 3 h

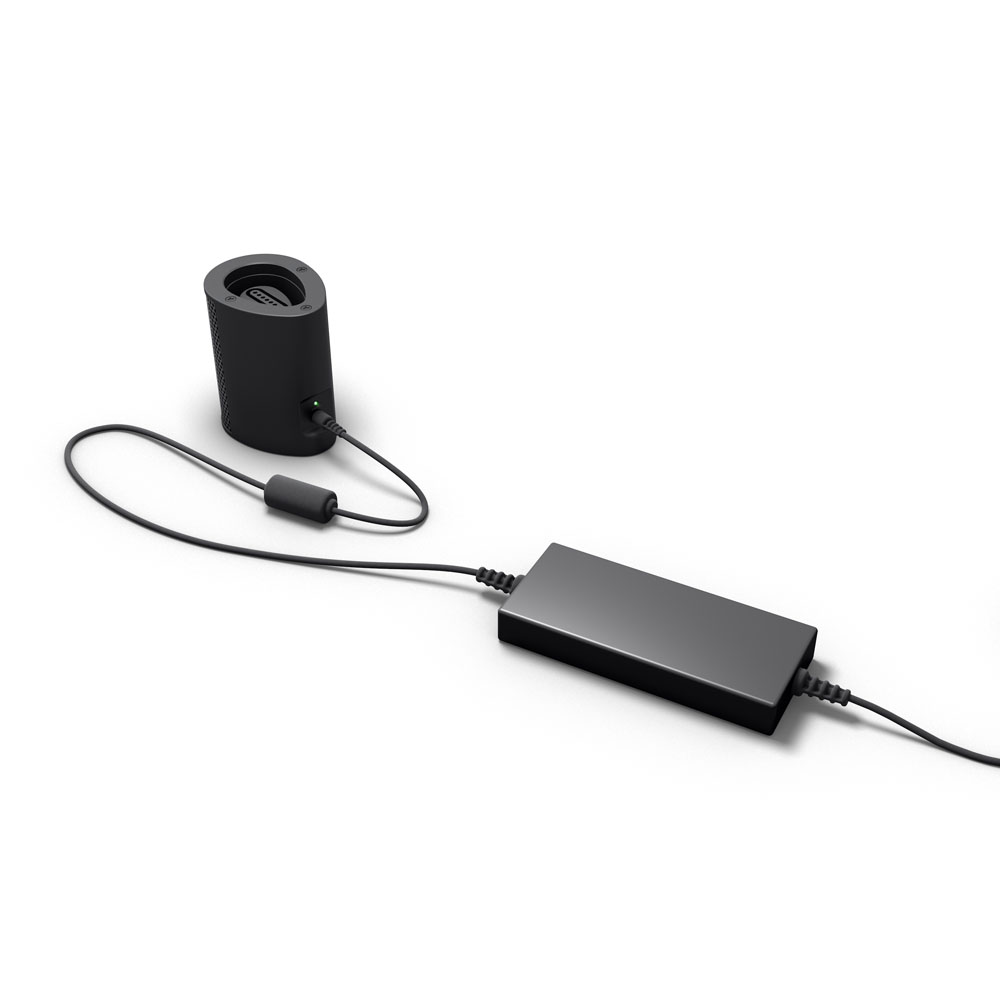

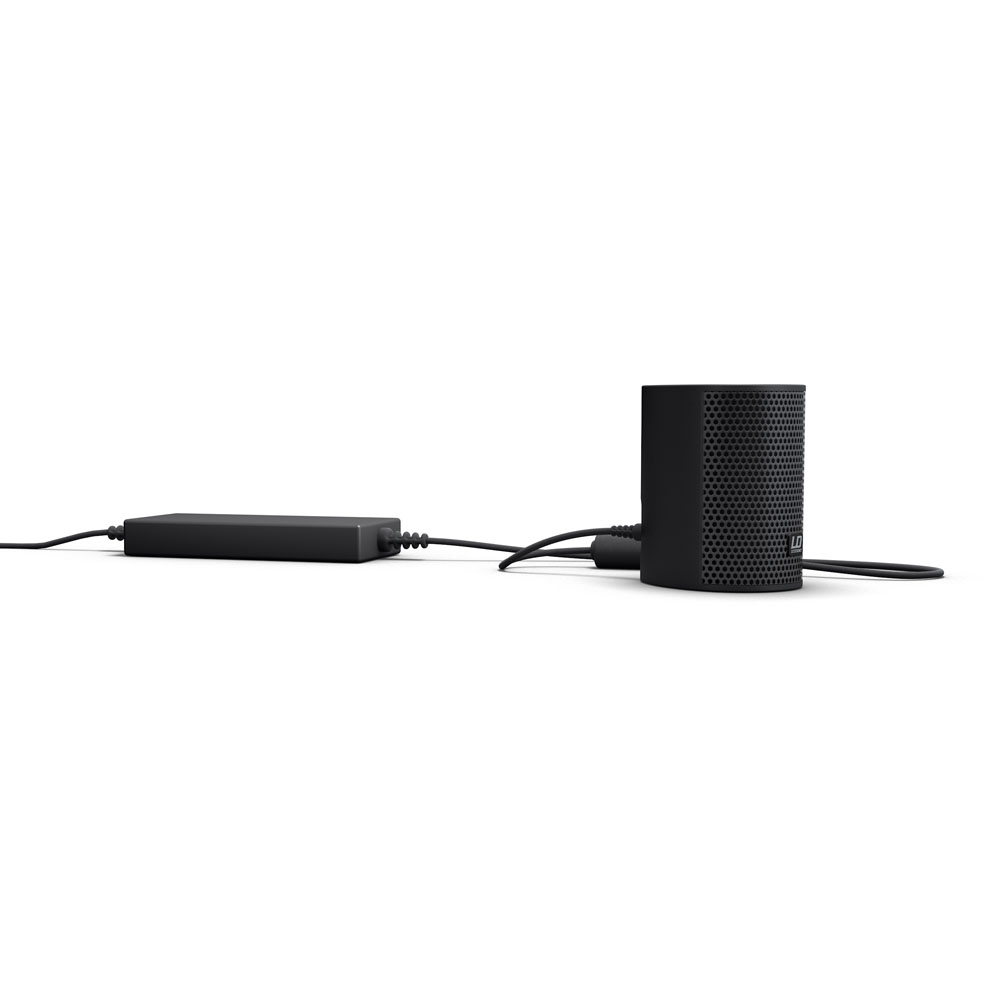

• Multi-voltage power supply included
• Product type: PA Power Amplifier Accessories
• Type: Loading Dock with Power Cable
• Connections Loading Dock: Low-voltage socket, multipin
• Operating Voltage Loading Dock: 20 - 40 V DC
• Protection Features Loading Dock: current limiter
• Dimensions (W x H x D) Loading Dock: 81 mm x 125 mm x 106 mm
• Weight Loading Dock: 0.31 kg
• Input Voltage Power Cable: 100 V AC - 240 V AC, 50 - 60 Hz
• Input Connector Power Cable: ICE Connector male
• Rated Output Voltage Power Cable: 24 V
• Output Current Power Cable: 5 A
• Protection Features Power Cable: over-current, power supply overload, Short circuit, thermal overload
• Indicators: power LED
• Dimensions (L x W x H) Power Cable: 167 mm x 67 mm x 35 mm
• Weight Power Cable: 0.62 kg
