TW AUDIO PA SYS ONE

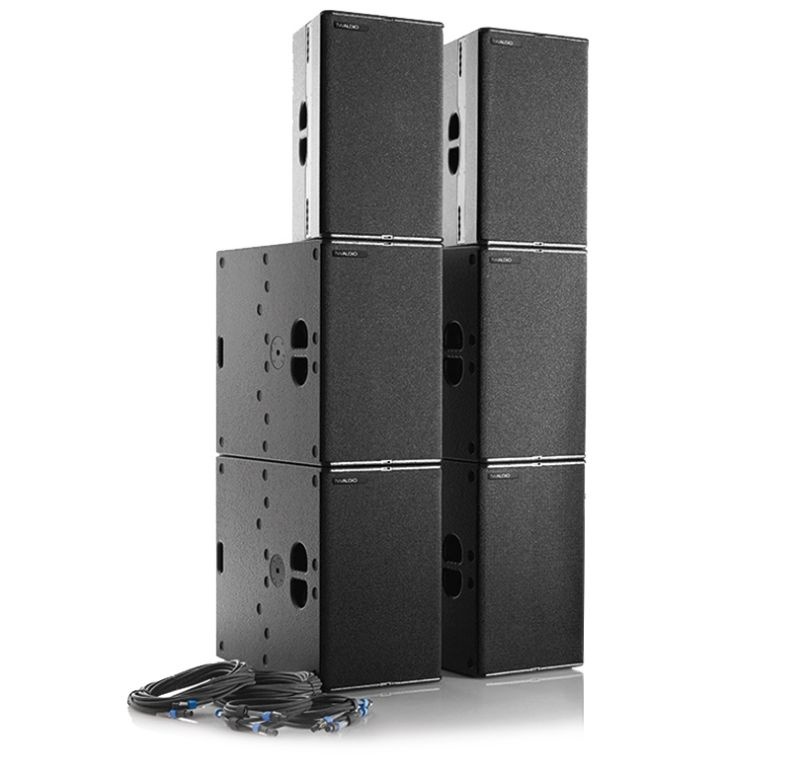

Top class with plug’n’play. Always and everywhere matched together.And welcome everywhere, too. The PA-SYS-ONE is our proven all-round sound system on the modular principle – with two T24N tops, four B30 subwoofers and a system amp rack with patch panel and set of cables, this is the all-round, no-worries package for takeoff.
You can even transport a complete PA-SYS-ONE in the back of a van. Loading and unloading, setting up and dismantling can be done by just one person.
But to become a classic it needs more unique properties: Whether for jazz, rock or techno, soul or classical music, whether in a small club, a theatre, a church or an open-air event, as a main PA, a drum fill or a side fill, the PA-SYS-ONE just keeps on rockin’.
And if one PA-SYS-ONE isn’t enough, you can just simply add another one. Alternatively you can drive up to four T24Ns and eight B30s with one system amp rack. Or just extend the system in the infra bass range with BSX and additional amplifiers.All these attributes make the PA-SYS-...ONE a real classic.
Technical data
T24N
Drivers
2 × 12" LF1 × 1,4" HF
Frequency range
65 – 18000 Hz
Power capacity program / peak
1400 / 2400 W (bi-amp LF), 220 / 400 W (bi-amp HF)1400 / 2400 W (passive)
Impedance
4 Ohm (bi-amp LF), 8 Ohm (bi-amp HF)4 Ohm (passive)
Coverage (h x v)
60° × 40° oder 90° ×  50° HF-horn, exchangeable, rotatable
Sensitivity 1 W / 1 m
107 dB (bi-amp LF), 112 dB (bi-amp HF)110 dB (passive)
SPLmax / 1 m
143 dB
Connection
NL4 1± HF / 2± LF (bi-amp)NL4 1± (passive)
Dimensions (H x W x D)
706 × 440 × 440 mm [27.8 × 17.32 × 17.32 in]
Weight
33 kg [72.75 lbs]
Finish
Warnex texture paint
Accessories
CaseT24, CoverT24, FDB30, SBT24, CBT24, BLT24, MCT24, BAT24, BBT24, BCT24
Options
RAL colors, IP55
Technical data
B30
Drivers
2 × 15"
Frequency range
35 – 200 Hz
Power capacity program / peak
2000 / 4000 W
Impedance
8 Ohms
Coverage
omni
SPLmax / 1 m
133 dB
Connection
NL4 2±
Dimensions (H x W x D)
706 × 446 × 800 mm [27.8 × 17.56 × 31.5 in]
Weight
38,7 kg [85.32 lbs]
Finish
Warnex texture paint
Accessories
FDB30, QDB30, CoverB30
Options
RAL colors
