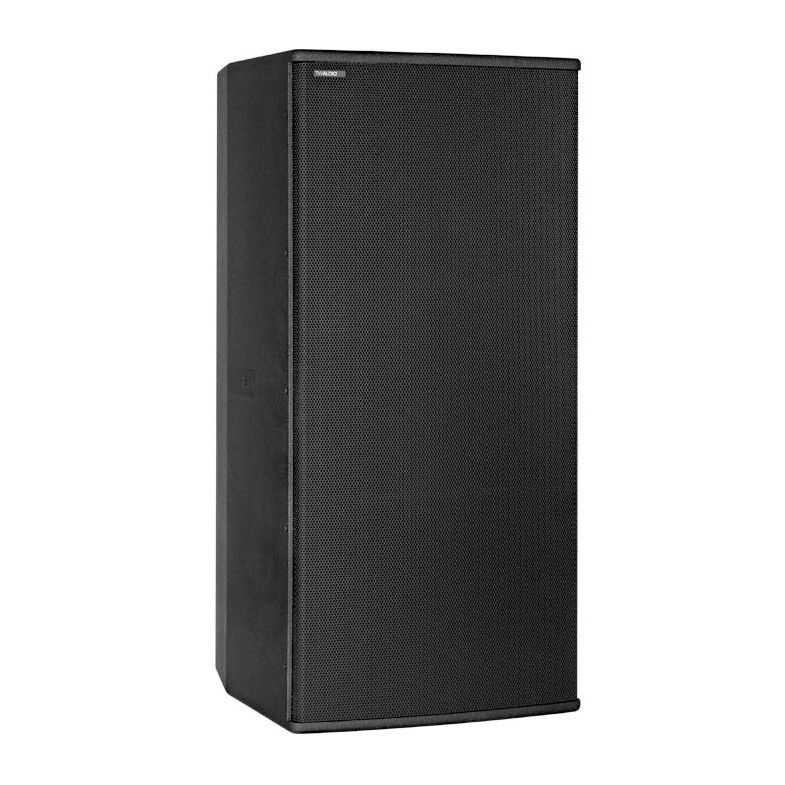

TW AUDIO T30i

The T30i is a full range installation loudspeaker equipped with two 15” long excursion chassis for the low-mid range and a 1.4” compression driver placed in between for the mid-high range.
The user has the possibility of covering the entire frequency range with just one loudspeaker: Whether in multi-purpose venues, sports halls, churches, theatres or clubs as a power DJ monitor, wherever it is not possible or necessary to place an additional subwoofer but the importance is a natural, punchy, clear musical reproduction and outstanding speech intelligibility, that‘s where the T30i finds its place.
The mid-high range is reproduced from 700 Hz with a newly developed compression driver which is coupled to a large-scale 90° × 50° constant directivity horn. This results in a precise and dynamic voice and musical reproduction at already low volume.
As the T30i is compatible with all TW AUDiO subwoofers, those can also be used for more sub bass.
Technical data
Drivers
1 × 1.4“ HF2 × 15“ LF
Fre...quency range
34 Hz - 20000 Hz
Power capacity program / peak
200 / 400 W HF4000 / 8000 W LF
Impedance
8 Ω HF4 Ω LF
Coverage (h x v)
90° × 50°
Sensitivity 1W / 1m
109 dB HF103 dB LF
SPLmax / 1 m
139 dB
Connection
screw terminal 1± HF | 2± LF
Optional connections
speakON™cable gland
Dimensions (H x W x D)
1000 x 500 x 600 mm [39.37 × 19.69 × 23.62 in]
Weight
58 kg [127.87 lbs]
Finish
Warnex texture paint
Accessories
SBT30i, QBT30i, RSM10, URA30
Options
RAL colors


VIAC
