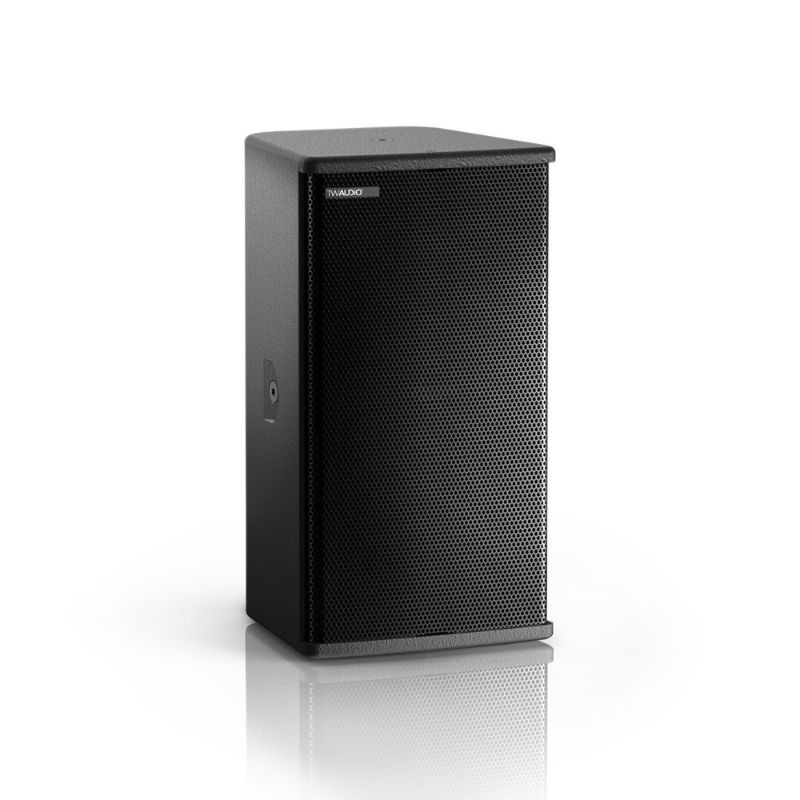

TW AUDIO M8i

The M8i is the installation version of the M8, one of the most popular TW AUDiO products. The M8i takes the same uncompromising acoustic design of the M8 (8″ LF-driver, 1″ compression driver and rotatable 90° × 60° horn) and places it in the i-series installation specific enclosure.
The phase-aligned and frequency corrected passive crossover allows the M8i to be driven even by standard linear amplifier without DSP presets. For extended fullrange use, or in combination with TW AUDiO subwoofers, there are dedicated presets available for Powersoft and Lab.gruppen amplifier platforms.
The M8i allows delivery of uncompromising audio in an architecturally discrete package.
Technical data
Drivers
1 × 1“ HF1 × 8“ LF
Frequency range
66 Hz - 20000 Hz
Power capacity program / peak
400 / 800 W
Impedance
8 Ω
Coverage
90° × 60°, rotatable
Sensitivity 1 W / 1 m
95 dB
SPL max / 1 m
124 dB
Connection
screw terminal IN± | LINK±
Optional connections
speakON™cable gland
Dimensions (H x W x D)
440 x 240 x 240... mm [17.32 × 9.45 × 9.45 in]
Weight
10,3 kg [22.71 lbs]
Finish
Warnex texture paint
Accessories
VBM8i, QBM8i, WHM8i, RSM10, RSM6, FA8i
Options
RAL colors, polyurea coating (black)
