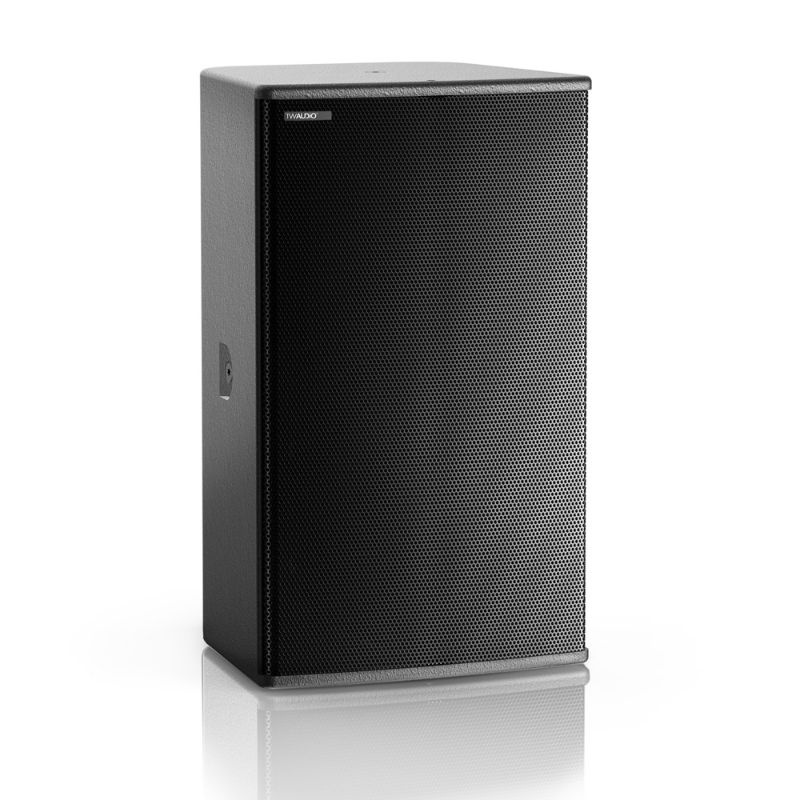

TW AUDIO M12i

The M12i is the installation version of the M12, a product proven over many years in countless deployments in FOH, delay line and monitor applications. Using the same components as M12, the M12i is the perfect adaptation of this speaker for installations.
The phase-aligned and frequency corrected passive crossover allows the M12i to be driven even by standard linear amplifier without DSP presets. For extended fullrange use, or in combination with TW AUDiO subwoofers, there are dedicated presets available for Powersoft and Lab.gruppen amplifier platforms.
The M12i is available in two dispersion patterns, 90° × 60° and 60° × 45° allowing it to be integrated as well as possible in the space.
Technical data
Drivers
1 × 1,4“ HF1 × 12“ LF
Frequency range
58 Hz - 19000 Hz
Power capacity program / peak
700 / 1400W
Impedance
8 Ω
Coverage
90° × 60° HF-Horn, rotatable
Sensitivity 1 W / 1 m
101 dB
SPL max / 1 m
132 dB
Connection
screw terminal IN± | LINK±
Optional connections
speakON™cable gland
Dimension...s (H x W x D)
600 × 360 × 314 mm [23.62 × 14.17 × 12.36 in]
Weight
19.2 kg [42.33 lbs]
Finish
Warnex texture paint
Accessories
VBM12i, QBM12i, WHM12i, RSM10, FA12i
Options
RAL colors, polyurea coating (black), 60° × 45° HF-horn
