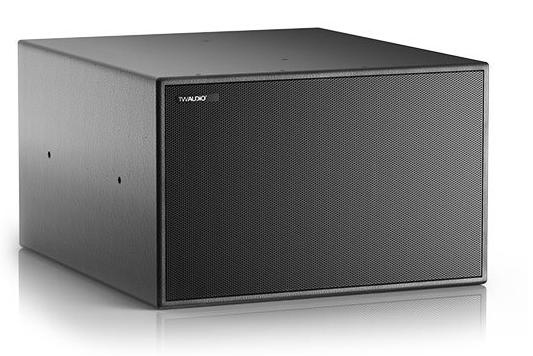

TW AUDIO B30i

The B30 touring version set a standard in footprint to output ratio to this day. The logical consequence is to integrate this loudspeaker also as an install version in the TW AUDiO range.
The hybrid construction of our B30i with 2 × 15“ speakers combines the advantages of bass reflex and horn systems – high efficiency, great range and a deep low frequency limit.
The connection to the acoustic field happens over the entire front area thus reducing air friction and flow losses to a minimum. The result is efficient energy transfer with simultaneous controlled impulse reproduction and excellent dynamics.
And at about 36 kg (80 lbs) the B30i is a lightweight. The relation of its size, weight and output turns this TW AUDiO classic into something special.
Technical data
Drivers
2 × 15" LF
Frequency range
35 Hz - 110* Hz
Power capacity program / peak
2000 / 4000 W
Impedance
8 Ω
Coverage
omni
Sensitivity 1 W / 1 m
97 dB
SPL max / 1 m
133 dB
Connection
screw terminal IN± | LINK±
Optional connections
sp...eakON™cable gland
Dimensions (H x W x D)
440 × 700 × 800 mm [17.32 × 27.56 × 31.5 in]
Weight
36,3 kg [80.03 lbs]
Finish
Warnex texture paint
Accessories
RSM10
Options
RAL colors, polyurea coating (black)

*With dedicated presets a frequency of up to 200 Hz can be achieved.
