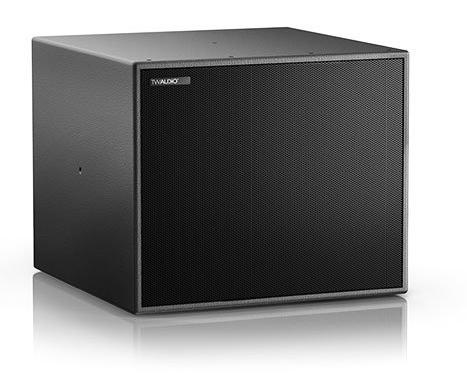

TW AUDIO B17i

The B17i is a compact installation subwoofer in a symmetrically vented enclosure, equipped with one 18′′ long excursion driver.
The fully symmetrical enclosure design enables identical performance with all set-up variations. Also directional sub arrays with partly reversed subwoofers are unrestrictedly possible in all combinations. Whether upright or crosswise, stacked on top of each other or side- by-side.
The B17i comes with i-series standard screw terminal connectionsat the rear with optional speakONTM and cable gland available. Four recessed M10 threads allow multiple mounting options via brackets or steel wires.
Applications:Clubs, bars, restaurants, theatres, Conference rooms or churches & TV studios
Technical data
Drivers
1 × 18" LF
Frequency range
37 Hz - 110* Hz
Power capacity program / peak
2400 / 4800 W
Impedance
8 Ω
Coverage
omni
Sensitivity 1 W / 1 m
96 dB
SPL max / 1 m
132 dB
Connection
screw terminal IN± | LINK±
Optional connections
speakON™ NL4cable gl...and
Dimensions (H x W x D)
500 × 600 × 600 mm19.7 × 23.6 × 23.6 in [19.69 × 23.62 × 23.62 × 0.93 × 0.93 in]
Weight
34 kg | 75 lbs [74.96 lbs]
Finish
Warnex texture paint
Accessories
RSM10
Options
RAL colors, polyurea coating (black)

*With dedicated presets a frequency of up to 200 Hz can be achieved.
