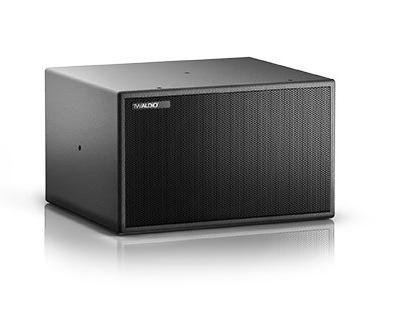

TW AUDIO B10i

The dimensions of the smallest TW AUDiO installation sub let not assume such a performance. The B10i, like it‘s B10 production brother, delivers tight, focused bass from a box barely larger than a microwave oven. Its specifi cally developed long excursion 10" cone driver with an uncompromising 3" dual voice coil delivers usable frequency response down to 40 Hz. This makes the B10i a perfect match for restaurants, clubs and many other applications as main sub or discretely distributed as part of a larger system.
The B10i comes with i-series standard screw terminal connections at the rear with optional speakON™ and cable gland available. Four recessed M10 threads allow multiple mounting options via brackets or steel wires.
Technical data
Drivers
1 × 10" LF dual coil
Frequency range
40 Hz - 120* Hz
Power capacity program / peak
700 / 1400 W
Impedance
8 Ω | 2 × 16 Ω optional
Coverage
omni
Sensitivity 1 W / 1 m
91 dB
SPL max / 1 m
123 dB
Connection
screw terminal IN± | LINK±
Optional connec...tions
speakON™cable gland
Dimensions (H x W x D)
300 × 500 × 440 mm [11.81 × 19.69 × 17.32 in]
Weight
16,1 kg [35.49 lbs]
Finish
Warnex texture paint
Accessories
RSM10, QBB10i, VBB10i, CBB10i
Options
RAL colors, polyurea coating (black)

*With dedicated presets a frequency of up to 400 Hz can be achieved.
