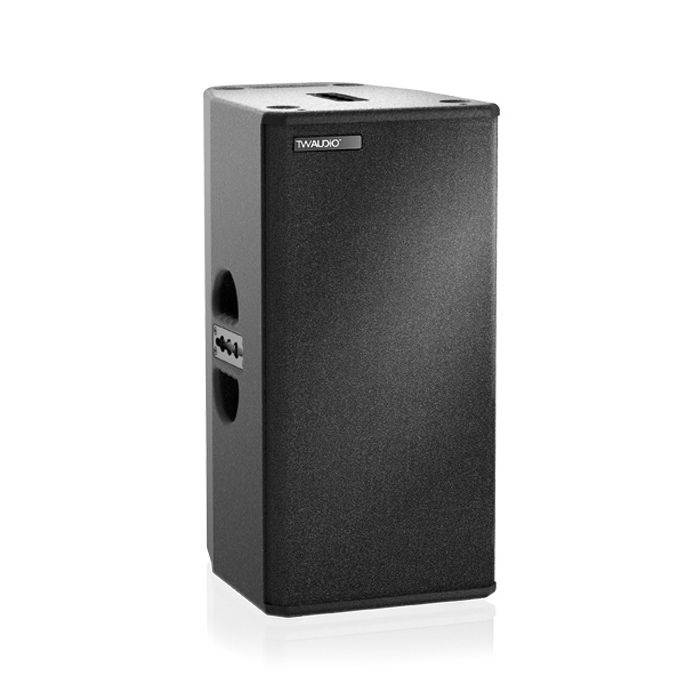

TW AUDIO T20

The T20 is a consequential transformation of our users requirements.A compact, 30 cm slim 2 × 10" / 1.4" horn top in an entirely symmetric construction, perfectly suitable for use in upright and in particular, crosswise applications.
Thanks to the sophisticated driver array and passive crossover the T20 reaches a constant direct dispersion, horizontally as vertically. Especially in cross operation, where conventional two-way loudspeakers are a mere compromise, the T20 shows its true potential. For example, when used lying down as front fill or drum fill, asa center loudspeaker or even in club installations with particularly low ceilings.
The standard fitted 90 × 50 degree high range horn can easily be changed to a 60 × 40 degree variation, without the need for tools, when a more narrow, longer in distance application is required. If standing alone in full range operating mode with a subwoofer or together with vertical arrays, the T20 always finds its operational use thus proving to be a real multi talent.
Te...chnical data
Drivers
2 × 10" LF1 × 1,4" HF
Frequency range
60 – 18000 Hz
Power capacity program / peak
1000 / 2000 W
Impedance
8 Ohms (passive)
Coverage (h x v)
90° × 50° or 60° ×  40° HF-horn, exchangeable, rotatable
Sensitivity 1 W / 1 m
106 dB (passive)
SPLmax / 1 m
138 dB
Connection
NL4 1±
Dimensions (H x W x D)
606 × 300 × 400 mm [23.86 × 11.81 × 15.75 in]
Weight
21,8 kg [48.06 lbs]
Finish
Warnex texture paint
Accessories
CaseT20, CoverT20, QBT20, SBT20
Options
RAL colors

VIAC
