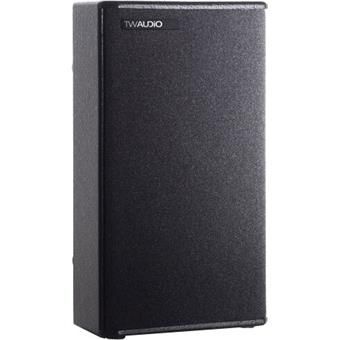

TW AUDIO M12

The M12 dispenses with extended bass reproduction, instead of placing special emphasis on enhanced mid-high performance.
It offers extraordinary increased efficiency from a compact enclosure with precise dispersion and impulse behavior with lowest possible distortion.
The M12 is eminently suitable for use as a high performance front fill or near fill, as a compact delay line loudspeaker or stage monitor, and especially as a 12" top in a two-way active setup with our B18 and B30 subwoofers in our PA-SYS-TWO.
Technical data
Drivers
1 × 12" LF1 × 1,4" HF
Frequency range
60 – 19000 Hz
Power capacity program / peak
700 / 1400 W
Impedance
8 Ohms
Coverage (h x v)
75° × 50° HF-horn, rotatable
Sensitivity 1 W / 1 m
101 dB
SPLmax / 1 m
132 dB
Connection
NL4 1±
Dimensions (H x W x D)
604 x 360 x 314 mm [23.78 × 14.17 × 12.36 in]
Weight
20,2 kg [44.53 lbs]
Finish
Warnex texture paint
Accessories
SBM12, CoverM12, CaseM12, QBM12
Options
left and right version, RAL color...The M12 dispenses with extended bass reproduction, instead of placing special emphasis on enhanced mid-high performance.
It offers extraordinary increased efficiency from a compact enclosure with precise dispersion and impulse behavior with lowest possible distortion.
The M12 is eminently suitable for use as a high performance front fill or near fill, as a compact delay line loudspeaker or stage monitor, and especially as a 12" top in a two-way active setup with our B18 and B30 subwoofers in our PA-SYS-TWO.
Technical data
Drivers
1 × 12" LF1 × 1,4" HF
Frequency range
60 – 19000 Hz
Power capacity program / peak
700 / 1400 W
Impedance
8 Ohms
Coverage (h x v)
75° × 50° HF-horn, rotatable
Sensitivity 1 W / 1 m
101 dB
SPLmax / 1 m
132 dB
Connection
NL4 1±
Dimensions (H x W x D)
604 x 360 x 314 mm [23.78 × 14.17 × 12.36 in]
Weight
20,2 kg [44.53 lbs]
Finish
Warnex texture paint
Accessories
SBM12, CoverM12, CaseM12, QBM12
Options
left and right version, RAL color
