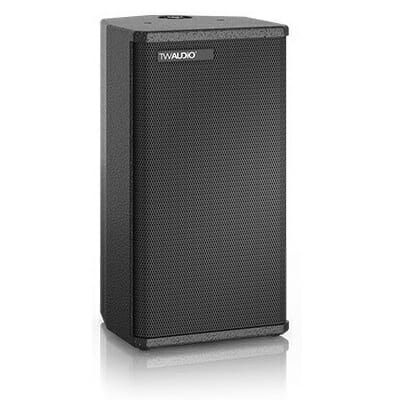

TW AUDIO M8

One of the most popular TW AUDiO products is the M8, an uncompromisingly developed compact loudspeaker with an 8" / 1" configuration. Special mention is to be made of the passive combination of the M8 and the B15, making up our M-SYS-TWO. Also in active driven bi-amped combination with B15, B18 or even B30s. With its 124 dB SPL the M8 remains acoustically superior as a top for a long time.
Technical data
Drivers
1 × 8" LF1 × 1" HF
Frequency range
70 – 20000 Hz
Power capacity program / peak
400 / 800 W
Impedance
8 Ohms
Coverage (h x v)
90° × 60° HF-horn, rotatable
Sensitivity 1 W / 1 m
95 dB
SPLmax / 1 m
124 dB
Connection
NL4 1±
Dimensions (H x W x D)
440 x 240 x 240 mm [17.32 × 9.45 × 9.45 in]
Weight
10 kg [22.05 lbs]
Finish
Warnex texture paint
Accessories
SBM8, WHM8, BagM8, CaseM8, QBM8
Options
left and right version, RAL colors
