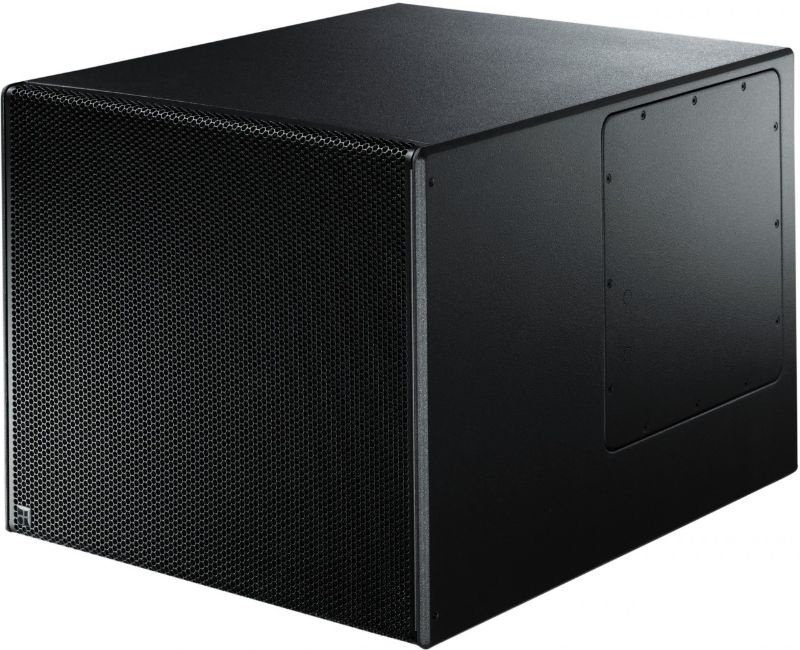

d&b audiotechnik 27S-SUB

The 27S-SUB is a compact high performance cardioid subwoofer powered by a single amplifier channel and is for use with the xS-Series and xA-Series loudspeakers. The cabinet houses two long excursion neodymium drivers in an integrated cardioid setup: a 15“ driver in a bass-reflex design facing to the front and a 12” driver in a two chamber bandpass design radiating to the rear. It can be used stand-alone, stacked or individually flown. The enclosure is constructed from marine plywood with an impact resistant black paint finish and is Ball Impact Resistant according to DIN 18032-3 for schools and sports halls. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. Incorporated into the side panels are a pair of M10 threaded inserts and into the rear panel are two NL4 connectors as well as a two pole screw terminal block. The loudspeaker cabinets and most accessories are also available with the Special Colour (SC) opt...ion that can be executed in all RAL colours, whilst the Weather Resistant (WR) option provides an IP34 rating, and enables operation of loudspeakers in changing ambient conditions.
Data
System data
Frequency response (–5 dB standard)
40 - 140 Hz
Frequency response (-5 dB 100 Hz mode)
40 - 100 Hz
Max. sound pressure (1m, free field)1 with D6/10D with D20/30D with D80
128 dB 131 dB 131 dB
Cabinets per amplifier channel
2
Loudspeaker data
Configuration
Installation specific cardioid subwoofer
Nominal impedance
6 Ω
Power handling capacity (RMS/peak 10 ms)
500/2000 W
Components
15" driver with neodymium magnet front 12" driver with neodymium magnet rear
Connections
2 x NL4 screw terminal block
Dimensions, weight
Dimensions (H x W x D)
490 x 580 x 700 mm
Weight
41 kg
1 SPL max peak test signal: pink noise with crest factor 4
Application information is presented for guidance only. d&b reserves the right to make any necessary changes to the products and the published specifications. As part of the ongoing development program d&b tries to maintain the highest degree of product compatibility.
