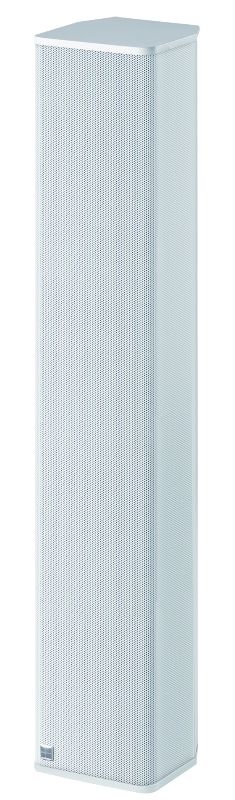

d&b audiotechnik 16C stĺpový reproduktor

The 16C 2-way passive column loudspeaker is the smallest in the Series housing four 4” neodymium drivers and a 0.75” compression driver mounted on a CD horn. The HF horn has a nominal dispersion of 90° x 40° (h x v). The 4" drivers are arranged in a unique cardioid setup radiating through waveguide elements at the front and damped ports at the rear of the cabinet. This design provides a constant directivity pattern of 90° in the horizontal plane with a broadband attenuation to the rear of approximately 18 dB. A cardioid dispersion pattern produces minimal energy behind the loudspeaker, reducing reflections and resulting in balanced level distribution across the listening area while increasing gain before feedback when working with open microphones. The 16C loudspeaker enclosure is constructed from an extruded aluminium back and a metal baffle, while the front and sides of the cabinet are protected by a metal grill. The rear of the cabinet features continuous T-slot rails for moun...ting purposes, a single NL4 input and a 4-pole Phoenix combicon terminal connector. The xC-Series loudspeakers are available in white or black as standard, or can be provided with the Special Colour (SC) option that can be executed in all RAL colours.
Data
System data
Frequency response (–5 dB standard)
110 Hz - 18 kHz
Max. sound pressure (1m, free field)1
122 dB
Cabinets per amplifier channel
3
Loudspeaker data
Configuration
Installation specific cardioid column loudspeaker
Power handling capacity (RMS/peak 10 ms)
100/500 W
Nominal dispersion angle (h x v)
90° x 40°
Components
4 x 4" driver with neodymium magnet 1 x 0.75" compression driver mounted on CD horn Passive crossover network
Connections
4-pole Phoenix terminal NL4
Dimensions, weight
Dimensions (H x W x D)
650 x 124.5 x 124 mm
Weight
5 kg
1 SPL max peak test signal: pink noise with crest factor 4
Application information is presented for guidance only. d&b reserves the right to make any necessary changes to the products and the published specifications. As part of the ongoing development program d&b tries to maintain the highest degree of product compatibility.
