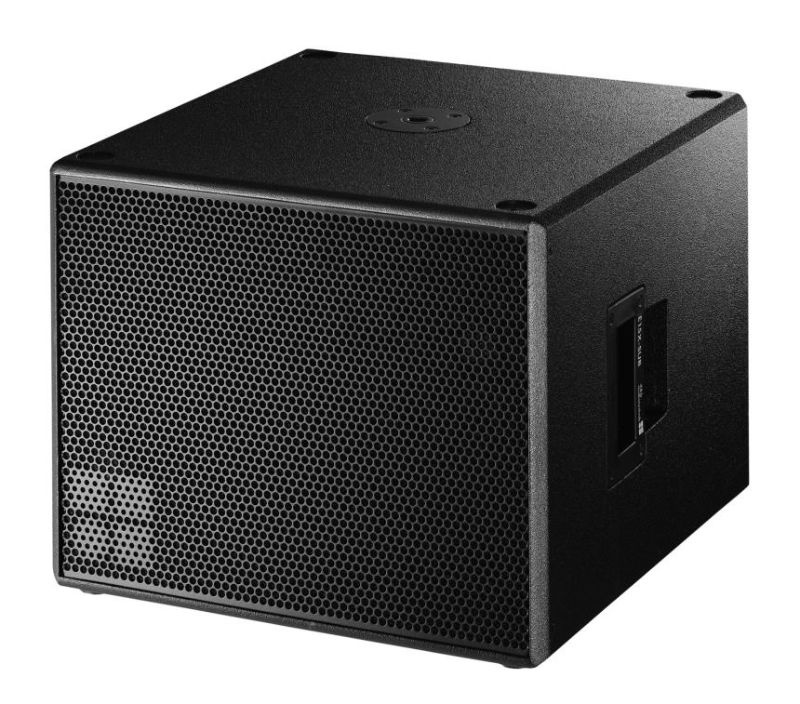

d&b audiotechnik E15X-SUB

The E15X-SUB is a compact, lightweight, high performance subwoofer for use with d&b E-Series loudspeakers. The built in passive crossover network allows the E15X-SUB to be operated in parallel to E12 or E12-D loudspeakers on the same amplifier channel, greatly extending the low frequency headroom and bandwidth of the systems. Alternatively it can be operated actively driven by its own amplifier channel without the need for any changes to the subwoofer. In Active mode the E15X-SUB can be used to supplement any of the E-Series cabinets. The E15X-SUB cabinet is constructed from marine plywood and has an impact resistant finish, a pair of handles and an M20 threaded flange on the top to accept the d&b loudspeaker stand winder. The loudspeaker cabinet is also available in Special Colour (SC) and Weather Resistant (WR) options.
Data
System data
Frequency response (–5 dB standard)
37 - 140 Hz
Frequency response (-5 dB 100 Hz mode)
37 - 100 Hz
Max. sound pressure (1m, free fi...eld)1 with D6/10D with D20/30D with D80
127 dB 130 dB 130 dB
Cabinets per amplifier channel
2
Loudspeaker data
Configuration
Compact subwoofer
Nominal impedance
8 Ω
Power handling capacity (RMS/peak 10 ms)
300/1600 W
Components
15" driver passive crossover network
Connections
2 x NLT4 F/M optional 2 x EP5 or 2 x NL4
Dimensions, weight
Dimensions (H x W x D)
426 x 530 x 550 mm
Weight
24 kg
1 SPL max peak test signal: pink noise with crest factor 4
Application information is presented for guidance only. d&b reserves the right to make any necessary changes to the products and the published specifications. As part of the ongoing development program d&b tries to maintain the highest degree of product compatibility.
