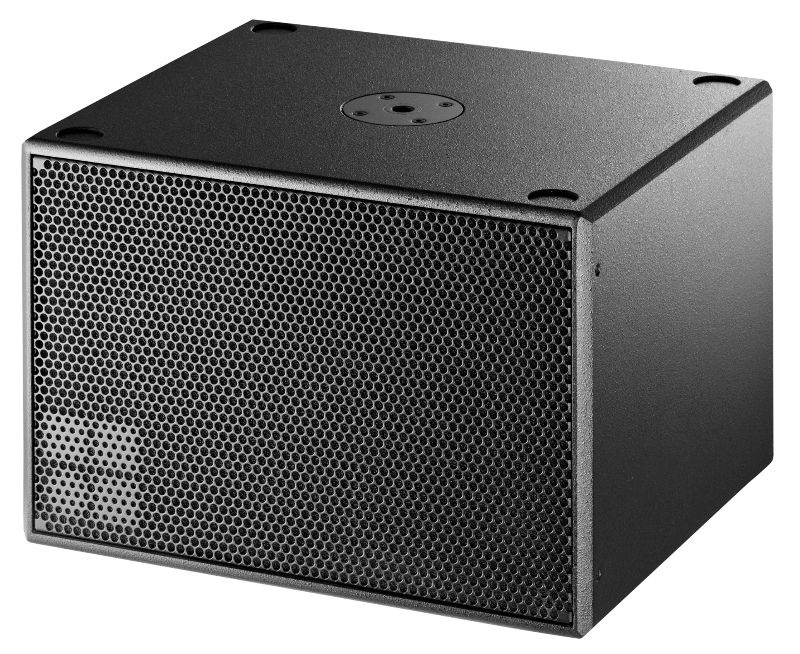

d&b audiotechnik E12X-SUB

The E12X-SUB is a compact, lightweight, high performance subwoofer for use with d&b E-Series loudspeakers. The built in passive crossover network allows the E12X-SUB to be operated in parallel to the E8 loudspeaker on the same amplifier channel, greatly extending the low frequency headroom and bandwidth of the systems. Alternatively it can be operated actively driven by its own amplifier channel without the need for any changes to the subwoofer. In Active mode the E12X-SUB can be used to supplement any of the E-Series cabinets. The E12X-SUB cabinet is constructed from marine plywood and has an impact resistant finish, a handle and an M20 threaded flange on the top to accept the d&b Loudspeaker stand winder M20. The loudspeaker cabinet is also available in Special Colour (SC) and Weather Resistant (WR) options.
Data
System data
Frequency response (–5 dB standard)
45 Hz - 100 Hz
Frequency response (–5 dB 140 Hz mode)
45 Hz - 140 Hz
Max. sound pressure (1m, free field)1 with... D6/10D with D20/30D with D80
124 dB 127 dB 127 dB
Cabinets per amplifier channel
2
Loudspeaker data
Configuration
Compact subwoofer
Nominal impedance
8 Ω
Power handling capacity (RMS/peak 10 ms)
300/1600 W
Components
12" driver
Connections
2 x NLT4 F/M optional 2 x EP5 or 2 x NL4
Dimensions, weight
Dimensions (H x W x D)
358 x 530 x 448 mm
Weight
18 kg
1 SPL max peak test signal: pink noise with crest factor 4
Application information is presented for guidance only. d&b reserves the right to make any necessary changes to the products and the published specifications. As part of the ongoing development program d&b tries to maintain the highest degree of product compatibility.
