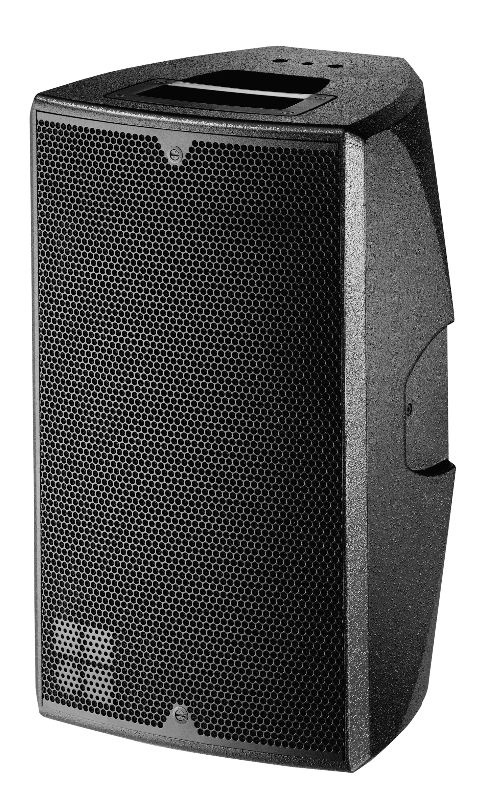

d&b audiotechnik E12-D

The E12 and E12-D are high performance 2-way multipurpose loudspeakers, employing an integrated coaxial driver. The E12 and E12-D can be used for speech and music applications as stand-alone full range systems or incorporated into larger distributed sound reinforcement situations and, with the addition of an E15X or B4 subwoofer, can also easily reproduce high level music program. The multifaceted shape of the enclosure allows use either in an upright or horizontal orientation as well as deployment as a stage monitor. The E12 has an 80° x 50° dispersion pattern (h x v), while the E12-D has a wider 110° x 50° pattern. The horns in both loudspeakers are easily rotatable through 90° providing 50° x 80° or 50° x 110° dispersion patterns. The E12 and E12-D cabinet is constructed from polyurethane integral hard foam with an impact resistant paint finish incorporating handles and a hidden socket to accept loudspeaker stands. The loudspeaker cabinet is also available in Special Colou...r (SC) and Weather Resistant (WR) options. Both options are supplied with metal plates in the specified colour covering the handle recesses and loudspeaker stand socket.
Data
System data
Frequency response (–5 dB standard)
50 Hz - 18 kHz
Frequency response (–5 dB CUT mode)
100 Hz - 18 kHz
Max. sound pressure (1m, free field)1 with D6/10D with D20/30D with D80
130 dB 133 dB 133 dB
Cabinets per amplifier channel
2
Loudspeaker data
Configuration
High performance 2-way coaxial loudspeaker with wide dispersion
Nominal impedance
8 Ω
Power handling capacity (RMS/peak 10 ms)
300/1600 W
Nominal dispersion angle (h x v)
110° x 50° rotatable through 50° x 110°
Components
12" driver with neodymium magnet 1.3" exit compression driver with 3” coil and rotatable CD horn passive crossover network
Connections
2 x NLT4 F/M optional 2 x EP5 or 2 x NL4
Dimensions, weight
Dimensions (H x W x D)
580 x 350 x 334 mm
Weight
16 kg
1 SPL max peak test signal: pink noise with crest factor 4
Application information is presented for guidance only. d&b reserves the right to make any necessary changes to the products and the published specifications. As part of the ongoing development program d&b tries to maintain the highest degree of product compatibility.
