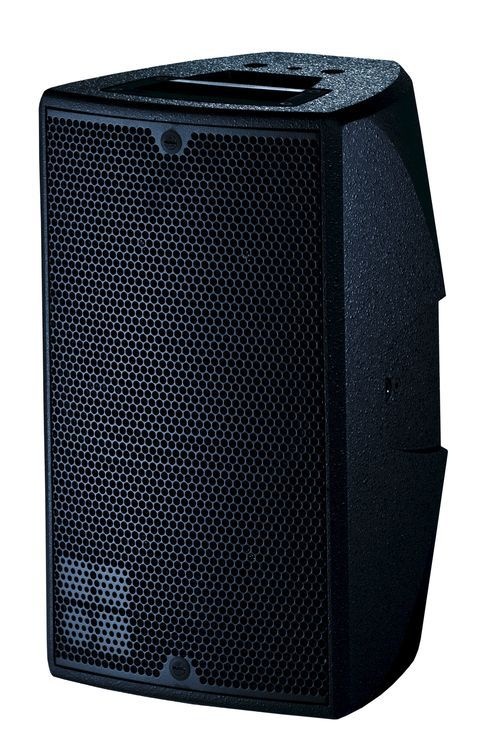

d&b audiotechnik E8

The E8 is a high performance 2-way multipurpose loudspeaker, employing an integrated coaxial driver. The E8 can be used for speech and music applications as a stand-alone full range system, or incorporated into larger distributed sound reinforcement situations. With the addition of an E12X subwoofer in passive or active mode or any other E-Series subwoofer, it can also easily reproduce higher level music program. The multifaceted shape of the enclosure allows use either in an upright or horizontal orientation as well as deployment as a stage monitor. The 90° x 50° dispersion pattern (h x v) of the horn is easily rotatable through 90° to provide a 50° x 90° dispersion pattern. The E8 cabinet is constructed from polyurethane integral hard foam with an impact resistant paint finish incorporating a handle and a socket to accept loudspeaker stands. The loudspeaker cabinet is also available in Special Colour (SC) and Weather Resistant (WR) options. Both options are supplied with met...al plates in the specified colour covering the handle recesses and loudspeaker stand socket.
Data
System data
Frequency response (–5 dB standard)
62 Hz - 18 kHz
Frequency response (–5 dB CUT mode)
120 Hz - 18 kHz
Max. sound pressure (1m, free field)1 with D6/10D with D20/30D with D80
126 dB 129 dB 129 dB
Cabinets per amplifier channel
4
Loudspeaker data
Configuration
2-way compact coaxial loudspeaker
Nominal impedance
16 Ω
Power handling capacity (RMS/peak 10 ms)
150/800 W
Nominal dispersion angle (h x v)
90° x 50° rotatable through 50° x 90°
Components
8" driver with neodymium magnet 1" exit compression driver with 1.75" coil and rotatable CD horn passive crossover network
Connections
2 x NLT4 F/M optional 2 x EP5 or 2 x NL4
Dimensions, weight
Dimensions (H x W x D)
390 x 232 x 223 mm
Weight
7.3 kg
1 SPL max peak test signal: pink noise with crest factor 4
Application information is presented for guidance only. d&b reserves the right to make any necessary changes to the products and the published specifications. As part of the ongoing development program d&b tries to maintain the highest degree of product compatibility.
