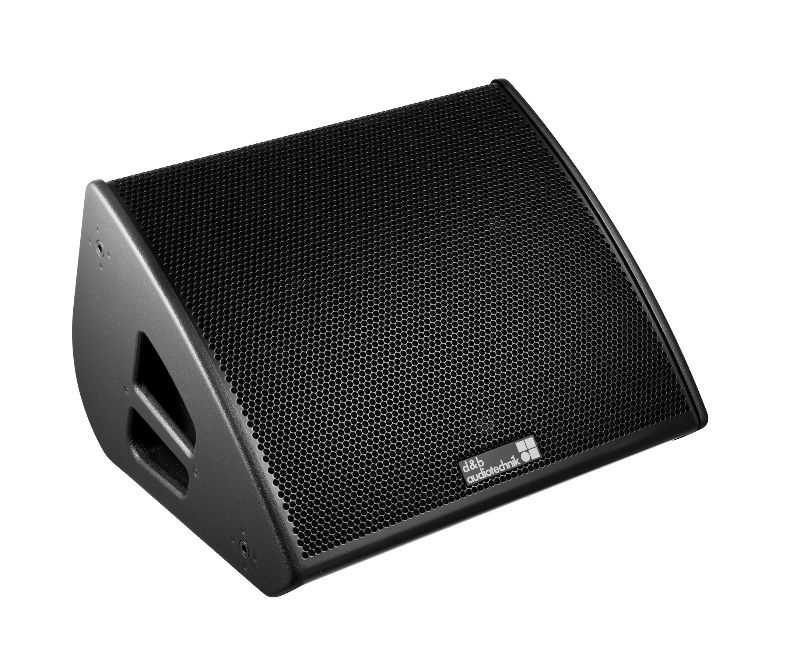

d&b audiotechnik MAX2 monitor

The 2-way passive MAX2 loudspeaker houses a 15” LF driver and a coaxially mounted 1.4” HF compression driver and achieves 75° conical constant directivity dispersion. The driver arrangement uses a single magnet assembly, allowing for a compact cabinet design with a low profile for strict visual demands.
The MAX2 provides a broad variety of deployment possibilities, whether used individually as a stage monitor; as a stand-alone full range system or, when combined with d&b subwoofers, as a drumfill.
The loudspeaker cabinet is constructed in marine plywood with an impact resistant paint finish. Four M10 threaded inserts allow connection to a flying bracket. The cabinet incorporates a pair of recessed grips for handling, while the front is protected by a rigid metal grill backed with an acoustically transparent foam. A pole mount is incorporated into one of the side panels. Two runners recessed in the bottom panel protect the cabinet from scratching and prevents movement.
Data
Sys...tem data
Frequency response (–5 dB standard)
55 Hz - 20 kHz4
Max. sound pressure (1m, free field)1 with D6/10D with D20/30D with D80
131 dB 135 dB 135 dB
Cabinets per amplifier channel
2
Loudspeaker data
Configuration
2-way stage monitor
Nominal impedance
8 Ω
Power handling capacity (RMS/peak 10 ms)
250/1600 W
Nominal dispersion angle (h x v)
75°
Components
15" driver with ferrite magnet coaxial 1.4" exit compression driver passive crossover network
Connections
2 x NLT4 F/M optional 2 x EP5 or 2 x NL4
Dimensions, weight
Dimensions (H x W x D)
354 x 580 x 496 mm2
Weight
23 kg
1 SPL max peak test signal: pink noise with crest factor 4
2 overall dimensions (projected footprint)
4 with floor coupling
Application information is presented for guidance only. d&b reserves the right to make any necessary changes to the products and the published specifications. As part of the ongoing development program d&b tries to maintain the highest degree of product compatibility.
