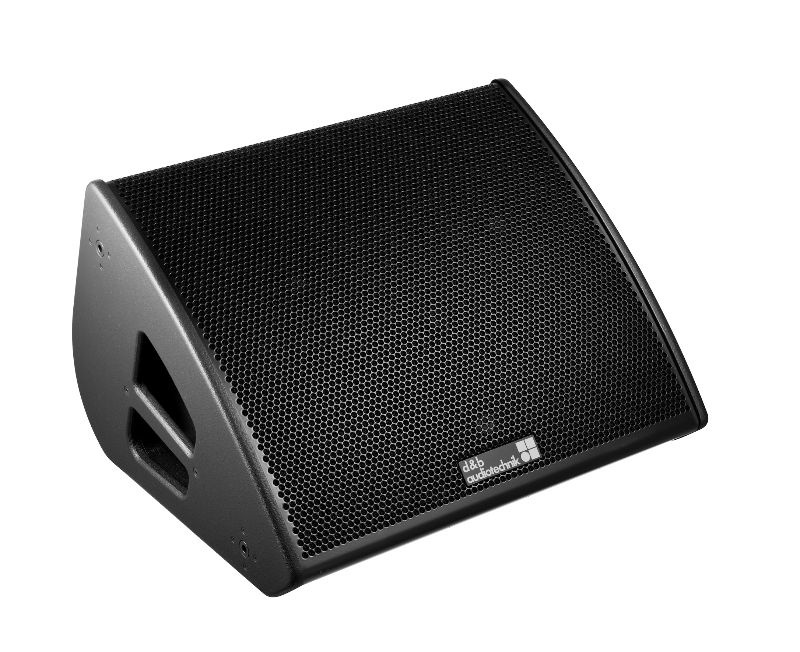

d&b audiotechnik M2 monitor

The M2 is a 2-way high performance stage monitor, with a peak sound pressure level of 143 dB. Its design uses a low height cabinet, achieves a constant directivity of 45° x 60° > 600 Hz and significantly raises the feedback stability margin. Together with the cabinets baffle angle of 40° (to floor), the dispersion performance offers a realistic artist listening area starting directly above the cabinet and reaching quite far upstage. The result is a loudspeaker system with remarkable vocal presence, clarity and neutral, balanced sound. The M2 cabinet is constructed from marine plywood, incorporates handles and has an impact resistant paint finish. Two fittings, which accept ball-lock shackle pins, are located on each side of the cabinet allowing quick and flexible rigging.
Data
System data
Frequency response (–5 dB standard)
50 Hz - 17 kHz 4
Max. sound pressure (1m, free field)1 with 30D with D80
143 dB 143 dB
Cabinets per D80/30D
4
Loudspeaker data
Configuration
H...igh performance 2-way stage monitor
Nominal impedance
4 Ω (LOW) / 8 Ω (HIGH)
Power handling capacity LOW (RMS/peak 10 ms)
500/2000 W
Power handling capacity HIGH (RMS/peak 10 ms)
50/200 W
Nominal dispersion angle (h x v)
45° x 60° 11
Components
2 x 12" driver 1.4" compression driver with CD horn
Connections
2 x NLT4 F/M optional 2 x EP5 or 2 x NL8
Dimensions, weight
Dimensions (H x W x D)
419 x 680 x 560 mm 2
Weight
38 kg
1 SPL max peak test signal: pink noise with crest factor 4
2 overall dimensions (projected footprint)
4 with floor coupling
11 ≥ 600 Hz
Application information is presented for guidance only. d&b reserves the right to make any necessary changes to the products and the published specifications. As part of the ongoing development program d&b tries to maintain the highest degree of product compatibility.
