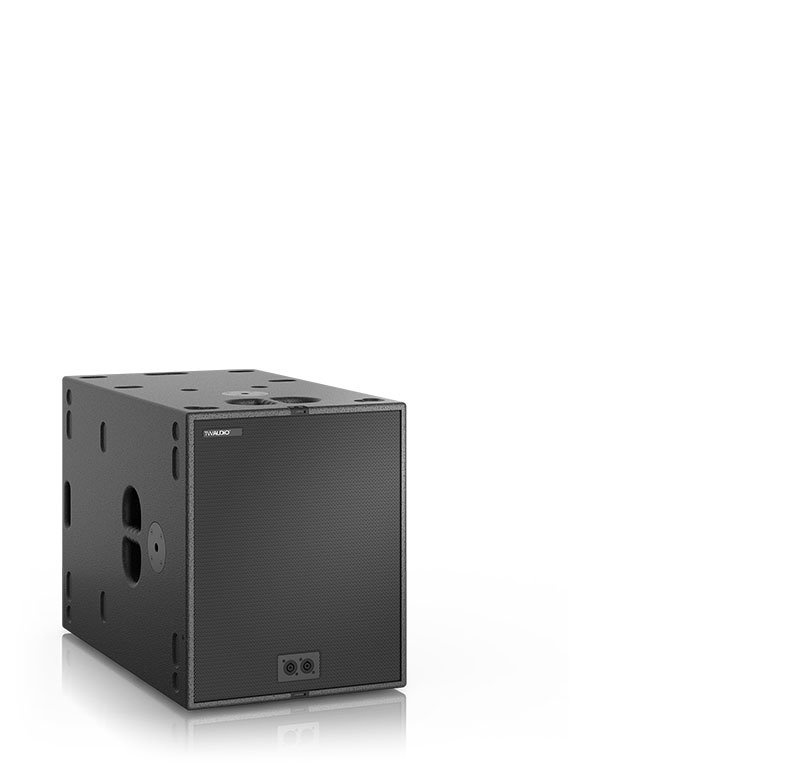

Our desired child: the B18. Countless client wishes were the beginning of its development. Constructed in a symmetrical band pass design, our B18 sounds astonishingly controlled but also very deep.
The fully symmetrical enclosure design enables identical performance with all set-up variations.Also directional sub arrays with partly reversed subwoofers are unrestrictedly possible in all combinations. Whether upright or crosswise, stacked on top of each other or side-by-side.
For simple and inconspicuous wiring of such a directional bass cluster the B18 provides two additional speakON™ connectors on the front grill.

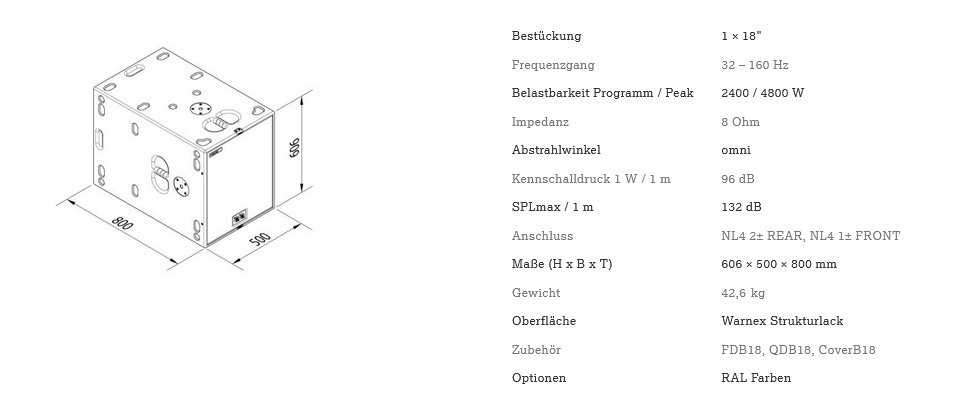

Technical data
Drivers
1 × 18"
Frequency range
32 – 160 Hz
Power capacity program / peak
2400 / 4800 W
Impedance
8 Ohms
Coverage
omni
Sensitivity 1 W / 1 m
96 dB
SPLmax / 1 m
132 dB
Connection
NL4 2± REAR, NL4 1± FRONT

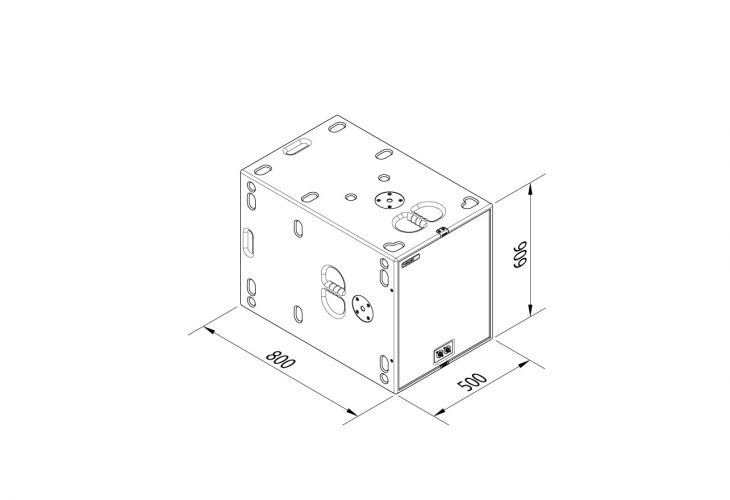

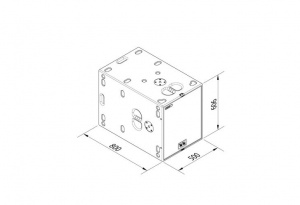

Dimensions (H x W x D)
606 × 500 × 800 mm [23.86 × 19.69 × 31.5 in]
Weight
42,6 kg [93.92 lbs]
Finish
Warnex texture paint
Accessories
FDB18, QDB18, CoverB18
Options
RAL colors
