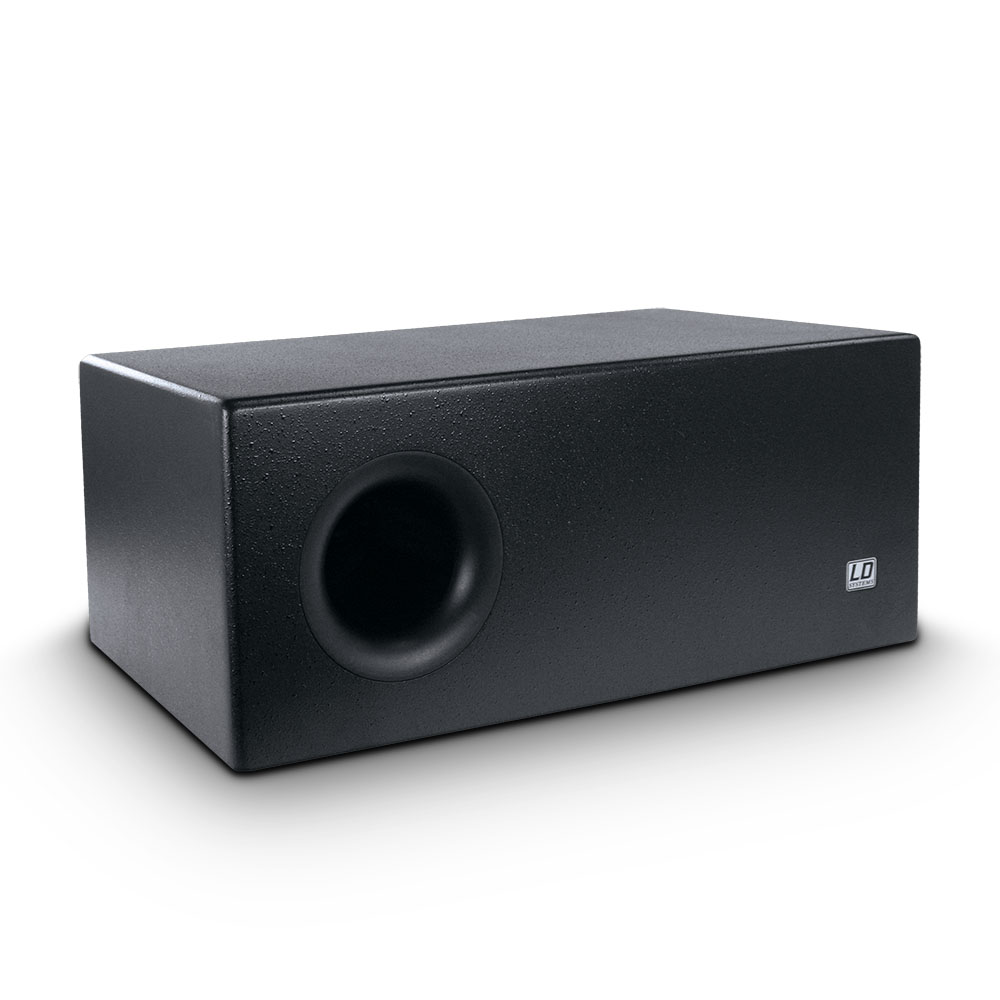

The Ld Systems SUB88A is an active 2 x 8" bandpass subwoofer with a power output of 150 W RMS.
The SUB88A features a 150 Watt (RMS) Mono-amplification unit offering great sound and dynamic characteristics. It is a perfect partner for the SAT62A active speaker or for the passive models SAT42/242/62 in combination with an external amplification unit such as the DJ200.
It can naturally be used with any other high/medium speaker if you wish to complete your sound with a deep and powerful bass fundament.
• Product type: PA subwoofer
• Type: Powered
• Low/mid Woofer dimensions: 2 x 8 "
• Woofer dimensions (mm): 2 x 203 mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Amplifier: Class A/B
• System Power (RMS): 150 W
• Frequency response: 40 - 120
• SPL (1W/1m): 92 dB
• Max. SPL: 115 dB
• Protection circuits: overload

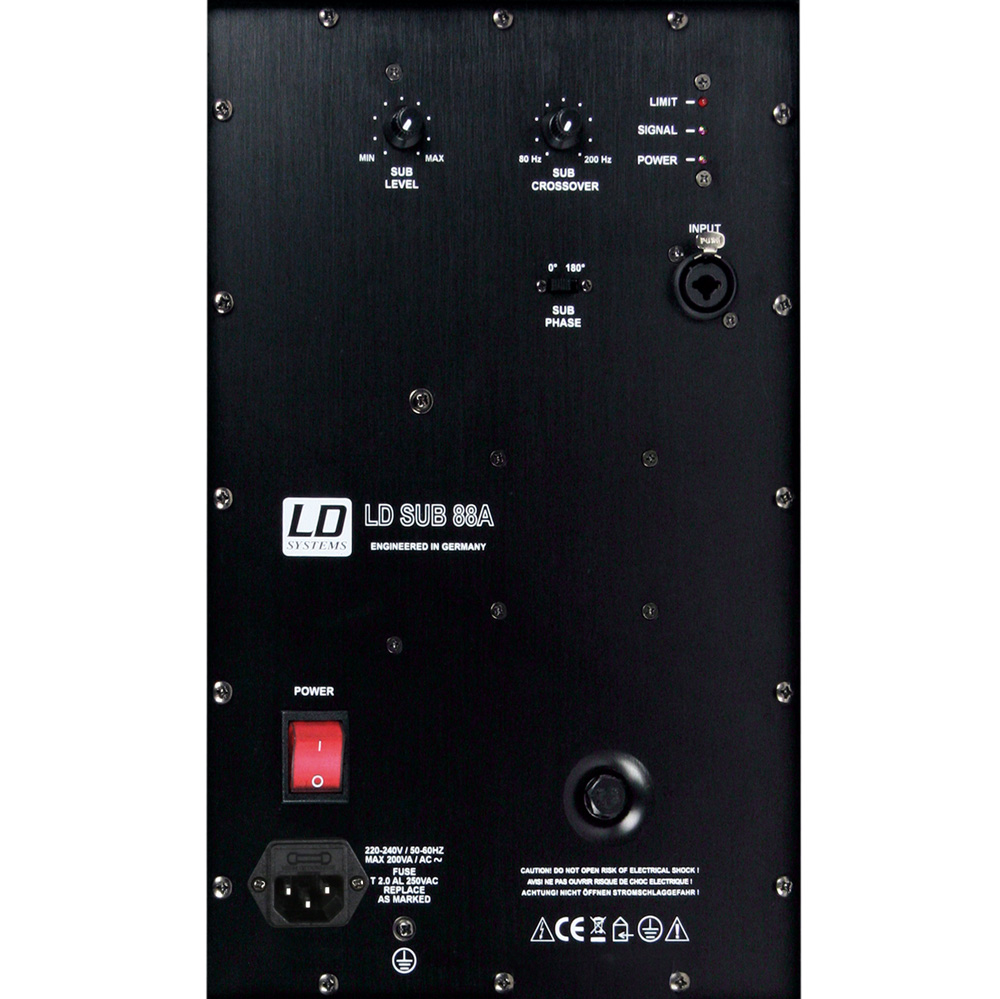

• Controls: Low-pass filter (70 - 140 Hz), Phase 180°, volume
• Indicators: Limit, Power, Signal
• Line inputs: 1
• Line input connectors: 6.3 mm jack, XLR
• Power supply: transformer
• Operating voltage: 220 V AC - 240 V AC, 50-60 Hz
• Cabinet material: 15 mm MDF
• Cabinet surface: texture paint
• Cabinet colour: Black
• Cabinet construction: Bandpass
• Width: 600 mm
• Height: 250 mm
• Depth: 350 mm
• Weight: 15 kg
