LD Systems DDQ SUB 212 - 2 x 12 "aktívny PA subwoofer s DSP
LD Systems DDQ Sub 212 je výkonný aktívny subwoofer s dvoma špeciálne vyvinutými 12 " basovými reproduktormi s digitálnym spracovaním signálu, špeciálne navrhnutými na použitie v kombinácii s širokopásmovými reproduktormi série DDQ. Zaisťuje hlbokú reprodukciu basov v systémoch PA. Môžu byť tiež použité so satelitmi / vrchmi iných výrobcov. Dva basové reproduktory s 3 "cievkami a neodymovými magnetmi sú poháňané dvoma 700-wattovými modulmi zosilňovača výkonu Hypex triedy D s vysoko účinným spínacím zdrojom a výstupom RMS 1 400 wattov. DDQ Sub 212 dosahuje maximálny tlak zvuku 132 dB v priebehu krivky frekvenčnej odozvy 38 - 120 Hz.
• Šírka 420 mm
• Výška 620 mm
• Hĺbka 543 mm
• Váha 34,5 kg

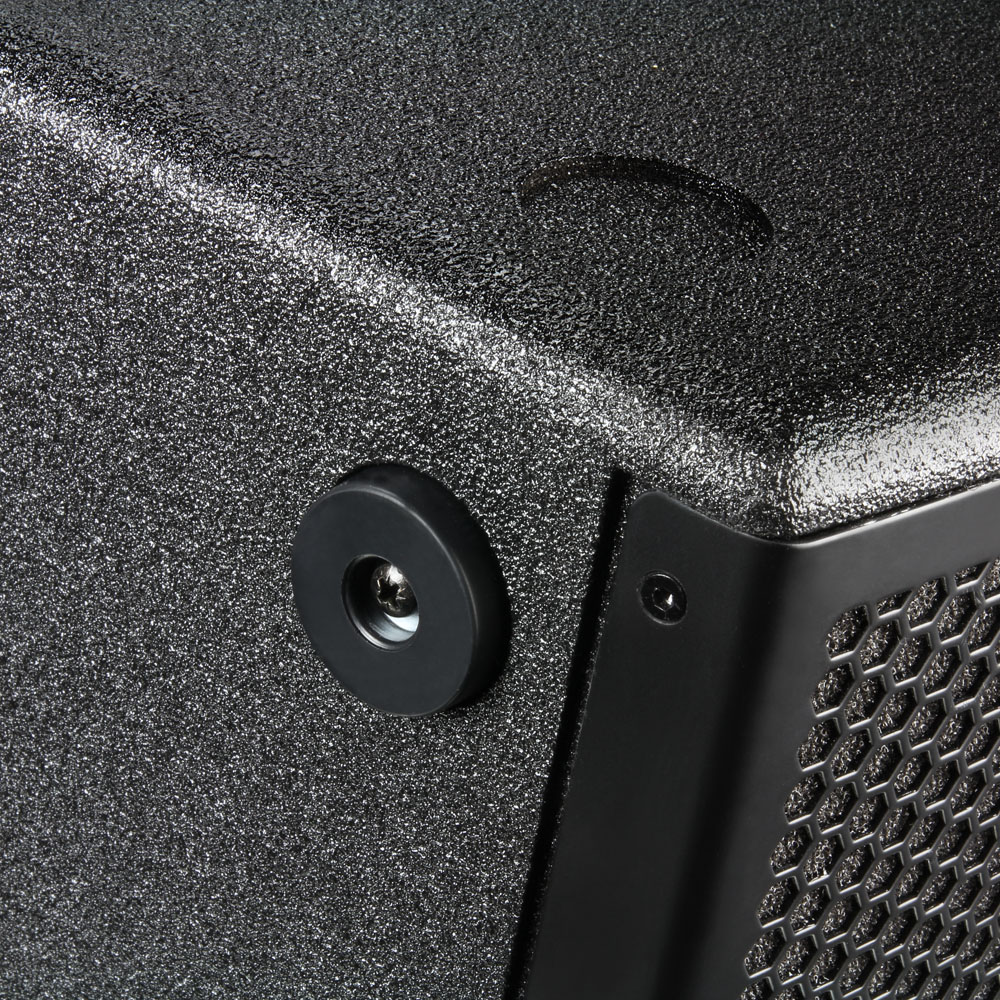

• Vlastnosti: 15 x DSP predvoľby so 4 voliteľnými nastaveniami kardioidov a 7 voliteľnými výhybkami (80 - 120 Hz), 2 x závitová príruba (M20), 3 x rohové držadlá, pripravené na montáž koliesok
The LD Systems DDQ Sub 212 is a powerful active subwoofer with two specially developed 12" bass s...peakers and digital signal processing, specially conceived for use in combination with the full-range speakers of the DDQ Series. It ensures deep bass reproduction in PA systems and can also be matched to the satellites/tops of other manufacturers.The two woofers with 3" coils and neodymium magnets are driven by two 700-watt Hypex Class D power amplifier modules with a highly efficient switching power supply and a RMS output of 1400 watts. The DDQ Sub 212 attains a maximum sound-level pressure of 132 dB over a frequency response curve of 38 – 120 Hz.The Sharc DSP programmed especially for the DDQ subwoofers has a large dynamic range of 127dB/113 dB (ADC/DAC) and handles frequency and phase correction in addition to providing extensive protection functions for reliable operation. Its 1ms look ahead limiter provides for distortion-free reproduction even at maximum volume levels. Seven DSP Presets permit selectable crossover frequencies between 80 and 120Hz. Eight additional presets make it possible to realize cardioid configurations of 2 or 3 subwoofers, whereby it is possible to attain rear attenuation of up to 20dB. The inputs and outputs as well as the separate mono output with a 100Hz high-pass filter use Neutrik XLR sockets. Additional features are LED function indicators and a ground lift switch; the volume and preset encoders can be deactivated to prevent inadvertent adjustment.The compact band-pass enclosure of the DDQ Sub 212 is made of 18mm thick multiplex with an extremely durable polyurethane finish. It is prepared for mounting of casters and features comfortable handles and two M20 threaded flanges.
VIAC

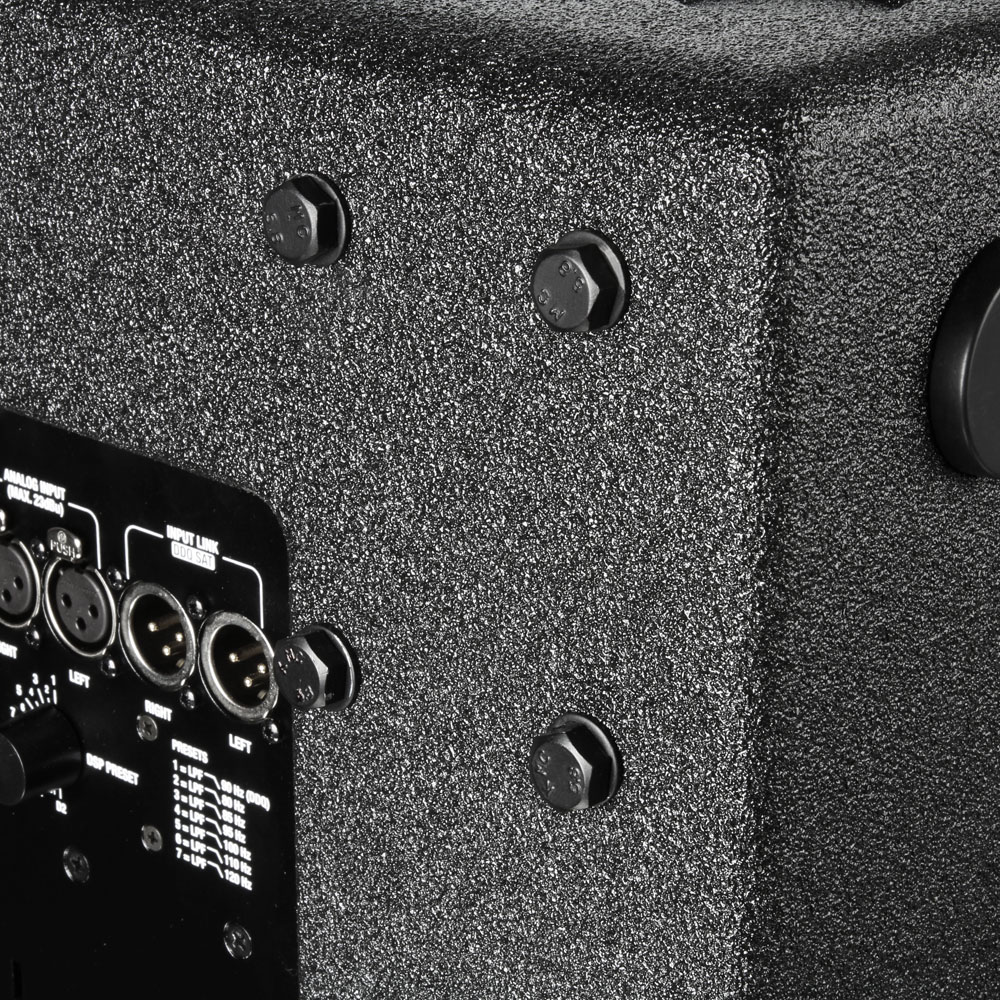

Product typePA subwooferTypePoweredDesignDSP controlledLow/mid driver dimensions2 x 12 "Woofer size2 x 304.8 mm mmWoofer magnetNeodymiumWoofer brandCustom-madeWoofer voice coil3 "Woofer voice coil (mm)76.5 mmAmplifierClass DRMS1400 (2 x 700) WFrequency response38 - 120 HzMax. SPL (continuous)124 dBMax. SPL (peak)132 dBProtection circuitsDSP-based "look ahead" limiter, over-current, RMS power supply limiter, RMS speaker limiter, short circuitControlsDSP presets, DSP/ Gain enable, Gain, ground lift, PowerIndicatorsDSP/ Gain disable, Operate, Peak Limiter, SignalLine inputs2Line input connectorsXLRLine outputs3 (2x Input Link, 1x Sat Out with 100Hz high-pass)Line output connectorsXLROperating voltageSwitching power supply, 180 - 264 V ~ / 47 - 63 HzCabinet material18 mm PlywoodCabinet surfacePolyureaCabinet constructionBandpassWidth420 mmHeight620 mmDepth543 mmWeight34,5 kgFeatures15 x DSP presets with 4 selectable cardioid setups and 7 selectable crossover frequencies (80-120Hz), 2 x threaded flange (M20), 3 x corner handles, prepared for mounting of casters
