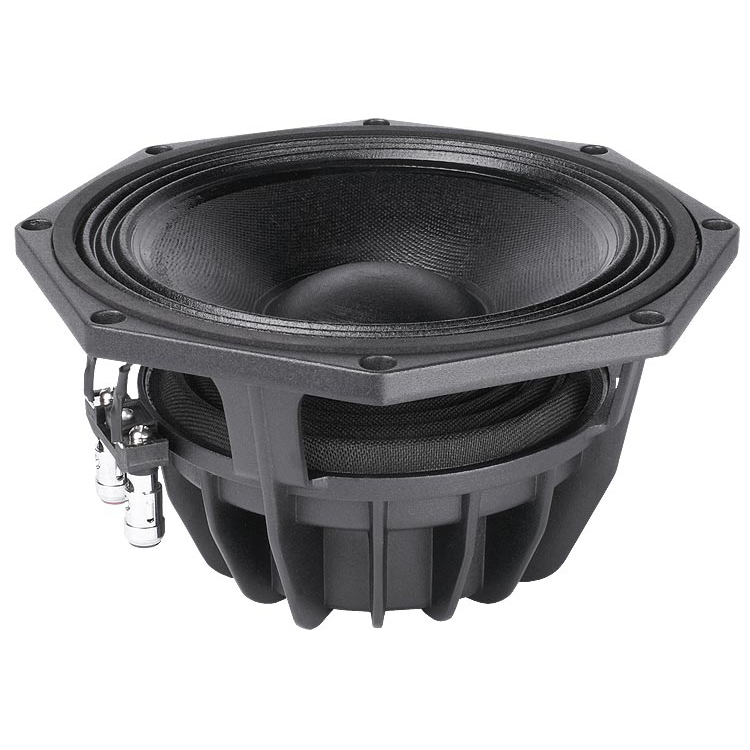

Product typeLoudspeaker ChassisTypePANominal Diameter8 ", 200 mmVoice Coil2 ", 52 mmOverall diameter203.9 mmPitch Circle Diameter210 mmCut- out Measurement184 mmMounting holes8Diameter of fixing holes6 mmDepth116.7 mmNominal Impedance8 Ohm(s)Nominal Load Capacity200 Wmaximum rated load400 WSensitivity (1 W / 1 m)94 dBFrequency response70 - 5000 HzVoice Coil MaterialAluminumMagnetNeodymiumDepth of the magnetic gap8 mmThiele & Small ParameterFs (Resonance Frequency)60 HzRe (DC resistance)11.8 Ohm(s)Qms (mechanical quality)8.8Le (inductance of the voice coil)0.87 mHQes (electrical quality)0.49Qts (overall quality)0.47Vas (equivalent volume)14.4Mms (moving mass)26.7 gBL (power factor)15.5 T/mXmax (maximum displacement)8.65 mmCms (elasticity of the suspension)0.26 mm/NSd (membrane area)196 cm2Rms (mechanical loss resistance)1.14 kg/sWeight2,1 kg
