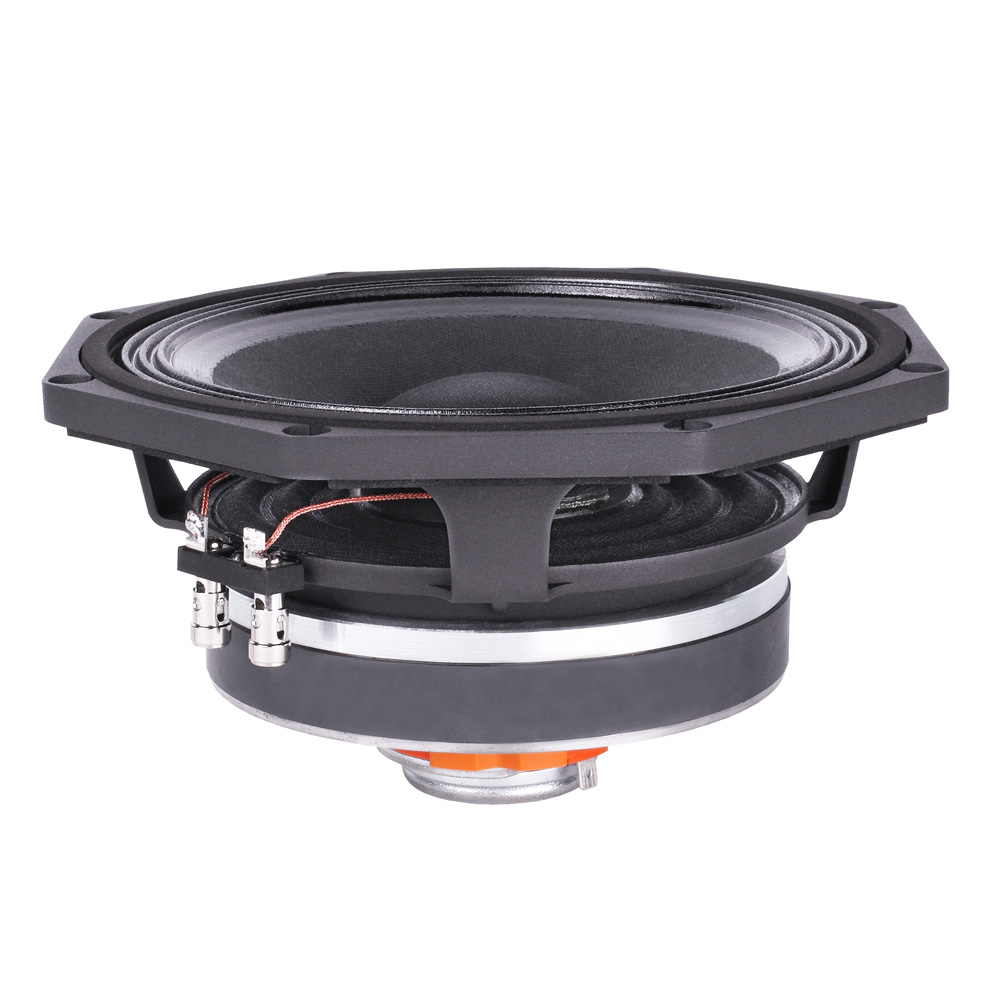

Product typeLoudspeaker ChassisTypePALoudspeaker dimensions8 "Loudspeaker dimensions (mm)200 mmOverall diameter207.9 mmPitch Circle Diameter210 mmCut- out Measurement183 mmMounting holes8Diameter of fixing holes6 mmTotal depth111.7 mmWeight3,6 kgNominal impedance8 Ohm(s)RMS250 WSensitivity (1 W / 1 m)94 dBFrequency response75 - 18.000 HzWoofer characteristicsWoofer voice coil2.5 "Woofer voice coil (mm)65 mmVoice Coil Material WooferAluminumWoofer magnetFerriteMagnetic gap depth Woofer8 mmThiele & Small ParameterFs (Resonance Frequency)76 HzRe (DC resistance)5.5 / 6 Ohm(s)Qms (mechanical quality)9.5Le (inductance of the voice coil)0.67 mHQes (electrical quality)0.43Qts (overall quality)0.42Vas (equivalent volume)11.7 lMms (moving mass)22.3 gBL (power factor)11.6 T/mXmax (maximum displacement)4.92 mmCms (elasticity of the suspension)0.2 mm/NSd (membrane area)205 cm2Rms (mechanical loss resistance)1 kg/sHF Driver characteristicsHF driver voice coil0.98 "HF Driver Voice Coil25 mmNominal Impedance HF driver8 Ohm(s)Nominal Load HF driver15 WMaximum Load HF driver30 WSensitivity HF driver (1 W / 1 m)104 dBFrequency range HF driver1.500 - 18.000 HzVoice Coil Carrier HF driverKaptonDiaphragm material HF driverKetone PolymerDispersion (H x V)90
