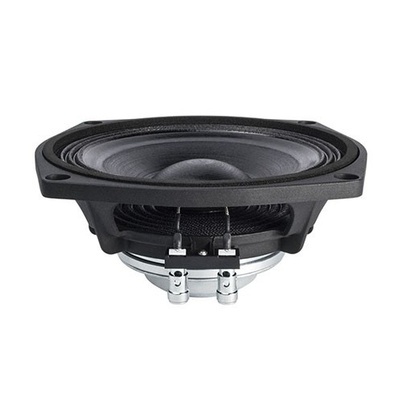

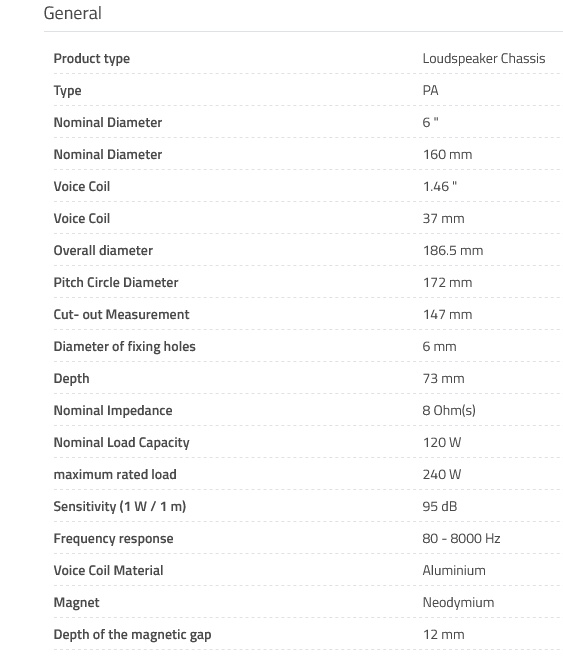

Product type : Loudspeaker Chassis
Type . PA
Nominal Diameter : 6 ", 160 mm
Voice Coil : 1.46 ", 37 mm
Overall diameter : 186.5 mm
Pitch Circle Diameter : 172 mm
Cut- out Measurement : 147 mm
Diameter of fixing holes .: 6 mm
Depth : 73 mm
Nominal Impedance : 8 Ohm
Nominal Load Capacity : 120 W
Maximum rated load : 240 W
Sensitivity (1 W / 1 m) : 95 dB
Frequency response : 80 - 8000 Hz
Voice Coil Material : Aluminum
Magnet : Neodymium
Depth of the magnetic gap : 12 mm Thiele & Small Parameter
Fs (Resonance Frequency) : 90 Hz
Re (DC resistance) : 5.9 Ohm(s)
Qms (mechanical quality) : 6.6
Le (inductance of the voice coil) : 0.28 mH
Qes (electrical quality) : 0.35
Qts (overall quality) : 0.33
Vas (equivalent volume) : 4.86
Mms (moving mass): 12.5 g
Xmax (maximum displacement) : 5 mm
Cms (elasticity of the suspension) : 0.25 mm/N
Sd (membrane area): 117 cm2
Rms (mechanical loss resistance): 1.07 kg/s
Weight : 1 kg
