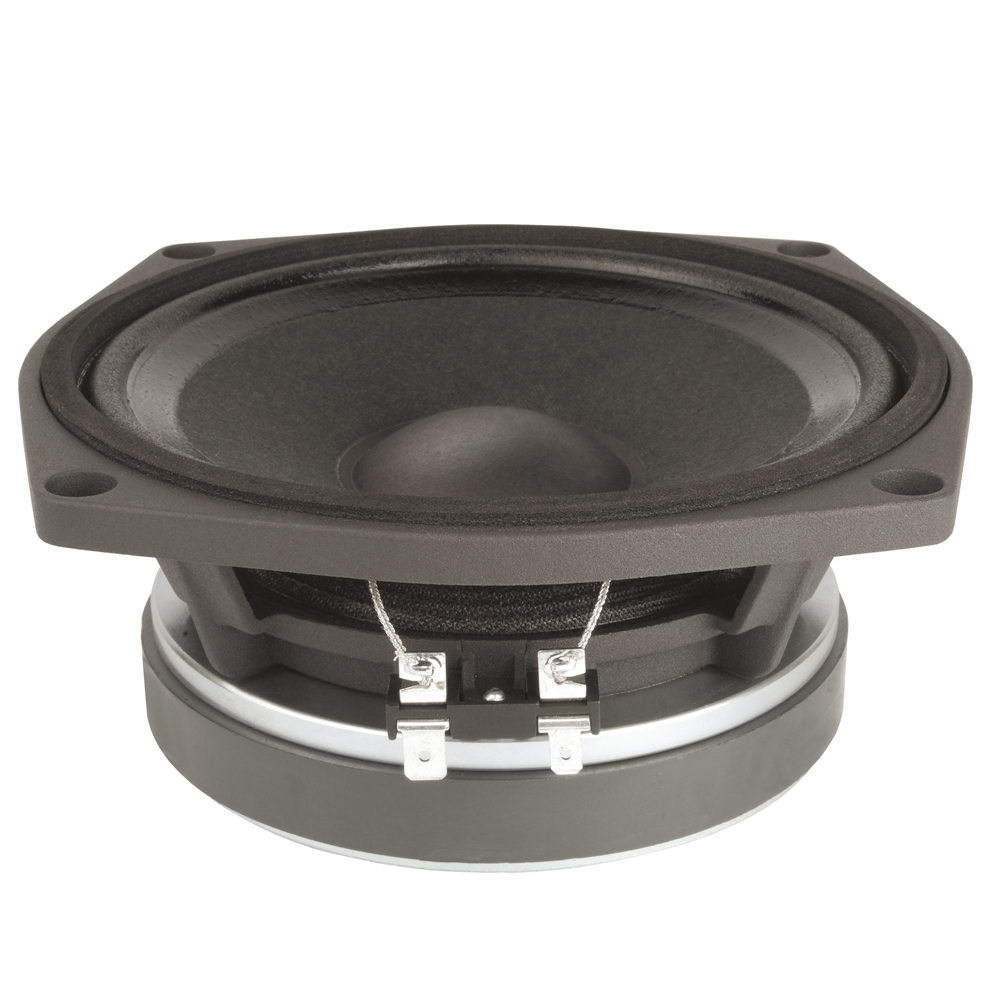

Product typeLoudspeaker ChassisTypePANominal Diameter6 ", 160 mmVoice Coil1.46 ", 37 mmOverall diameter162 mmPitch Circle Diameter172 mmCut- out Measurement147 mmMounting holes4Diameter of fixing holes6 mmDepth77.5 mmNominal Impedance8 Ohm(s)Nominal Load Capacity150 Wmaximum rated load300 WSensitivity (1 W / 1 m)96 dBFrequency response100 - 6000 HzVoice Coil MaterialAluminumMagnetFerriteDepth of the magnetic gap6 mmThiele & Small ParameterFs (Resonance Frequency)100 HzRe (DC resistance)6 Ohm(s)Qms (mechanical quality)4.2Le (inductance of the voice coil)0.22 mHQes (electrical quality)0.6Qts (overall quality)0.5Vas (equivalent volume)5Mms (moving mass)12 gBL (power factor)8.5 T/mXmax (maximum displacement)2.75 mmCms (elasticity of the suspension)0.2 mm/NSd (membrane area)129 cm2Rms (mechanical loss resistance)1.8 kg/sWeight2,2 kg
