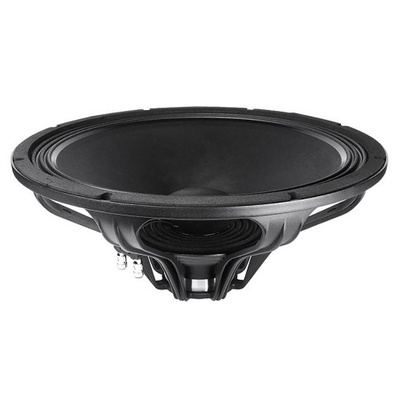

Product type : Loudspeaker Chassis
Type : PA
Nominal Diameter : 18 "
Nominal Diameter : 460 mm
Voice Coil : 3 "
Voice Coil : 77 mm
Overall diameter : 460 mm
Pitch Circle Diameter : 440 mm
Cut- out Measurement . 424 mm
Mounting holes : 8
Diameter of fixing holes : 6 mm
Depth : 202 mm
Nominal Impedance : 16 Ohm(s)
Nominal Load Capacity : 600 W
Maximum rated load : 1200 W
Sensitivity (1 W / 1 m) : 99 dB
Frequency response : 30 - 3150 Hz
Voice Coil Material : copper
Magnet : Neodymium
Depth of the magnetic gap : 10.5 mm
