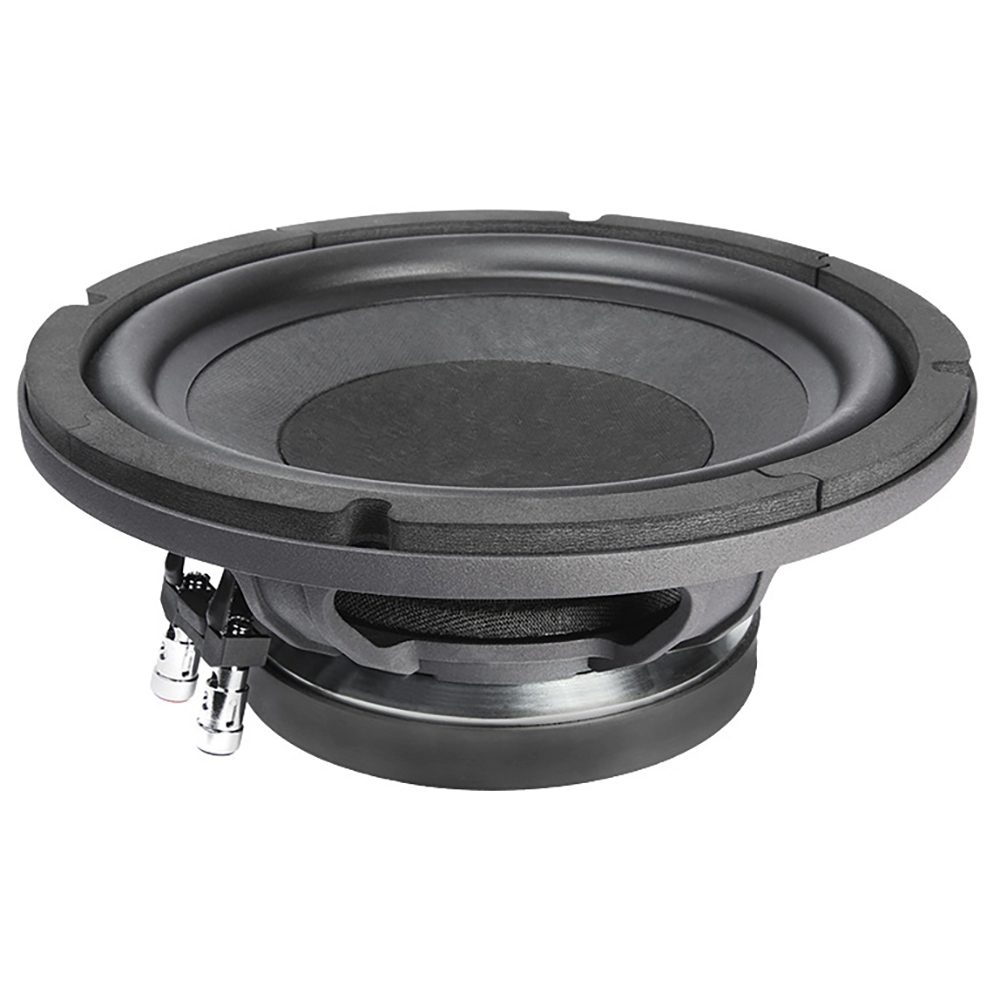

Product typeLoudspeaker ChassisTypePANominal Diameter10 ", 250 mmVoice Coil2.56 ", 65 mmOverall diameter261 mmPitch Circle Diameter246 mmCut- out Measurement230 mmMounting holes4Diameter of fixing holes6 mmDepth116.5 mmNominal Impedance4 Ohm(s)Nominal Load Capacity300 Wmaximum rated load600 WSensitivity (1 W / 1 m)91 dBFrequency response40 - 2500 HzVoice Coil MaterialAluminumMagnetFerriteDepth of the magnetic gap8 mmThiele & Small ParameterFs (Resonance Frequency)40 HzRe (DC resistance)3.2 Ohm(s)Qms (mechanical quality)6.2Le (inductance of the voice coil)0.45 mHQes (electrical quality)0.33Qts (overall quality)0.31Vas (equivalent volume)36.1Mms (moving mass)64.5 gBL (power factor)12.5 T/mXmax (maximum displacement)7.17 mmCms (elasticity of the suspension)0.24 mm/NSd (membrane area)322 cm2Rms (mechanical loss resistance)2.61 kg/sWeight4,2 kg
