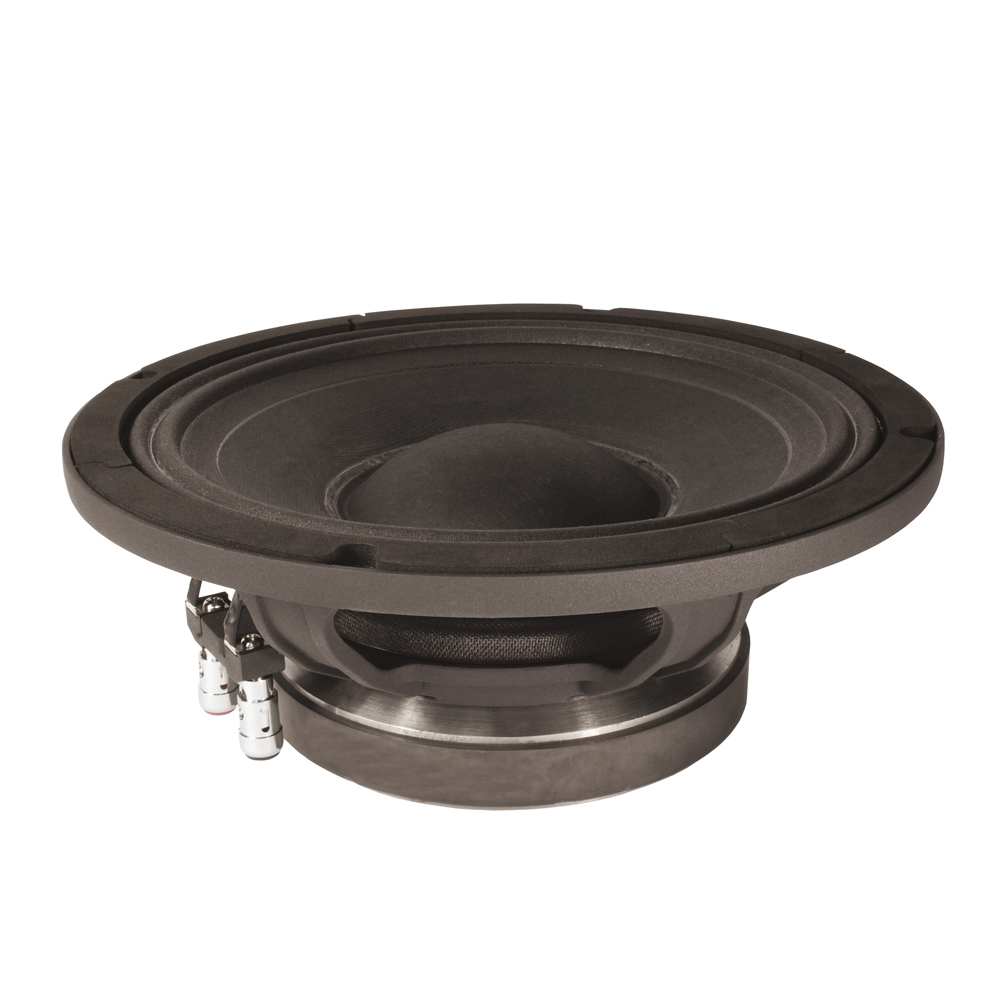

Product typeLoudspeaker ChassisTypePANominal Diameter10 ", 250 mmVoice Coil2.5 ", 65 mmOverall diameter261 mmPitch Circle Diameter246 mmCut- out Measurement230 mmMounting holes4Diameter of fixing holes6 mmDepth109 mmNominal Impedance8 Ohm(s)Nominal Load Capacity300 Wmaximum rated load600 WSensitivity (1 W / 1 m)98 dBFrequency response60 - 4000 HzVoice Coil MaterialAluminumMagnetNeodymiumDepth of the magnetic gap8 mmThiele & Small ParameterFs (Resonance Frequency)60 HzRe (DC resistance)5.4 Ohm(s)Qms (mechanical quality)5.7Le (inductance of the voice coil)0.64 mHQes (electrical quality)0.36Qts (overall quality)0.34Vas (equivalent volume)28Mms (moving mass)36.9 gBL (power factor)14.4 T/mXmax (maximum displacement)4.92 mmCms (elasticity of the suspension)0.19 mm/NSd (membrane area)322 cm2Rms (mechanical loss resistance)2.44 kg/sWeight4,1 kg
