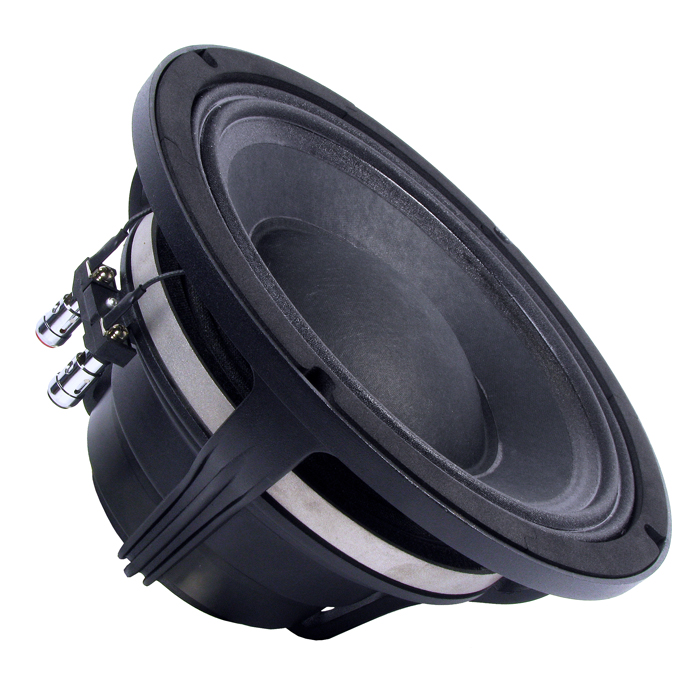

Product typeLoudspeaker ChassisTypePANominal Diameter10 ", 250 mmVoice Coil4 ", 100 mmOverall diameter261 mmPitch Circle Diameter246 mmCut- out Measurement230 mmMounting holes4Diameter of fixing holes6 mmDepth141.3 mmNominal Impedance8 Ohm(s)Nominal Load Capacity700 Wmaximum rated load1400 WSensitivity (1 W / 1 m)96 dBFrequency response60 - 4000 HzVoice Coil MaterialAluminumMagnetNeodymiumDepth of the magnetic gap12 mmThiele & Small ParameterFs (Resonance Frequency)60 HzRe (DC resistance)5.5 Ohm(s)Qms (mechanical quality)6.5Le (inductance of the voice coil)0.85 mHQes (electrical quality)0.25Qts (overall quality)0.24Vas (equivalent volume)13.66Mms (moving mass)72.5 gBL (power factor)24.5 T/mXmax (maximum displacement)9 mmCms (elasticity of the suspension)0.01 mm/NSd (membrane area)315 cm2Rms (mechanical loss resistance)4.2 kg/sWeight5,2 kg
