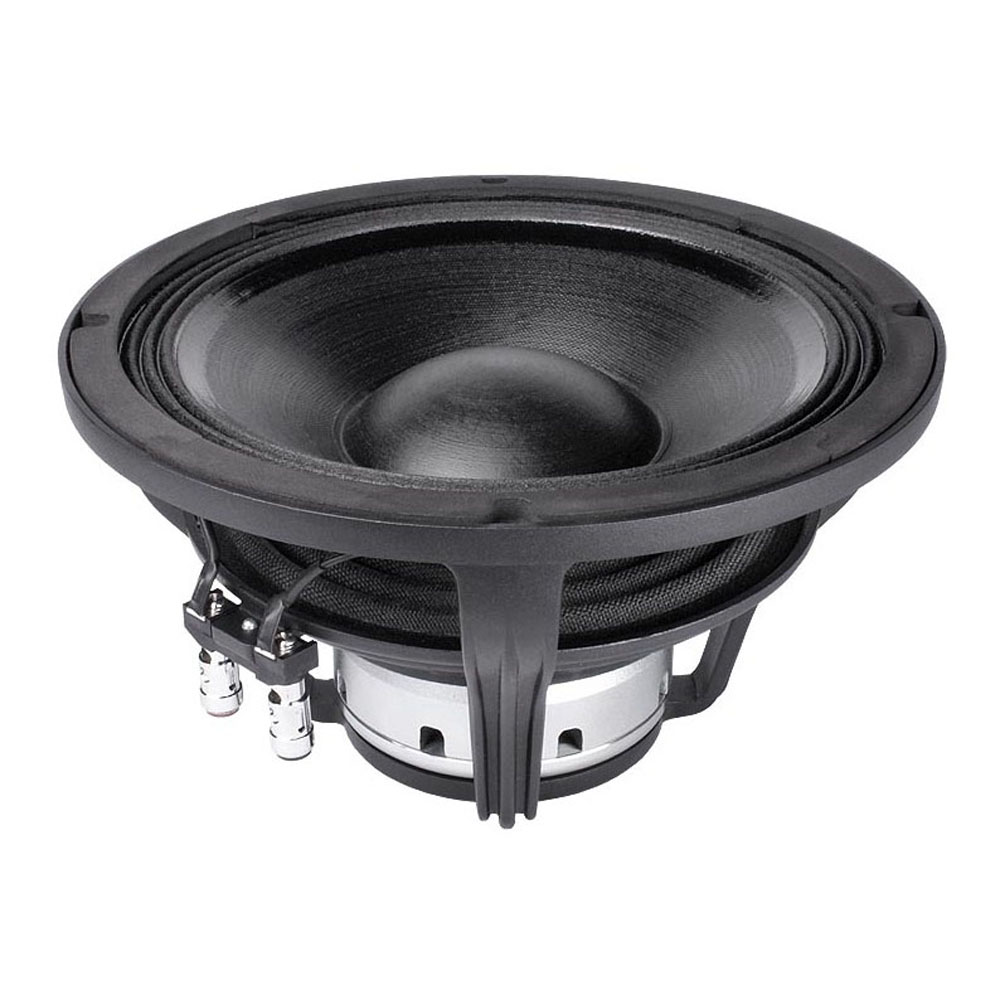

Product typeLoudspeaker ChassisTypePANominal Diameter10 ", 250 mmVoice Coil3 ", 77 mmOverall diameter261 mmPitch Circle Diameter246 mmCut- out Measurement232 mmMounting holes4Diameter of fixing holes6 mmDepth141.3 mmNominal Impedance16 Ohm(s)Nominal Load Capacity600 Wmaximum rated load1200 WSensitivity (1 W / 1 m)97 dBFrequency response60 - 4000 HzVoice Coil MaterialAluminumMagnetNeodymiumDepth of the magnetic gap12 mmThiele & Small ParameterFs (Resonance Frequency)60 HzRe (DC resistance)5.1 Ohm(s)Qms (mechanical quality)11.1Le (inductance of the voice coil)0.9 mHQes (electrical quality)0.3Qts (overall quality)0.29Vas (equivalent volume)20.5Mms (moving mass)50.3 gBL (power factor)18 T/mXmax (maximum displacement)7.25 mmCms (elasticity of the suspension)0.14 mm/NSd (membrane area)321 cm2Rms (mechanical loss resistance)1.7 kg/sWeight3,7 kg
