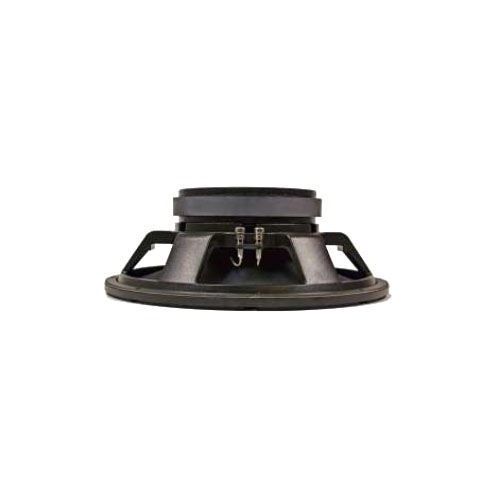

Eminence SPF 400 A - 8 Ohms Paul Franklin Loudspeaker Chassis

15" Version of the poplular PF-350 12". Offering complete tonal Balance from Top to Bottom, this Attack-Sensitive and Powerful 15 inch Model was co-developed with Veteran Session and Touring pro Paul Franklin. With headroom to spare, the PF-400?s tone transfers from low volume to very loud with warmth and clarity, making it ideal for Pedal Steelers and 6-stringers alike.

Hmotnosť

460,33

374,25 € bez DPH

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

Product typeLoudspeaker ChassisTypePANominal Diameter15 ", 381 mmVoice Coil3 ", 76.2 mmOverall diameter388.1 mmPitch Circle Diameter357.1 mmCut- out Measurement352.3 mmDiameter of fixing holes6.4 mmDepth152.4 mmNominal Impedance8 Ohm(s)Nominal Load Capacity400 WSensitivity (1 W / 1 m)102 dBFrequency response60 - 3600 HzVoice Coil MaterialcopperMagnetFerriteDepth of the magnetic gap9.53 mmThiele & Small ParameterFs (Resonance Frequency)58 HzRe (DC resistance)7.45 Ohm(s)Qms (mechanical quality)6.37Le (inductance of the voice coil)0.46 mHQes (electrical quality)0.55Qts (overall quality)0.5Vas (equivalent volume)120.85Mms (moving mass)67 gBL (power factor)18.33 T/mXmax (maximum displacement)0.79 mmCms (elasticity of the suspension)0.11 mm/NSd (membrane area)889.6 cm2Weight10,25 kg
