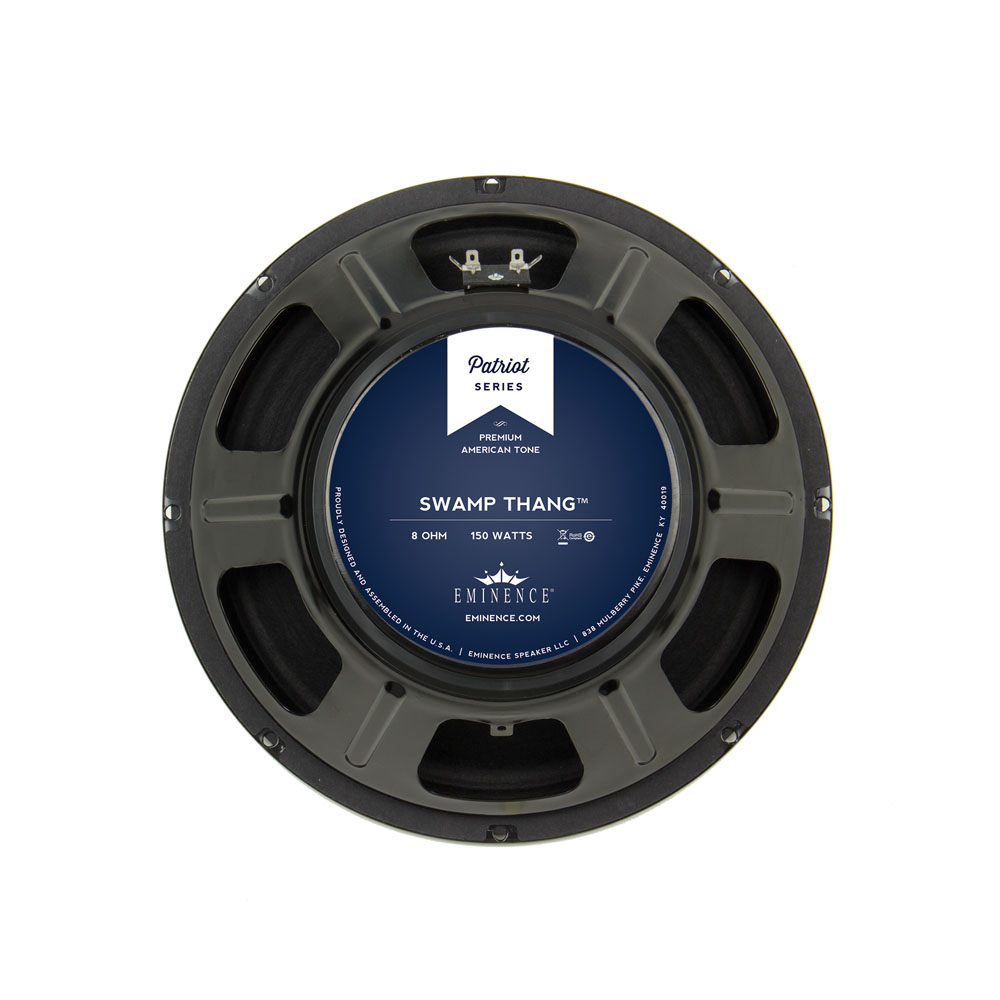

Product typeLoudspeaker ChassisTypeGuitarsNominal Diameter12 ", 304.8 mmVoice Coil2 ", 50.8 mmOverall diameter305.1 mmPitch Circle Diameter295.4 mmCut- out Measurement278.1 mmDiameter of fixing holes6.4 mmDepth132 mmNominal Impedance8 Ohm(s)Nominal Load Capacity150 WSensitivity (1 W / 1 m)102 dBFrequency response70 - 5000 HzVoice Coil MaterialcopperMagnetFerriteDepth of the magnetic gap7.92 mmThiele & Small ParameterFs (Resonance Frequency)97 HzRe (DC resistance)6.92 Ohm(s)Qms (mechanical quality)14.43Le (inductance of the voice coil)0.42 mHQes (electrical quality)0.55Qts (overall quality)0.53Vas (equivalent volume)41.3Mms (moving mass)26 gBL (power factor)14.2 T/mXmax (maximum displacement)0.8 mmCms (elasticity of the suspension)0.1 mm/NSd (membrane area)532.4 cm2Weight5,43 kg
