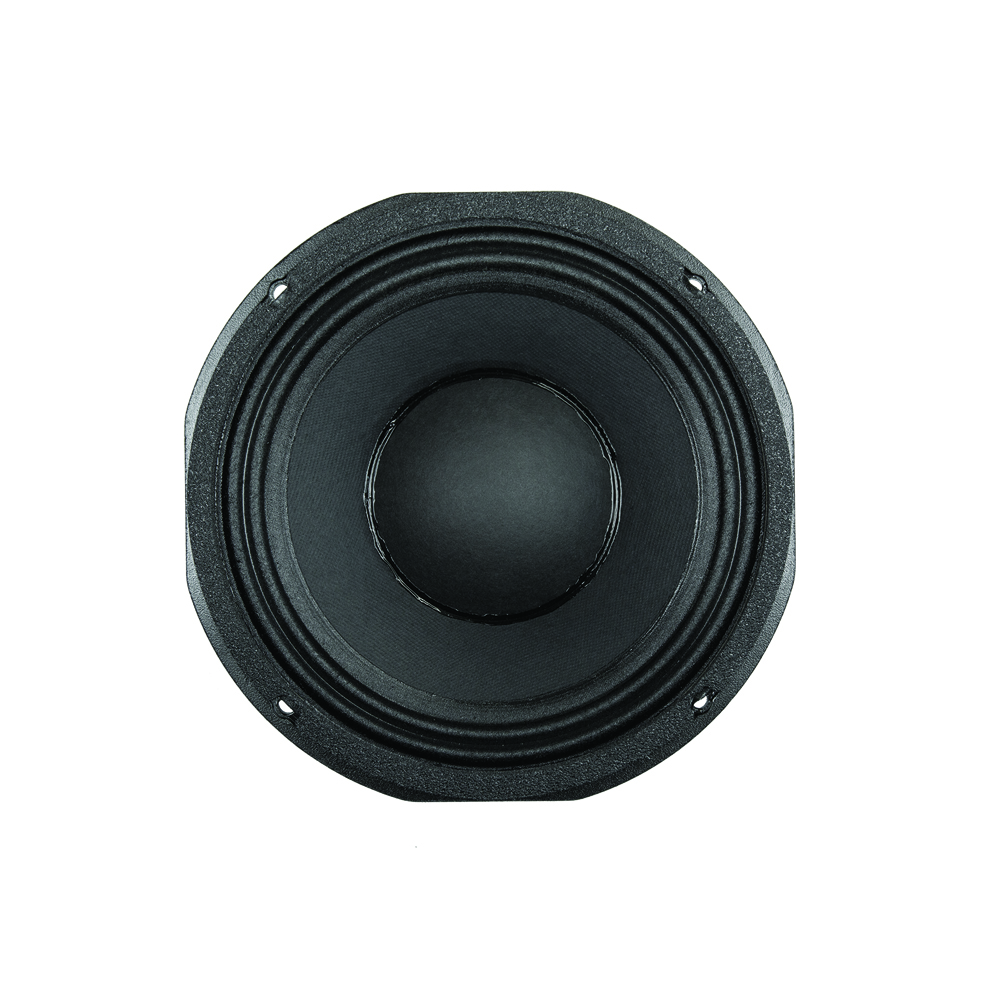

Eminence Legend CA 1059 A - 10" loudspeaker 500 W 8 Ohm

A larger magnet version of the popular Legend CA10, the Legend CA1059 is a 10” cast-frame bass guitar speaker modeled after the original OEM spec with the punch and clarity that defined the sound of many popular Eden cabinets throughout the decades. Like the CA10, the CA1059’s chassis is truncated on the sides for tight fitting in 2x, 4x, and 8x10 configurations. Along with higher Xmax, the CA1059 also features a larger 59 oz. ferrite magnet, producing higher efficiency, and lower Qts for dampening than its smaller magnet version.

Hmotnosť

255,53

207,75 € bez DPH

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

Product typeLoudspeaker ChassisTypeguitarNominal Diameter10 ", 254 mmVoice Coil2 ", 51 mmOverall diameter266.7 mmPitch Circle Diameter246.5 mmCut- out Measurement228.9 mmDiameter of fixing holes7.6 mmDepth115.1 mmNominal Impedance8 Ohm(s)Nominal Load Capacity250 Wmaximum rated load500 WSensitivity (1 W / 1 m)98.7 dBFrequency response50 - 3200 HzVoice Coil MaterialAluminumMagnetFerriteThiele & Small ParameterFs (Resonance Frequency)48 HzRe (DC resistance)5.53 Ohm(s)Qms (mechanical quality)3.27Le (inductance of the voice coil)0.11 mHQes (electrical quality)0.28Qts (overall quality)0.26Vas (equivalent volume)71.47Mms (moving mass)27 gBL (power factor)12.54 T/mXmax (maximum displacement)4.72 mmCms (elasticity of the suspension)0.42 mm/NSd (membrane area)350.1 cm2Weight5,08 kg
