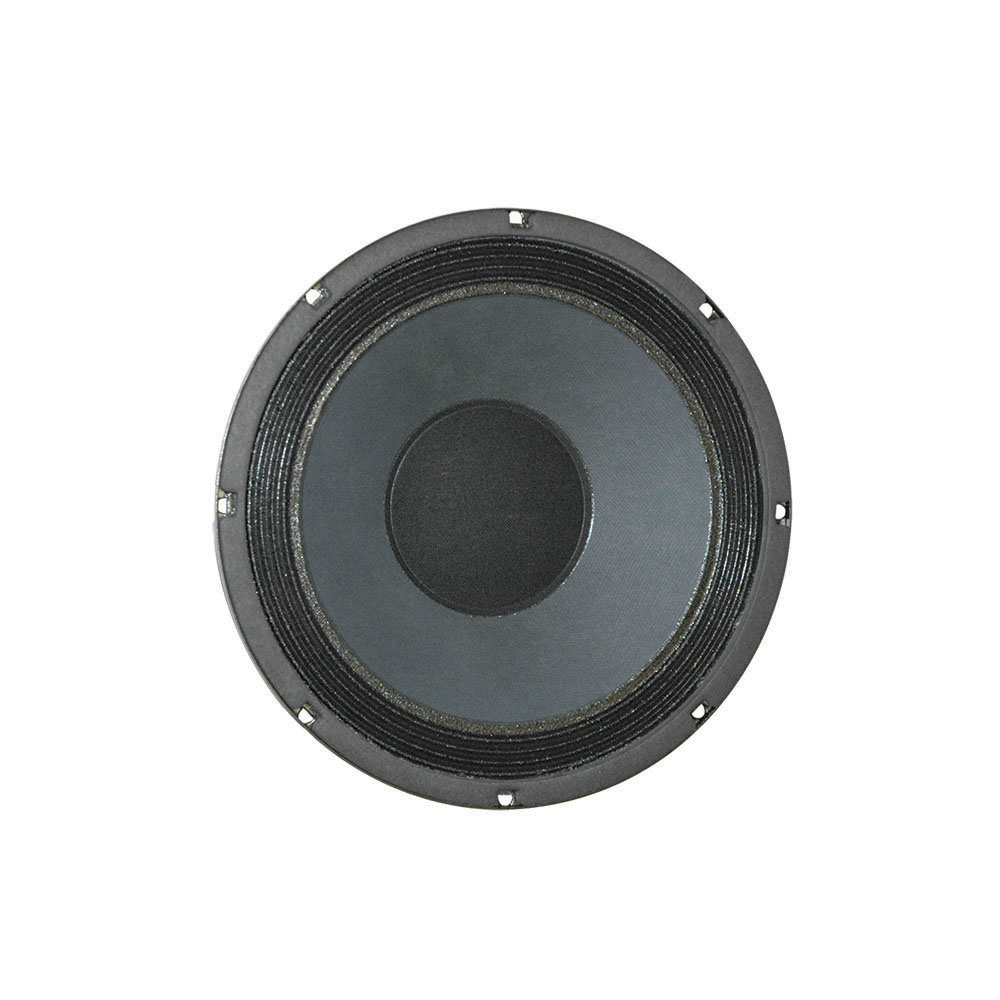

Product typeLoudspeaker ChassisTypeGuitarsNominal Diameter10 ", 254 mmVoice Coil2 ", 50.8 mmOverall diameter256.03 mmPitch Circle Diameter245.4 mmCut- out Measurement229.87 mmDiameter of fixing holes6.35 mmDepth107.95 mmNominal Impedance4 Ohm(s)Nominal Load Capacity200 Wmaximum rated load400 WSensitivity (1 W / 1 m)90.5 dBFrequency response40 - 2000 HzVoice Coil MaterialcopperMagnetFerriteDepth of the magnetic gap7.95 mmThiele & Small ParameterFs (Resonance Frequency)34.52 HzRe (DC resistance)2.7 Ohm(s)Qms (mechanical quality)10.61Le (inductance of the voice coil)0.68 mHQes (electrical quality)0.4Qts (overall quality)0.38Vas (equivalent volume)103.83Mms (moving mass)33.8 gBL (power factor)7.1 T/mXmax (maximum displacement)6.2 mmCms (elasticity of the suspension)0.63 mm/NSd (membrane area)344.9 cm2Weight3,855 kg
