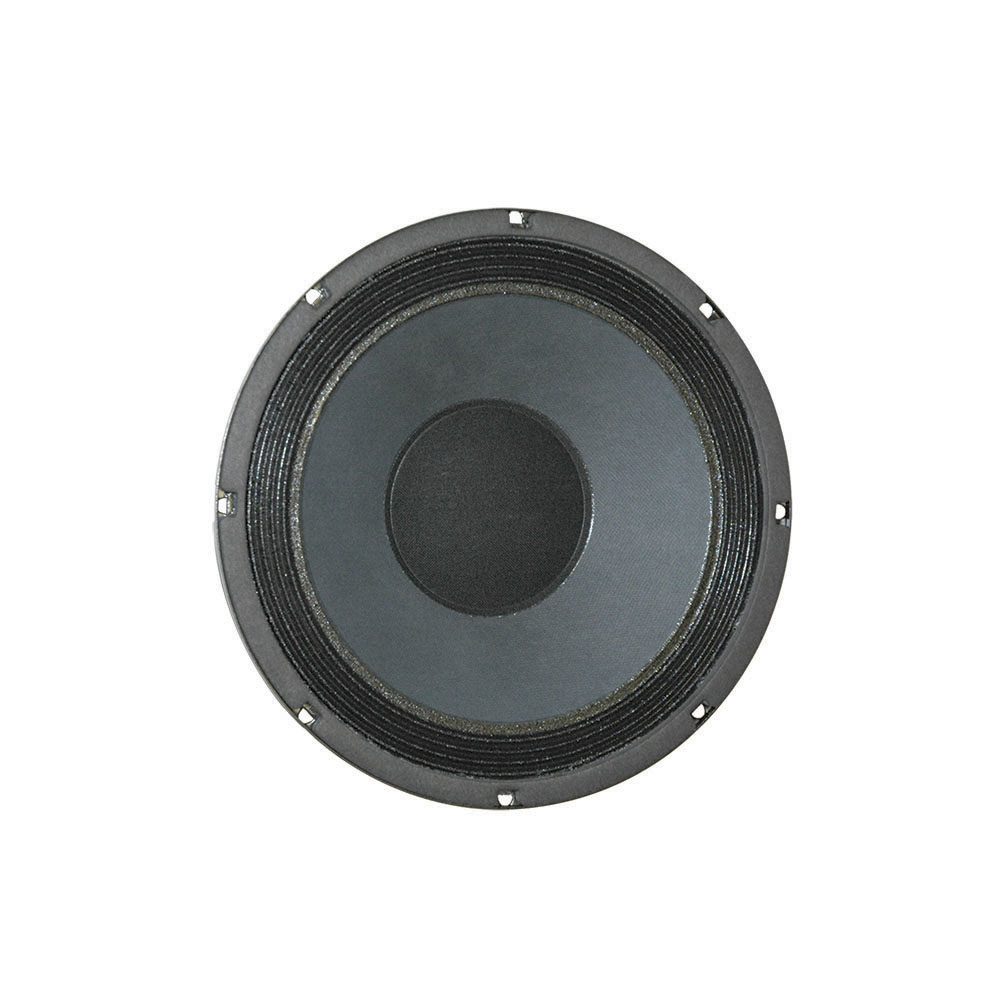

Product typeLoudspeaker ChassisTypeGuitarsNominal Diameter10 ", 254 mmVoice Coil2 ", 50.8 mmOverall diameter256.1 mmPitch Circle Diameter245.4 mmCut- out Measurement229.7 mmDiameter of fixing holes6.4 mmDepth108 mmNominal Impedance8 Ohm(s)Nominal Load Capacity200 Wmaximum rated load400 WSensitivity (1 W / 1 m)92 dBFrequency response40 - 2000 HzVoice Coil MaterialcopperMagnetFerriteDepth of the magnetic gap7.92 mmThiele & Small ParameterFs (Resonance Frequency)35 HzRe (DC resistance)5.59 Ohm(s)Qms (mechanical quality)5.36Le (inductance of the voice coil)0.83 mHQes (electrical quality)0.47Qts (overall quality)0.43Vas (equivalent volume)91.2Mms (moving mass)38 gBL (power factor)10 T/mXmax (maximum displacement)6.2 mmCms (elasticity of the suspension)0.54 mm/NSd (membrane area)334.5 cm2Weight3,841 kg
