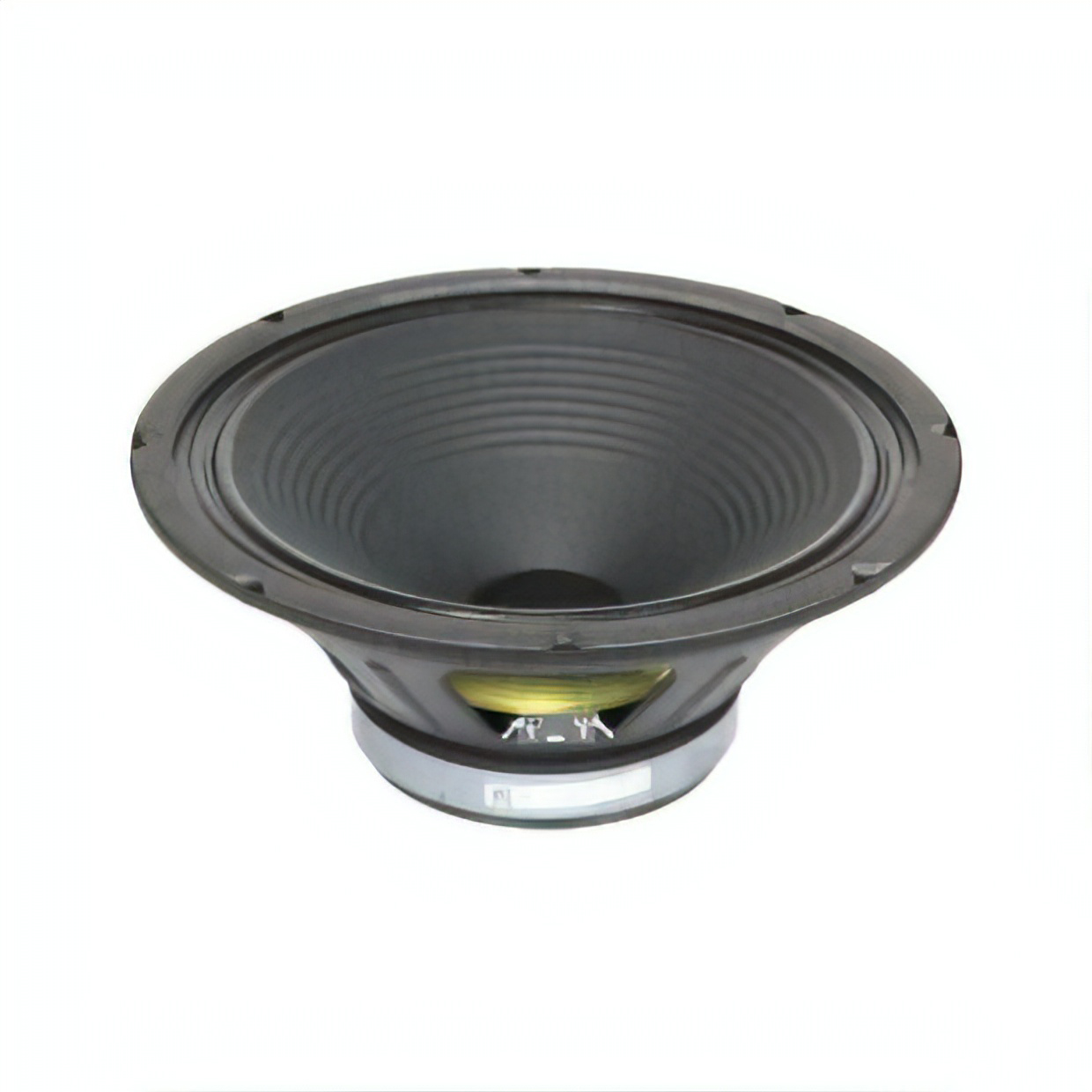

Eminence DV 77 A - 12" Speaker 70 W 8 Ohm

From the beginning, the focus of this speaker was balance, response, and a very musical tonality. Delivering tight punchy lows, thick harmonically complex mid-range & detailed highs without excess fizz. Not a clone or a copy, this speaker was designed in the studio and proven on stage.

4049521522239-EDV77A_3|4049521522239-EDV77A_1|4049521522239-EDV77A_2

Hmotnosť

235,40

196,17 € bez DPH

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

Product typeLoudspeaker ChassisTypeGuitarsNominal Diameter12 ", 305 mmVoice Coil1.75 ", 44 mmOverall diameter309.1 mmPitch Circle Diameter298.5 mmCut- out Measurement282.7 mmDiameter of fixing holes6.1 mmDepth158.8 mmNominal Impedance8 Ohm(s)Nominal Load Capacity70 WSensitivity (1 W / 1 m)100.7 dBFrequency response80 - 5000 HzVoice Coil MaterialcopperMagnetAlnicoThiele & Small ParameterFs (Resonance Frequency)70 HzRe (DC resistance)6.47 Ohm(s)Qms (mechanical quality)11.46Le (inductance of the voice coil)0.49 mHQes (electrical quality)0.45Qts (overall quality)0.43Vas (equivalent volume)71.19Mms (moving mass)27 gBL (power factor)13.18 T/mXmax (maximum displacement)0.79 mmCms (elasticity of the suspension)0.19 mm/NSd (membrane area)519.5 cm2Weight4,72 kg
