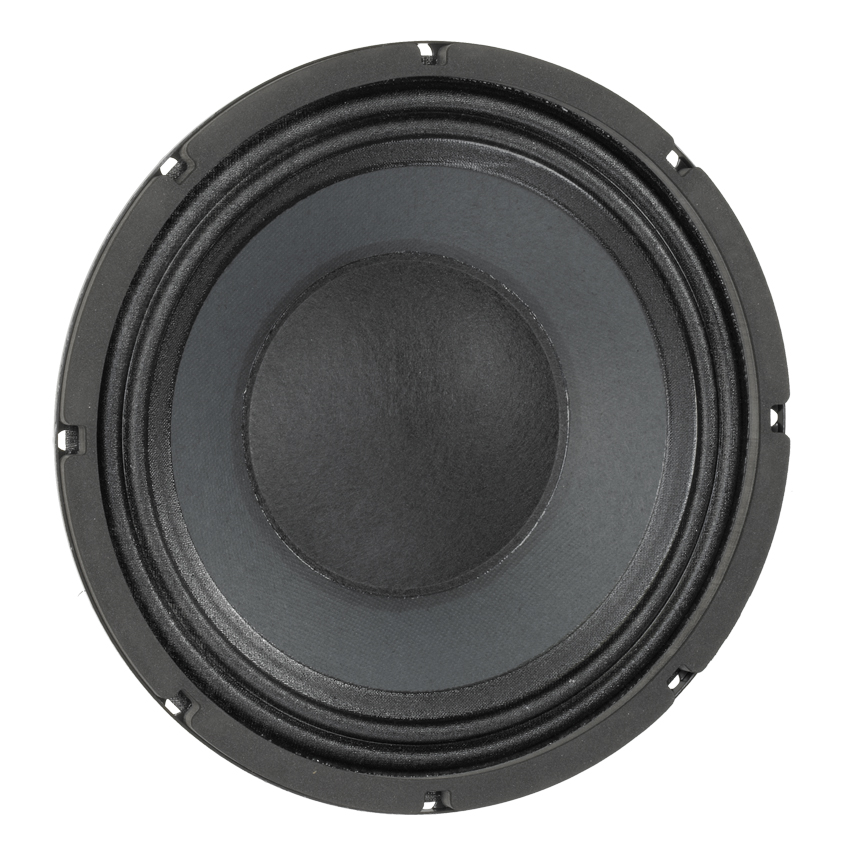

Product typeLoudspeaker ChassisTypeGuitarsNominal Diameter10 ", 254 mmVoice Coil2 ", 50.8 mmOverall diameter256 mmPitch Circle Diameter245.4 mmCut- out Measurement229.9 mmDiameter of fixing holes6.4 mmDepth108 mmNominal Impedance8 Ohm(s)Nominal Load Capacity150 Wmaximum rated load300 WSensitivity (1 W / 1 m)96.2 dBFrequency response54 - 4000 HzVoice Coil MaterialcopperMagnetNeodymiumDepth of the magnetic gap7.2 mmThiele & Small ParameterFs (Resonance Frequency)46 HzRe (DC resistance)5.02 Ohm(s)Qms (mechanical quality)4.16Le (inductance of the voice coil)0.47 mHQes (electrical quality)0.34Qts (overall quality)0.31Vas (equivalent volume)63.4Mms (moving mass)33 gBL (power factor)11.9 T/mXmax (maximum displacement)4 mmCms (elasticity of the suspension)0.36 mm/NSd (membrane area)350.1 cm2Weight1,906 kg
