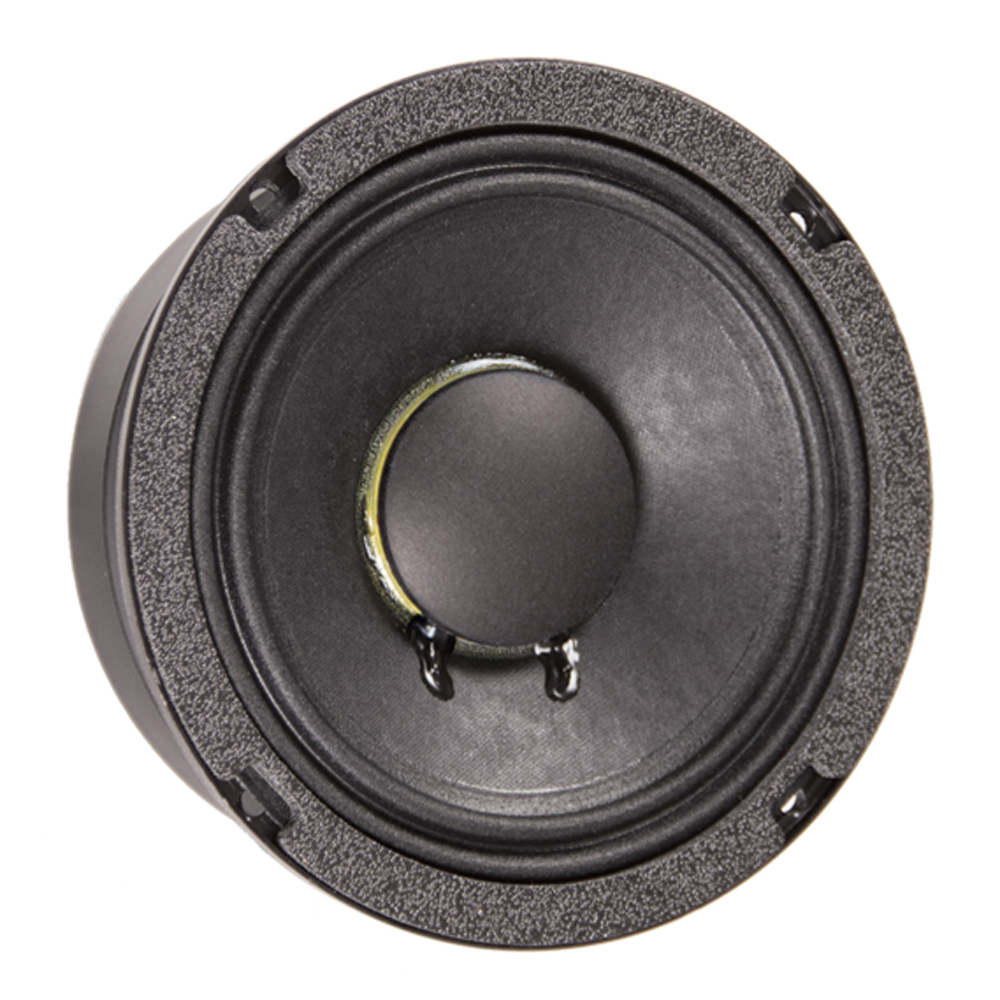

Eminence Beta 6 A - 6.5" Speaker 175 W 8 Ohms

Utilizing a 2" copper-clad aluminum wire (CCAW) voice coil immersed in an extremely linear motor assembly, the EB6A will generate serious SPL. With a 1W/1m sensitivity rating of 94 dB and a music power rating of 350 watts, the EB6A is the answer to a common quest: how to pack more power into a tight space.

Hmotnosť

121,36

98,67 € bez DPH

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

Product typeLoudspeaker ChassisTypePANominal Diameter6.5 ", 165.1 mmVoice Coil2 ", 50.8 mmOverall diameter167.39 mmPitch Circle Diameter153.9 mmCut- out Measurement144.53 mmDiameter of fixing holes5.84 mmDepth67.56 mmNominal Impedance8 Ohm(s)Nominal Load Capacity175 WSensitivity (1 W / 1 m)94 dBFrequency response84 - 4000 HzVoice Coil MaterialAluminumMagnetFerriteDepth of the magnetic gap6.35 mmThiele & Small ParameterFs (Resonance Frequency)122.57 HzRe (DC resistance)5.18 Ohm(s)Qms (mechanical quality)3.46Le (inductance of the voice coil)0.43 mHQes (electrical quality)0.66Qts (overall quality)0.56Vas (equivalent volume)3.51Mms (moving mass)10.93 gBL (power factor)8.13 T/mXmax (maximum displacement)4.5 mmCms (elasticity of the suspension)0.15 mm/NSd (membrane area)129.9 cm2Weight2,86 kg
