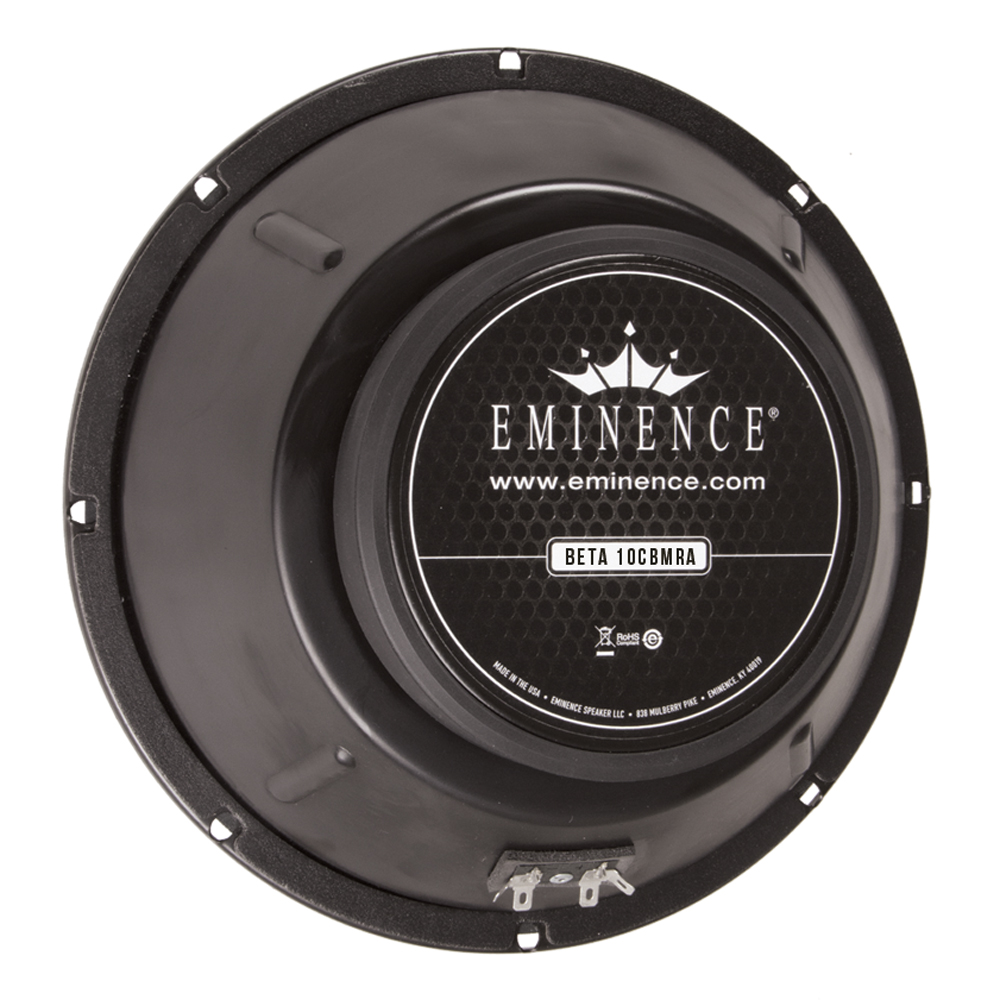

Eminence Beta 10 CBMRA - 10" Speaker 200 W 8 Ohms

With its economical stamped steel, closed-back chassis, the EB10CBMRA offers versatility by eliminating the need for separate sub-enclosures. A usable frequency range of 300Hz to 4kHz combined with 200 watts continuous power handling makes the EB10CBMRA a perfect midrange driver for high-power pro audio cabinets, or highpower/high SPL car stereo applications.

Hmotnosť

150,68

122,50 € bez DPH

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

Product typeLoudspeaker ChassisTypePANominal Diameter10 ", 254 mmVoice Coil2 ", 50.8 mmOverall diameter256.29 mmPitch Circle Diameter245.4 mmCut- out Measurement233.17 mmDiameter of fixing holes6.35 mmDepth90.42 mmNominal Impedance8 Ohm(s)Nominal Load Capacity200 WSensitivity (1 W / 1 m)99.6 dBFrequency response300 - 4000 HzVoice Coil MaterialAluminumMagnetFerriteDepth of the magnetic gap7.95 mmThiele & Small ParameterFs (Resonance Frequency)326.38 HzRe (DC resistance)5.68 Ohm(s)Qms (mechanical quality)7.14Le (inductance of the voice coil)0.48 mHQes (electrical quality)2.27Qts (overall quality)1.73Vas (equivalent volume)1.7Mms (moving mass)17.62 gBL (power factor)9.5 T/mXmax (maximum displacement)1.5 mmCms (elasticity of the suspension)0.01 mm/NSd (membrane area)350.1 cm2Weight3,698 kg
