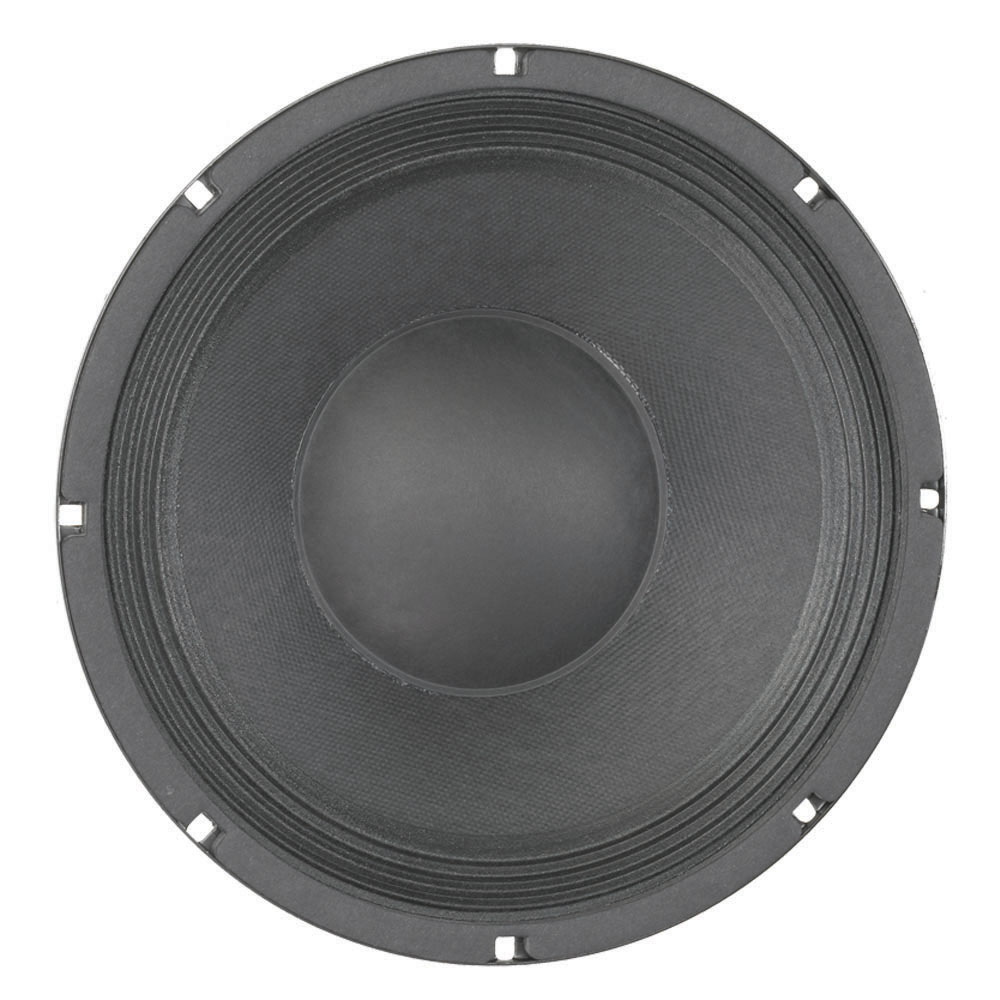

Product typeLoudspeaker ChassisTypePANominal Diameter10 ", 254 mmVoice Coil2 ", 50.8 mmOverall diameter256.8 mmPitch Circle Diameter243.8 mmCut- out Measurement231.8 mmDiameter of fixing holes5.7 mmDepth101 mmNominal Impedance8 Ohm(s)Nominal Load Capacity250 Wmaximum rated load500 WSensitivity (1 W / 1 m)97 dBFrequency response51 - 3800 HzVoice Coil MaterialAluminumMagnetFerriteDepth of the magnetic gap7.92 mmThiele & Small ParameterFs (Resonance Frequency)53 HzRe (DC resistance)5.75 Ohm(s)Qms (mechanical quality)8.14Le (inductance of the voice coil)0.67 mHQes (electrical quality)0.52Qts (overall quality)0.49Vas (equivalent volume)60.1Mms (moving mass)25 gBL (power factor)9.6 T/mXmax (maximum displacement)3 mmCms (elasticity of the suspension)0.36 mm/NSd (membrane area)344.9 cm2Weight3,413 kg
