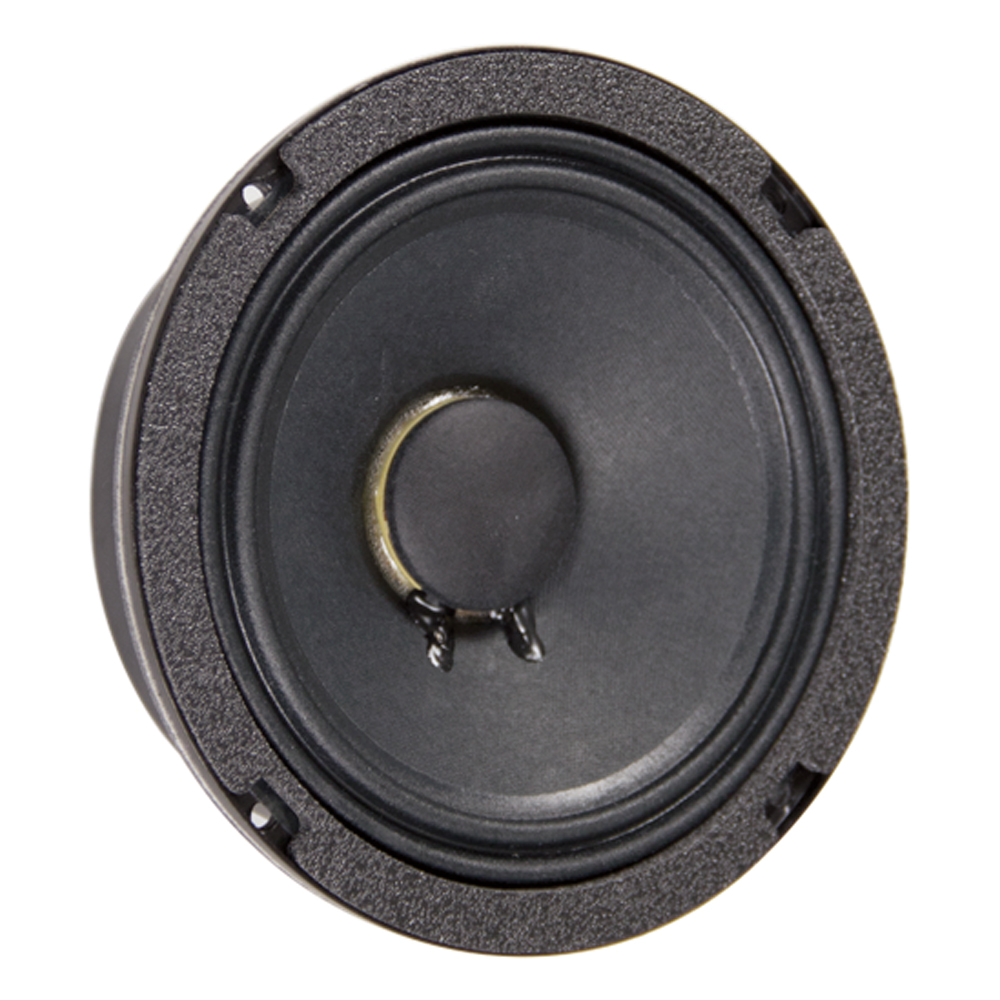

Eminence Alpha 6 CBMRA - 6.5" Speaker 100 W 8 Ohms

From the high-performance and highvalue American Standard series, the EA6CBMRA is a 100 watt, 6.5” mid/woofer with a usable frequency range of 400Hz to 5kHz. The sealed, stamped steel basket eliminates the need for separate sub-enclosures. The EA6CBMRA is perfect for pro audio enclosures or cars while keeping acoustic integration with your system simple.

Hmotnosť

100,45

81,67 € bez DPH

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

Product typeLoudspeaker ChassisTypePANominal Diameter6.5 ", 165.1 mmVoice Coil1.5 ", 38.1 mmOverall diameter167.39 mmPitch Circle Diameter153.9 mmCut- out Measurement144.53 mmDiameter of fixing holes5.48 mmDepth55.88 mmNominal Impedance8 Ohm(s)Nominal Load Capacity100 WSensitivity (1 W / 1 m)97.8 dBFrequency response400 - 5000 HzVoice Coil MaterialcopperMagnetFerriteDepth of the magnetic gap6.35 mmThiele & Small ParameterFs (Resonance Frequency)406.98 HzRe (DC resistance)5.26 Ohm(s)Qms (mechanical quality)6.04Le (inductance of the voice coil)0.38 mHQes (electrical quality)1.74Qts (overall quality)1.35Vas (equivalent volume)0.45Mms (moving mass)8 gBL (power factor)7.86 T/mXmax (maximum displacement)1.5 mmCms (elasticity of the suspension)0.02 mm/NSd (membrane area)126.7 cm2Weight1,848 kg
