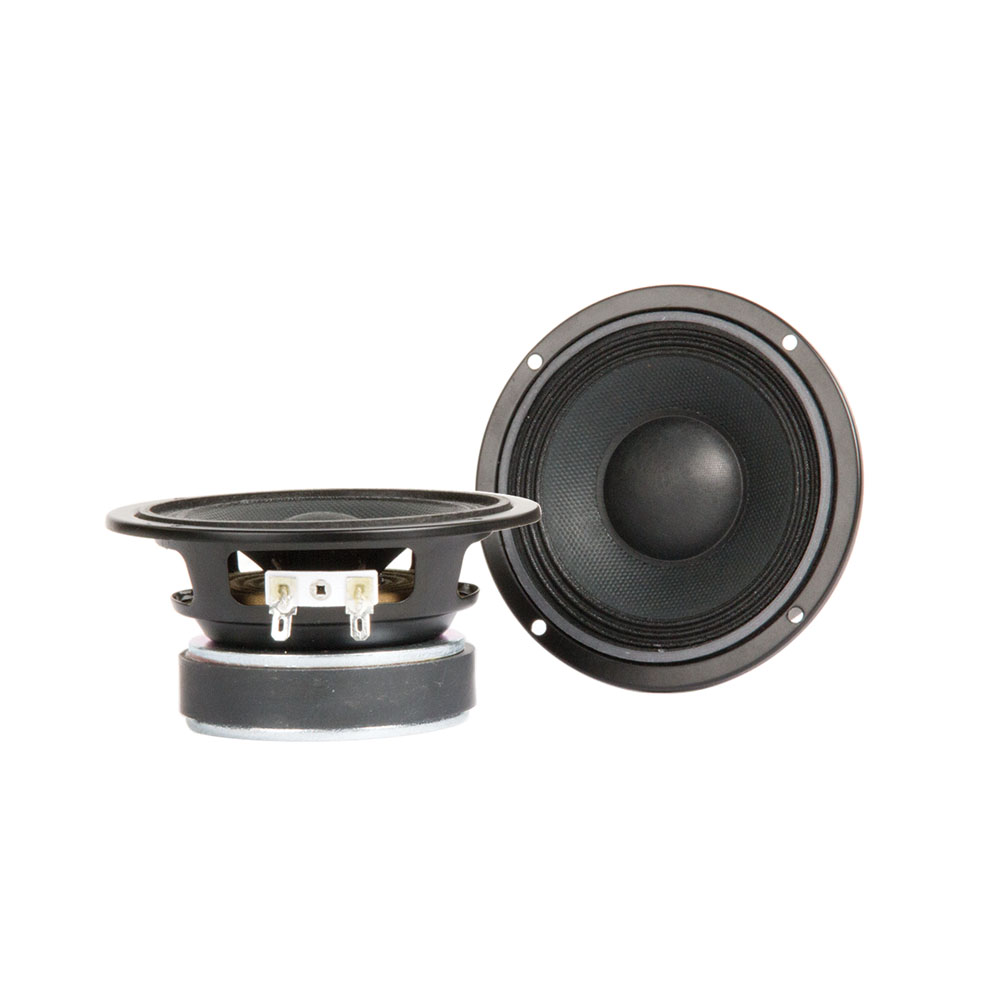

Eminence ALPHA 4 C - 4" Driver 110 W 4 Ohms

Perfectly suited for line arrays, car doors and side panels, and other tight fitting applications, the Alpha 4 is a very versatile 110 watt driver that can be used full range, as a midbass, or as a midrange. They can be stacked by themselves in a column for vocal applications, or in conjunction with a tweeter and a sub for compact, high performance PA or MI applications.

31,37

25,50 € bez DPH

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

Product typeLoudspeaker ChassisTypePANominal Diameter4 ", 102 mmVoice Coil1 ", 25 mmOverall diameter116.1 mmPitch Circle Diameter3.8 mmCut- out Measurement108 mmDiameter of fixing holes3.7 mmDepth58.7 mmNominal Impedance4 Ohm(s)Nominal Load Capacity55 Wmaximum rated load110 WSensitivity (1 W / 1 m)88 dBFrequency response105 - 10000 HzVoice Coil MaterialcopperMagnetFerriteThiele & Small ParameterFs (Resonance Frequency)120 HzRe (DC resistance)3.42 Ohm(s)Qms (mechanical quality)6.41Le (inductance of the voice coil)0.18 mHQes (electrical quality)0.7Qts (overall quality)0.63Vas (equivalent volume)1.76Mms (moving mass)5 gBL (power factor)4.12 T/mXmax (maximum displacement)2.6 mmCms (elasticity of the suspension)0.38 mm/NSd (membrane area)57.7 cm2Weight0.68 kg
