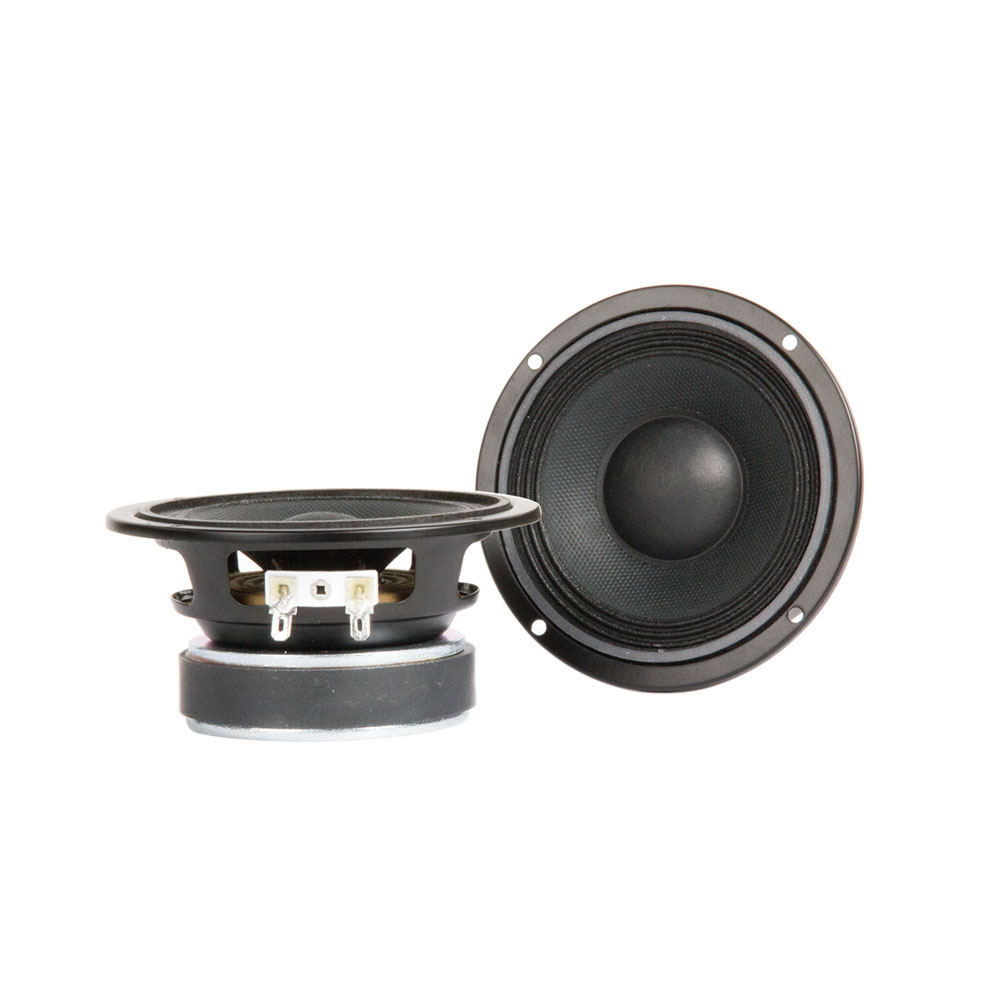

Eminence ALPHA 4 A - 4" Driver 110 W 8 Ohms

Perfectly suited for line arrays, car doors and side panels, and other tight fitting applications, the Alpha 4 is a very versatile 110 watt driver that can be used full range, as a midbass, or as a midrange. They can be stacked by themselves in a column for vocal applications, or in conjunction with a tweeter and a sub for compact, high performance PA or MI applications.

31,37

25,50 € bez DPH

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

Product typeLoudspeaker ChassisTypePANominal Diameter4 ", 102 mmVoice Coil1 ", 25 mmOverall diameter116.1 mmPitch Circle Diameter108 mmCut- out Measurement95.8 mmDiameter of fixing holes3.8 mmDepth58.7 mmNominal Impedance8 Ohm(s)Nominal Load Capacity55 Wmaximum rated load110 WSensitivity (1 W / 1 m)88 dBFrequency response105 - 10000 HzVoice Coil MaterialcopperMagnetFerriteThiele & Small ParameterFs (Resonance Frequency)123 HzRe (DC resistance)6.73 Ohm(s)Qms (mechanical quality)6.83Le (inductance of the voice coil)0.28 mHQes (electrical quality)0.84Qts (overall quality)0.75Vas (equivalent volume)1.94Mms (moving mass)4 gBL (power factor)4.94 T/mXmax (maximum displacement)2.6 mmCms (elasticity of the suspension)0.42 mm/NSd (membrane area)57.7 cm2Weight0,68 kg
