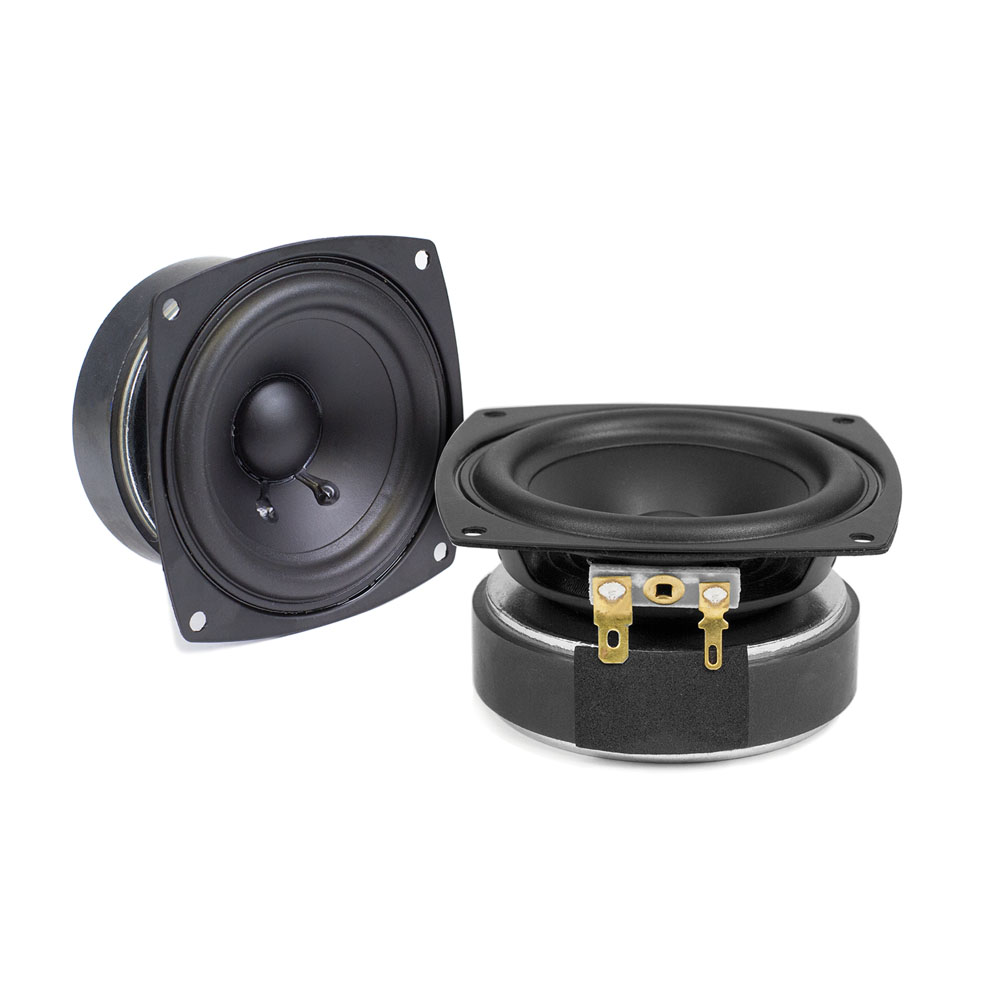

Eminence ALPHA 3 A - 3" Driver 60 W 8 Ohms

The Eminence Alpha 3-8 is a truly versatile compact fullrange driver perfectly suited for tight fitting pro audio line array and column array applications. With a program power rating of 60 watts, this 3” driver utilizes an 8.3 oz ferrite magnet in conjunction with an internal neodymium bucking magnet for increased sensitivity and extends the response out to 20kHz. The highly pressed cone sandwiches paper with a layer of water-resistant polypropylene for increased stiffness and lower distortion.

41,82

34,- € bez DPH

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

Product typeLoudspeaker ChassisTypePANominal Diameter3 ", 76 mmVoice Coil0.79 ", 20 mmOverall diameter101.1 mmPitch Circle Diameter92.1 mmCut- out Measurement77.2 mmDiameter of fixing holes4.1 mmDepth44.6 mmNominal Impedance8 Ohm(s)Nominal Load Capacity30 Wmaximum rated load60 WSensitivity (1 W / 1 m)88.6 dBFrequency response150 - 20000 HzVoice Coil MaterialcopperMagnetFerriteThiele & Small ParameterFs (Resonance Frequency)118 HzRe (DC resistance)5.12 Ohm(s)Qms (mechanical quality)7.94Le (inductance of the voice coil)0.11 mHQes (electrical quality)0.53Qts (overall quality)0.5Vas (equivalent volume)0.95Mms (moving mass)2 gBL (power factor)3.93 T/mXmax (maximum displacement)2.4 mmCms (elasticity of the suspension)0.84 mm/NSd (membrane area)28.6 cm2Weight0,68 kg
