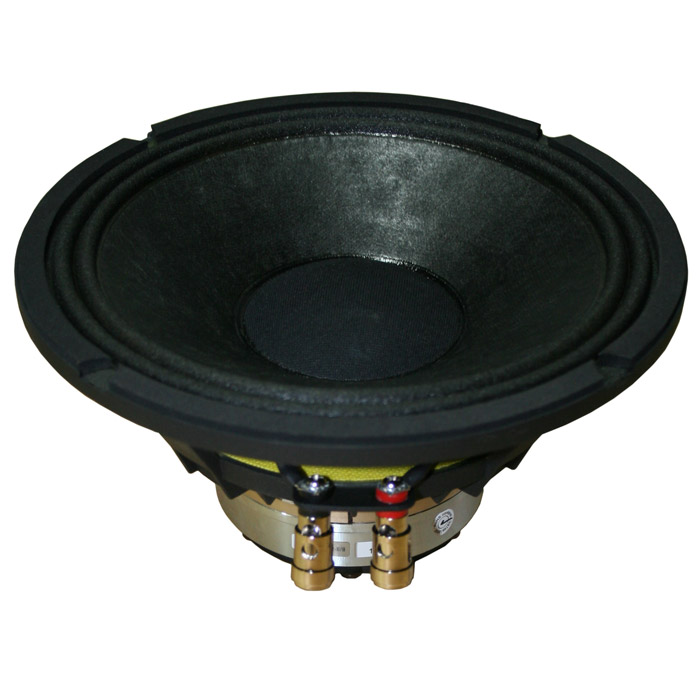

Product typeLoudspeaker ChassisTypePALoudspeaker dimensions8 "Loudspeaker dimensions (mm)203 mmOverall diameter205 mmPitch Circle Diameter195 - 197 mmCut- out Measurement182 mmMounting holes4Diameter of fixing holes6 mmTotal depth115 mmWeight2 kgNominal impedance8 Ohm(s)RMS200 WSensitivity (1 W / 1 m)95.5 dBFrequency response70 - 20.000 HzWoofer characteristicsWoofer voice coil2 "Woofer voice coil (mm)52 mmVoice Coil Material WoofercopperWoofer magnetNeodymiumMagnetic gap depth Woofer7 mmThiele & Small ParameterFs (Resonance Frequency)87.5 HzRe (DC resistance)5.4 Ohm(s)Qms (mechanical quality)5.28Qes (electrical quality)0.3Qts (overall quality)0.29Vas (equivalent volume)10.08 lMms (moving mass)18.3 gBL (power factor)13.44 T/mXmax (maximum displacement)4 mmCms (elasticity of the suspension)0.18 mm/NSd (membrane area)200 cm2HF Driver characteristicsHF driver voice coil1.75 "HF Driver Voice Coil44.4 mmNominal Impedance HF driver8 Ohm(s)Nominal Load HF driver80 WMaximum Load HF driver450 WSensitivity HF driver (1 W / 1 m)112 dBFrequency range HF driver1.500 - 20.000 Hzrecommended crossover frequency HF driver1.500 HzVoice Coil Carrier HF driverKaptonDiaphragm material HF driverpolyesterHF driver magnetNeodymiumDispersion (H x V)90
