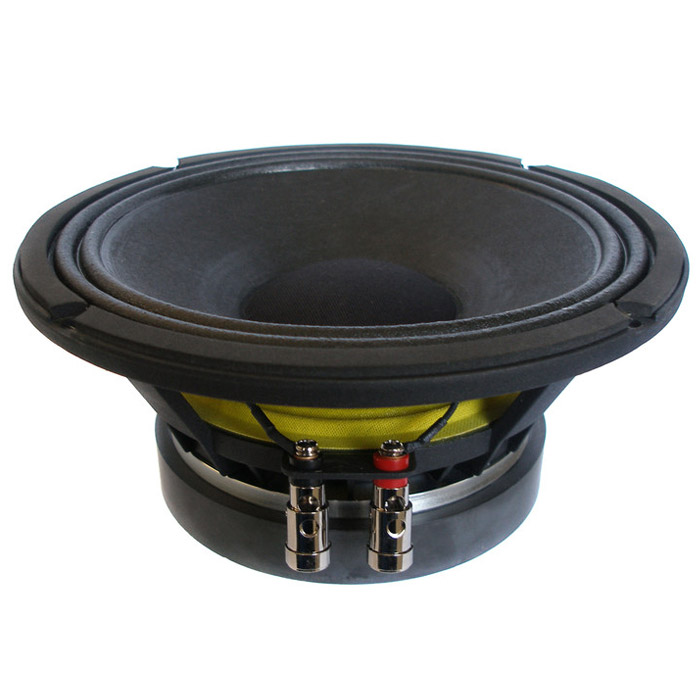

TypecoaxialLoudspeaker dimensions8 "Loudspeaker dimensions (mm)203 mmOverall diameter205 mmPitch Circle Diameter196 mmCut- out Measurement182 mmMounting holes4Diameter of fixing holes6 mmTotal depth111 mmWeight3 kgNominal impedance8 Ohm(s)RMS200 WSensitivity (1 W / 1 m)93 dBFrequency response70 - 20.000 HzWoofer characteristicsWoofer voice coil2 "Woofer voice coil (mm)51 mmVoice Coil Material WoofercopperWoofer magnetFerriteMagnetic gap depth Woofer6.5 mmThiele & Small ParameterFs (Resonance Frequency)79.1 HzRe (DC resistance)5.4 Ohm(s)Qms (mechanical quality)4.85Le (inductance of the voice coil)0.48 mHQes (electrical quality)0.61Qts (overall quality)0.52Vas (equivalent volume)10.18 lMms (moving mass)18.3 gBL (power factor)9.95 T/mXmax (maximum displacement)4.25 mmCms (elasticity of the suspension)0.18 mm/NSd (membrane area)201 cm2HF Driver characteristicsHF driver voice coil1.75 "HF Driver Voice Coil44.4 mmNominal Impedance HF driver8 Ohm(s)Nominal Load HF driver80 WMaximum Load HF driver300 WSensitivity HF driver (1 W / 1 m)109 dBFrequency range HF driver1.000 - 20.000 Hzrecommended crossover frequency HF driver1.500 HzVoice Coil Carrier HF driverKaptonDiaphragm material HF driverpolyesterHF driver magnetceramicDispersion (H x V)90
