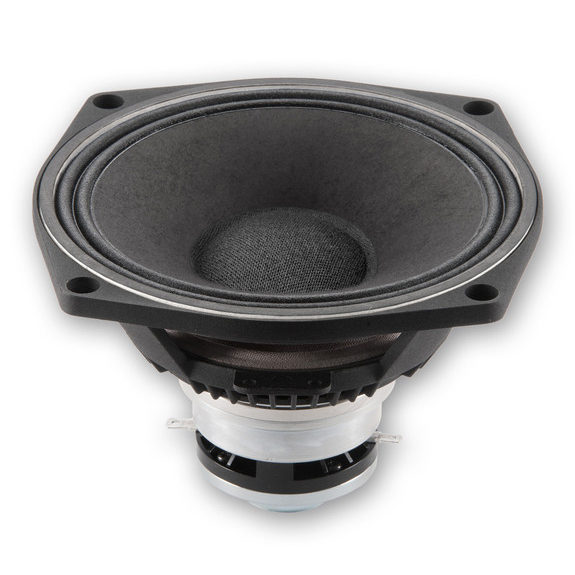

BMS 6 CN 160 L - 6" stredný basový reproduktor 130 W 8 Ohmov

• Typ: PA
• Rozmery reproduktora: 6 "
• Rozmery reproduktora (mm): 152,4 mm
• Celkový priemer: 162 mm
• Priemer kruhu: 172 mm
• Výrez: 146 mm
• Montážne otvory: 4
• Priemer upevňovacích otvorov: 5,3 mm
• Celková hĺbka: 111 mm
• Váha: 1,18 kg
• Nominálna impedancia: 8 Ohmov
• RMS: 130 W
• Citlivosť (1 W / 1 m): 93 dB
• Frekvenčná odozva: 80 - 20 000 Hz

NA STIAHNUTIE KATALÓG REPRODUKTOROV BMS:
BMS CATALOGUE

6" Bass Midrange Speaker 130 W 8 Ohms

Na objednávku

1,18
Hmotnosť

419,02
340,67 € bez DPH
Pridať
do ponuky
Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

Product typeLoudspeaker ChassisTypePALoudspeaker dimensions6 "Loudspeaker dimensions (mm)152.4 mmOverall diameter162 mmPitch Circle Diameter172 mmCut- out Measurement146 mmMounting holes4Diameter of fixing holes5.3 mmTotal depth111 mmWeight1,18 kgNominal impedance8 Ohm(s)RMS130 WSensitivity (1 W / 1 m)93 dBFrequency response80 - 20.000 HzWoofer characteristicsWoofer voice coil1.5 "Woofer voice coil (mm)38 mmVoice Coil Material WoofercopperWoofer magnetNeodymiumMagnetic gap depth Woofer5 mmThiele & Small ParameterFs (Resonance Frequency)79 HzRe (DC resistance)6.85 Ohm(s)Qms (mechanical quality)3.3Le (inductance of the voice coil)0.51 mHQes (electrical quality)0.38Qts (overall quality)0.34Vas (equivalent volume)8.9 lMms (moving mass)11 gBL (power factor)10 T/mXmax (maximum displacement)5 mmCms (elasticity of the suspension)0.37 mm/NSd (membrane area)132 cm2HF Driver characteristicsHF driver voice coil1 "HF Driver Voice Coil25.4 mmNominal Impedance HF driver8 Ohm(s)Nominal Load HF driver25 WMaximum Load HF driver200 WSensitivity HF driver (1 W / 1 m)110 dBFrequency range HF driver1.200 - 20.000 Hzrecommended crossover frequency HF driver1.500 HzVoice Coil Carrier HF driverKaptonDiaphragm material HF driverpolyesterHF driver magnetNeodymiumDispersion (H x V)90

Podobné produkty:

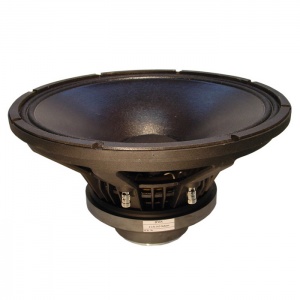

BMS 15 C 362 L - 15" Coaxial Speaker 500 W...
