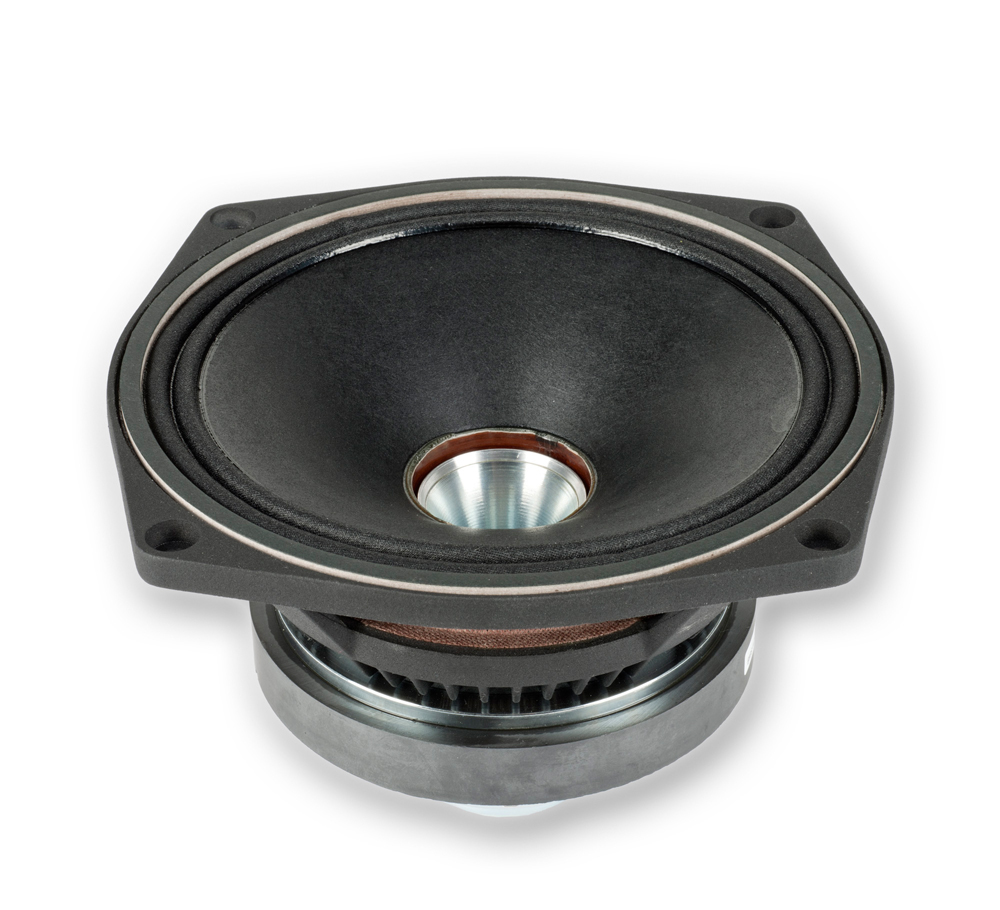

Product typeLoudspeaker ChassisTypePALoudspeaker dimensions6 "Loudspeaker dimensions (mm)152 mmOverall diameter162 x 162 mmPitch Circle Diameter172 mmCut- out Measurement146 mmMounting holes4Diameter of fixing holes5.3 mmTotal depth109 mmWeight1,7 kgNominal impedance16 Ohm(s)RMS130 WSensitivity (1 W / 1 m)93 dBFrequency response80 - 20000 HzWoofer characteristicsWoofer voice coil1.5 "Woofer voice coil (mm)38 mmVoice Coil Material WoofercopperWoofer magnetNeodymiumMagnetic gap depth Woofer5 mmThiele & Small ParameterFs (Resonance Frequency)88.4 HzRe (DC resistance)11.9 Ohm(s)Qms (mechanical quality)3.9Qes (electrical quality)0.53Qts (overall quality)0.46Vas (equivalent volume)7.6 lMms (moving mass)10 gBL (power factor)11.36 T/mXmax (maximum displacement)5 mmCms (elasticity of the suspension)0.31 mm/NSd (membrane area)132 cm2HF Driver characteristicsHF driver voice coil1 "HF Driver Voice Coil25.4 mmNominal Impedance HF driver16 Ohm(s)Nominal Load HF driver25 WMaximum Load HF driver200 WSensitivity HF driver (1 W / 1 m)110 dBFrequency range HF driver1200 - 20000 Hzrecommended crossover frequency HF driver> 1500 HzVoice Coil Carrier HF driverKaptonDiaphragm material HF driverpolyesterHF driver magnetFerrite
